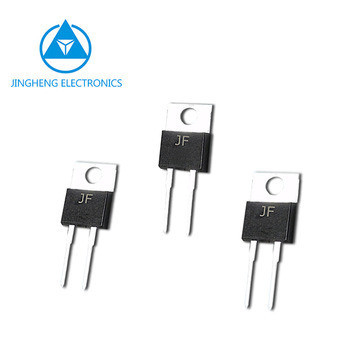

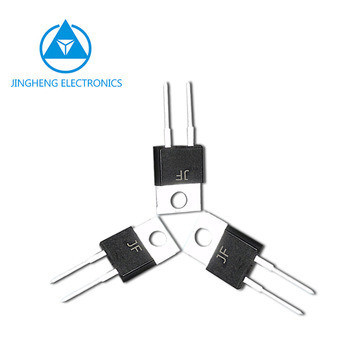

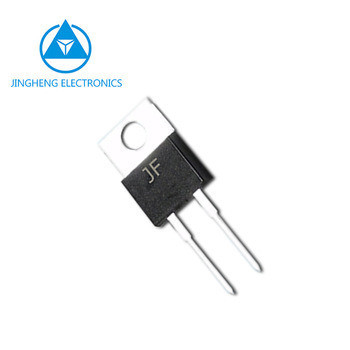

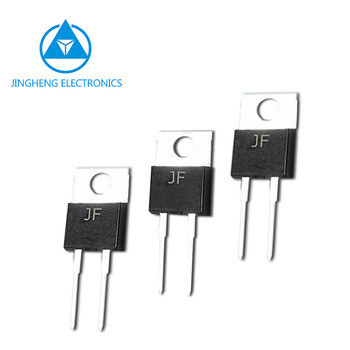

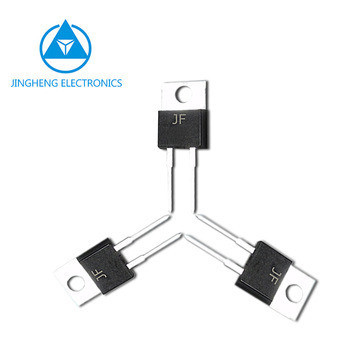

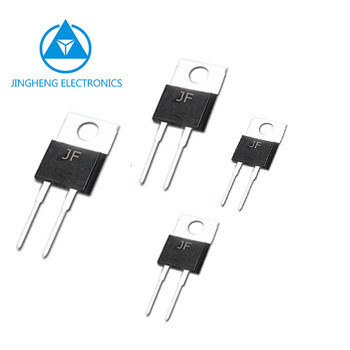

MUR1560 Super Fast Rectifier Diode with TO-220AC Case 8.000kg Package Gross Weight
Product Details:
| Place of Origin: | China |
| Certification: | ISO9001:2015, ISO14001:2015, IATF16949 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3,000 Pieces |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, PayPal |
| Supply Ability: | 10000000000piece/Year |
|
Detail Information |
|||
| Model NO.: | MUR1560 | Luminous Intensity: | None Luminance |
|---|---|---|---|
| Color: | None Luminance | Structure: | Planar |
| Material: | Silicon | Transport Package: | Tube |
| Specification: | High Power Package | Trademark: | JF |
| Origin: | China | HS Code: | 85411000 |
| Supply Ability: | 10000000000piece/Year | Package Size: | 20.00cm * 40.00cm * 15.00cm |
| Package Gross Weight: | 8.000kg | ||
Product Description
SUPER FAST RECTIFIER DIODES
Electronics Component
Part Number: MUR1520/MUR1560/MUR15120
Major Parameter:
| Type | VRRM | IF | IR(25ºC) | IR(100ºC) | IR(125ºC) | VF | Trr | Outline |
| V | A | μA | uA | uA | V | nS | ||
| MUR1520 | 200 | 15.0 | 5.0 | 50 | 1.05 | 25 | TO-220AC | |
| MUR1560 | 600 | 15.0 | 5.0 | 50 | 1.70 | 40 | ||
| MURS1560 | 600 | 15.0 | 5.0 | 50 | 2.50 | 35 | ||
| MUR15120 | 1200 | 15.0 | 5.0 | 50 | 3.20 | 40 | ||
| MURF1520 | 200 | 15.0 | 5.0 | 50 | 1.00 | 35 | ITO-220AC | |
| MURF1560 | 600 | 15.0 | 5.0 | 50 | 1.50 | 50 | ||
| MURFS1560 | 600 | 15.0 | 5.0 | 50 | 2.50 | 35 | ||
| MURF15120 | 1200 | 15.0 | 5.0 | 50 | 3.20 | 40 |
Package: TO-220AC
Manufacturer: Jinan Jingheng Electronics Co., Ltd.
Features:
· Plastic package has Underwriters Laboratory Flammability Classification 94V-0
· Single rectifier construction
· High surge capability
· For use in low voltage ,high frequency inverters, free wheeling ,and polarity protection applications
· High temperature soldering guaranteed:2 0 C/10 seconds, 0.25"(6.35mm)from case
· Fast switching for high efficiency
· Low forward voltage drop
· Component in accordance to RoHS 2002 95 EC and WEEE 2002 96 EC
Application:
Used in power supply, lighting, auto, home appliance field
