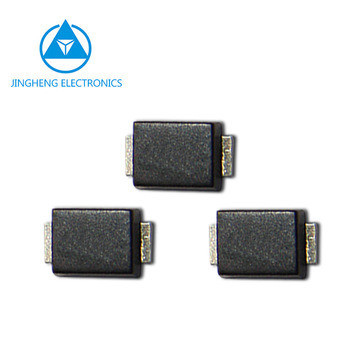

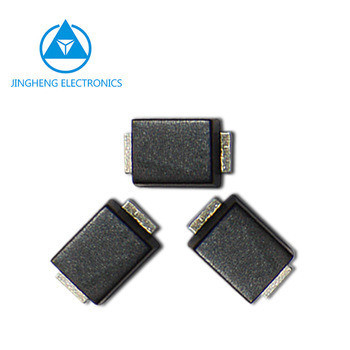

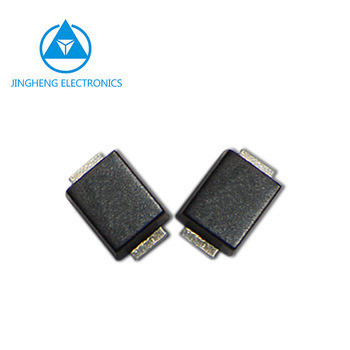

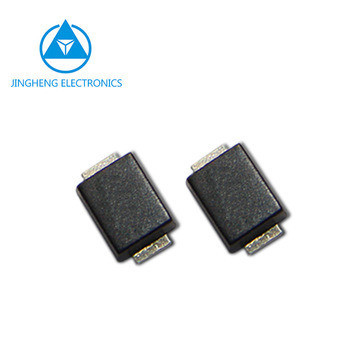

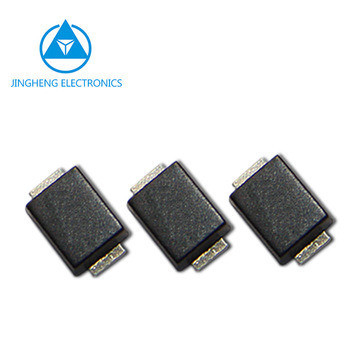

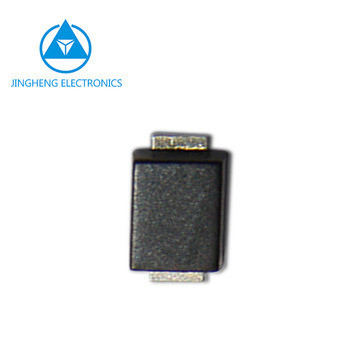

SS52F/SS54F/SS56F/SS510F/SS515F/SS520F/SS525F SCHOTTKY DIODE WITH LOW VF FORWARD
Product Details:
| Place of Origin: | China |
| Certification: | ISO9001:2015, ISO14001:2015, IATF16949 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3,000 Pieces |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, PayPal |
| Supply Ability: | 10000000000piece/Year |
|
Detail Information |
|||
| Model NO.: | SS520F | Structure: | Alloy |
|---|---|---|---|
| Material: | Silicon | VOLTAGE: | 20-250V |
| CURRENT: | 5A | VF: | 055-0.95 |
| Transport Package: | Tape Reel | Specification: | LOW VF FORWARD |
| Trademark: | JF | Origin: | China |
| HS Code: | 85411000 | Supply Ability: | 10000000000piece/Year |
| Package Size: | 5.58cm * 1.48cm * 0.38cm | Package Gross Weight: | 0.002kg |
Product Description
SCHOTTKY BARRIER RECTIFIER DIODES
Electronics Component
Part Number: SS52F THRU SS525F
Major Parameter:
| Type | VRRM | IF | IR(25ºC) | IR(100ºC) | IR(125ºC) | VF | HBM | Tj | Outline |
| V | A | uA | mA | mA | V | KV | ºC | ||
| SS52F | 20 | 5 | 100 | 5 | 0.55 | 8 | 150 | SMAF | |
| SS54F | 40 | 5 | 100 | 5 | 0.55 | 8 | 150 | ||
| SS56F | 60 | 5 | 100 | 5 | 0.70 | 8 | 150 | ||
| SS510F | 100 | 5 | 20 | 3 | 0.85 | 8 | 150 | ||
| SS515F | 150 | 5 | 20 | 3 | 0.90 | 8 | 150 | ||
| SS520F | 200 | 5 | 20 | 3 | 0.95 | 8 | 150 | ||
| SS525F | 250 | 5 | 20 | 3 | 0.95 | 8 | 150 |
Brand: JF
Package: SMAF
Manufacturer: Jinan Jingheng Electronics Co., Ltd.
Features:
· Metal silicon junction, majority carrier conduction
· Guard ring for overvoltage protection
· Low power loss, high effciency
· High surge capability, low forward voltage drop
· Surface mount outline
Application:
Used in power supply, lighting, auto, home appliance field
