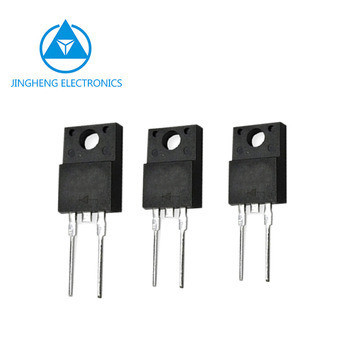

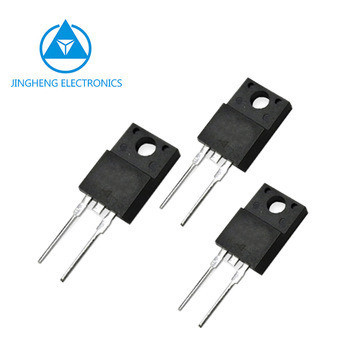

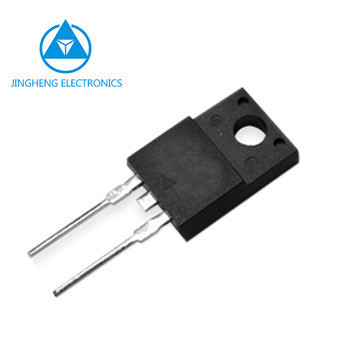

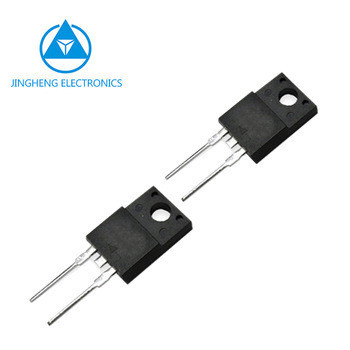

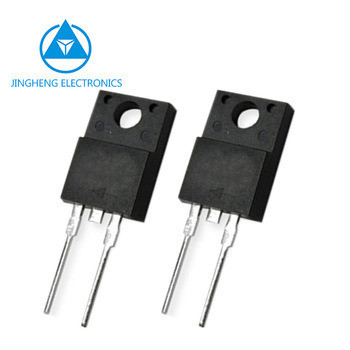

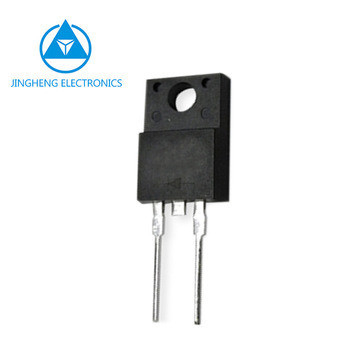

SKY SRF10200 Series ITO-220AC Package Schottky Barrier Rectifier Diode for Your Benefit
Product Details:
| Place of Origin: | China |
| Certification: | ISO9001:2015, ISO14001:2015, IATF16949 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3,000 Pieces |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, PayPal |
| Supply Ability: | 10000000000piece/Year |
|
Detail Information |
|||
| Model NO.: | SRF10200 | Luminous Intensity: | NO LIGHT |
|---|---|---|---|
| Color: | NO LIGHT | Structure: | Alloy |
| Material: | Silicon | Voltage: | 20-200v |
| Current: | 10A | Type: | SKY |
| VF: | 0.60-0.95 | Transport Package: | Tube |
| Specification: | High Power Package | Trademark: | JF, JH |
| Origin: | China | HS Code: | 85411000 |
| Supply Ability: | 10000000000piece/Year | Package Size: | 5.58cm * 1.48cm * 0.38cm |
| Package Gross Weight: | 0.002kg | ||
Product Description
LOW VF SCHOTTKY BARRIER RECTIFIER DIODES
Electronics Component
Part Number: SRF1020 THRU SRF10200
Major Parameter:
| Type | VRRM | IF | IR(25ºC) | IR(100ºC) | IR(125ºC) | VF | HBM | Tj | Outline |
| V | A | uA | mA | mA | V | KV | ºC | ||
| SRF1020 | 20 | 10 | 100 | 5 | 0.60 | 8 | 150 | ITO-220AC Single chip | |
| SRF1040 | 40 | 10 | 100 | 5 | 0.60 | 8 | 150 | ||
| SRF1045 | 45 | 10 | 100 | 5 | 0.60 | 8 | 150 | ||
| SRF1060 | 60 | 10 | 100 | 5 | 0.75 | 8 | 150 | ||
| SRF10100 | 100 | 10 | 30 | 3 | 0.85 | 8 | 150 | ||
| SRF10150 | 150 | 10 | 30 | 3 | 0.90 | 8 | 150 | ||
| SRF10200 | 200 | 10 | 30 | 3 | 0.95 | 8 | 150 |
Package: ITO-220AC
Manufacturer: Jinan Jingheng Electronics Co., Ltd.
Features:
· Metal silicon junction, majority carrier conduction
· Guard ring for overvoltage protection
Application:
Used in power supply, lighting, auto, home appliance field
