Silicon SR520/SR540/SR560/SR5100/SR5150/SR5200 Schottky Barrier Rectifier Diode IF 5A
Product Details:
| Place of Origin: | China |
| Certification: | ISO9001:2015, ISO14001:2015, IATF16949 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3,000 Pieces |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, PayPal |
| Supply Ability: | 10000000000piece/Year |
|
Detail Information |
|||
| Model NO.: | SR5200 | Luminous Intensity: | None Luminance |
|---|---|---|---|
| Color: | None Luminance | Structure: | Alloy |
| Material: | Silicon | IF: | 5A |
| VRRM: | 20V-200V | Transport Package: | Tube |
| Specification: | High Power Package | Trademark: | JF, JH |
| Origin: | China | HS Code: | 85411000 |
| Supply Ability: | 10000000000piece/Year | Package Size: | 20.00cm * 40.00cm * 15.00cm |
| Package Gross Weight: | 8.000kg | ||
Product Description
LOW VF SCHOTTKY BARRIER RECTIFIER DIODES
Electronics Component
Part Number: SR520 THRU SR5200
(SR520/SR540/SR560/SR5100/SR5150/SR5200)
Major Parameter:
| Type | VRRM | IF | IR(25ºC) | IR(100ºC) | IR(125ºC) | VF | HBM | Tj | Outline |
| V | A | uA | mA | mA | V | KV | ºC | ||
| SR520 | 20 | 5 | 100 | 5 | 0.55 | 8 | 150 | TO-220AC Single chip | |
| SR540 | 40 | 5 | 100 | 5 | 0.55 | 8 | 150 | ||
| SR560 | 60 | 5 | 100 | 5 | 0.70 | 8 | 150 | ||
| SR5100 | 100 | 5 | 20 | 5 | 0.85 | 8 | 150 | ||
| SR5150 | 150 | 5 | 20 | 5 | 0.90 | 8 | 150 | ||
| SR5200 | 200 | 5 | 20 | 5 | 0.95 | 8 | 150 |

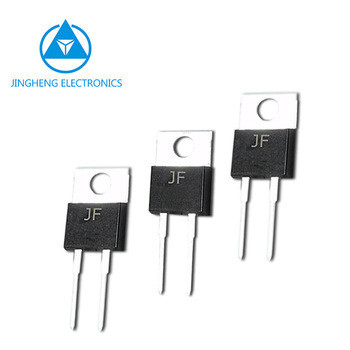

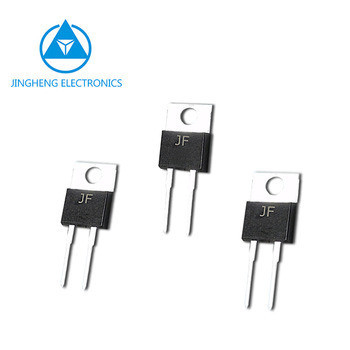

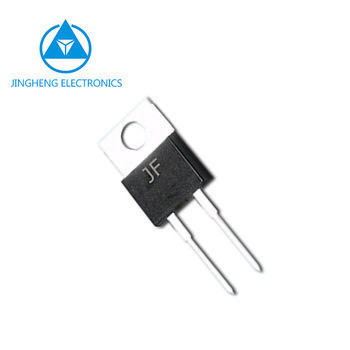

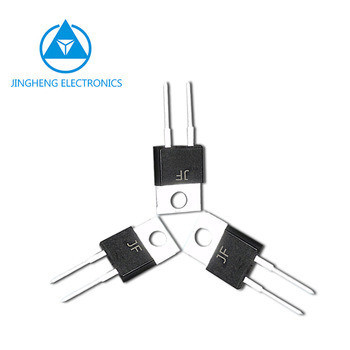

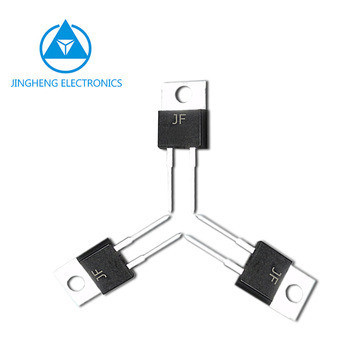

Package: TO-220AC
Manufacturer: Jinan Jingheng Electronics Co., Ltd.
Features:
· Metal silicon junction, majority carrier conduction
· Guard ring for overvoltage protection
Application:
Used in power supply, lighting, auto, home appliance field
