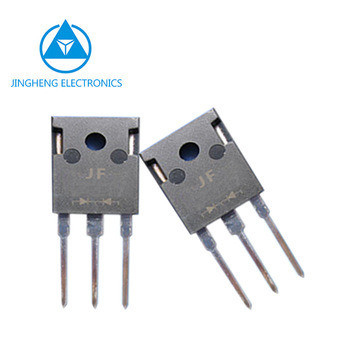

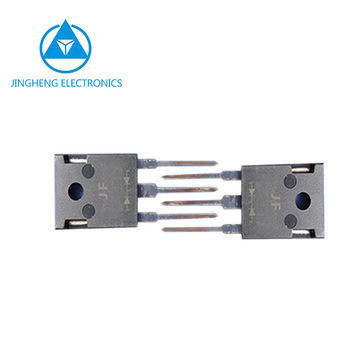

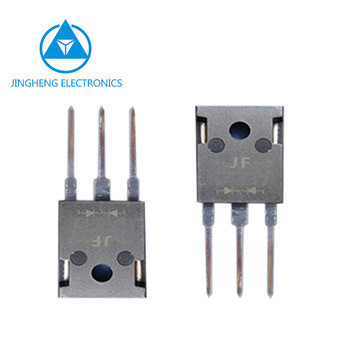

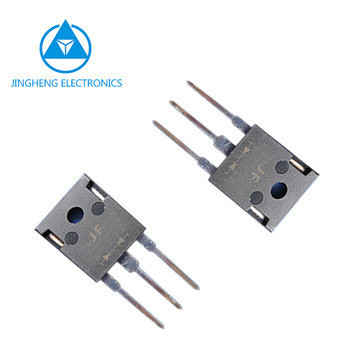

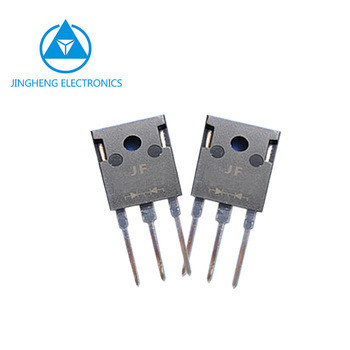

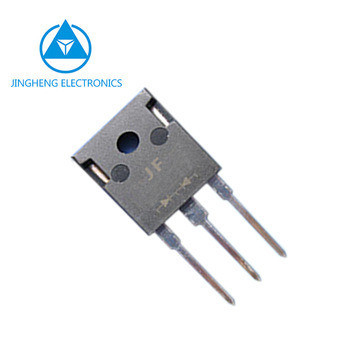

650V Silicon Carbide Schottky Diode in TO-247AB Package for Reliability Power Supplies
Product Details:
| Place of Origin: | China |
| Certification: | ISO9001:2015, ISO14001:2015, IATF16949 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3,000 Pieces |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, PayPal |
| Supply Ability: | 10000000000piece/Year |
|
Detail Information |
|||
| Model NO.: | SC2065PT | Luminous Intensity: | NO LIGHT |
|---|---|---|---|
| Color: | NO LIGHT | Structure: | SIC |
| Material: | SIC | Current: | 20A |
| Voltage: | 650v | Pacakge: | TO-247AB |
| LOGO: | JF OR JH | Transport Package: | Tube |
| Specification: | High Power Package | Trademark: | JF |
| Origin: | China | HS Code: | 85411000 |
| Supply Ability: | 10000000000piece/Year | Package Size: | 5.58cm * 1.48cm * 0.38cm |
| Package Gross Weight: | 0.002kg | ||
Product Description
SILICON CARBIDE SCHOTTKY DIODE
Electronics Component
Part Number: SC2065PT
Major Parameter:
| Type | VRRM | IF | IR(25ºC) | IR(175ºC) | VF(25ºC) | VF(175ºC) | Tj | Outline |
| V | A | μA | μA | V | V | ºC | ||
| SC2065PT | 650 | 2×10 | 5 | 50 | 1.65 | 2.3 | 175 | TO-247AB |
| SC3065PT | 650 | 2×15 | 5 | 50 | 1.65 | 2.3 | 175 | |
| SC4065PT | 650 | 2×20 | 5 | 50 | 1.65 | 2.3 | 175 |
Brand: JF logo
Package: TO-247AB
Manufacturer: Jinan Jingheng Electronics Co., Ltd.
Features:
· Plastic package has Underwriters Laboratory Flammability Classification 94V-0
· Low Reverse Leakage Current
· High surge capability
· High temperature soldering guaranteed:2 0 C/10 seconds, 0.25"(6.35mm)from case
· Fast switching for high efficiency
· Low forward voltage drop
· Component in accordance to RoHS 2011 65 EU
Application:
Used in power supply, lighting, auto, home appliance field
