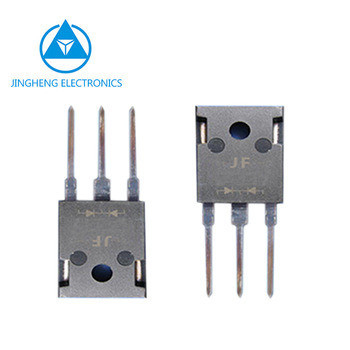

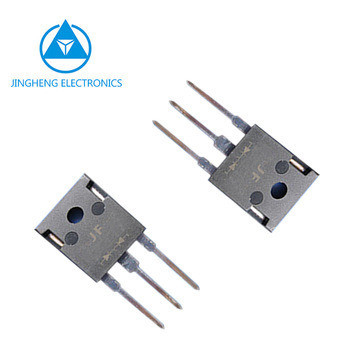

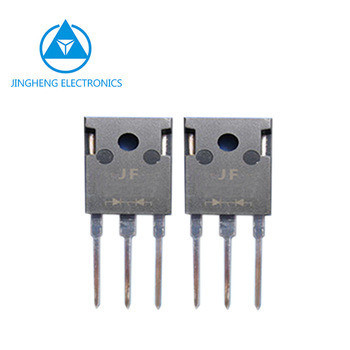

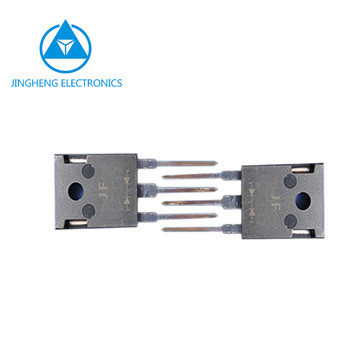

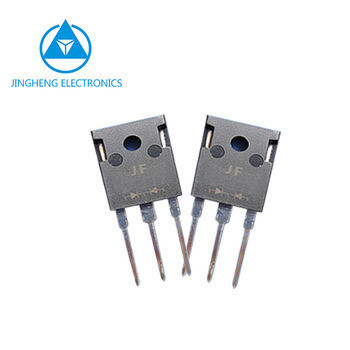

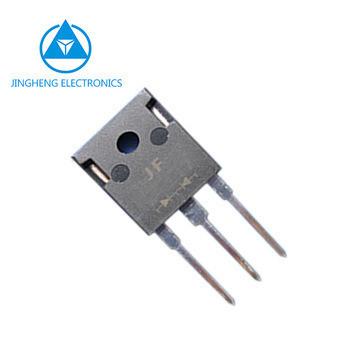

High Temperature 5A 650V VR Silicon Carbide Diode for Industrial Applications
Product Details:
| Place of Origin: | China |
| Certification: | ISO9001:2015, ISO14001:2015, IATF16949 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3,000 Pieces |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, PayPal |
| Supply Ability: | 10000000000piece/Year |
|
Detail Information |
|||
| Model NO.: | SC0565 | Luminous Intensity: | NO LIGHT |
|---|---|---|---|
| Color: | NO LIGHT | Structure: | PLASTIC |
| Material: | SIC | VR: | 650V |
| PACAKGE: | TO-247 | IF: | 5A |
| Transport Package: | Carton | Specification: | Silicon |
| Trademark: | JF | Origin: | China |
| HS Code: | 854110000 | Supply Ability: | 500000PCS/Month |
| Package Size: | 5.58cm * 1.48cm * 0.38cm | Package Gross Weight: | 0.002kg |
Product Description
SILICON CARBIDE SCHOTTKY DIODE
Electronics Component
Part Number: SC0565
Major Parameter:
| Type | VRRM | IF | IR(25ºC) | IR(175ºC) | VF(25ºC) | VF(175ºC) | Tj | Outline |
| V | A | μA | μA | V | V | ºC | ||
| SC0265 | 650 | 2 | 5 | 50 | 1.65 | 2.3 | 175 | TO-220AB: None suffix ITO-220AB: F suffix TO-263: D suffix TO-252: M suffix |
| SC0465 | 650 | 4 | 5 | 50 | 1.65 | 2.3 | 175 | |
| SC0665 | 650 | 6 | 5 | 50 | 1.65 | 2.3 | 175 | |
| SC0865 | 650 | 8 | 5 | 50 | 1.65 | 2.3 | 175 | |
| SC1065 | 650 | 10 | 5 | 50 | 1.65 | 2.3 | 175 | |
| SC1265 | 650 | 12 | 5 | 50 | 1.65 | 2.3 | 175 | |
| SC1565 | 650 | 15 | 5 | 50 | 1.65 | 2.3 | 175 | |
| SC1665 | 650 | 16 | 5 | 50 | 1.65 | 2.3 | 175 | |
| SC2065 | 650 | 20 | 5 | 50 | 1.65 | 2.3 | 175 | |
| SC1065CT | 650 | 2×5 | 5 | 50 | 1.65 | 2.3 | 175 | TO-220AB |
| SC2065CT | 650 | 2×10 | 5 | 50 | 1.65 | 2.3 | 175 |
Brand: JF logo
Manufacturer: Jinan Jingheng Electronics Co., Ltd.
Features:
· Plastic package has Underwriters Laboratory Flammability Classification 94V-0
· Low Reverse Leakage Current
· High surge capability
· High temperature soldering guaranteed:2 0 C/10 seconds, 0.25"(6.35mm)from case
· Fast switching for high efficiency
· Low forward voltage drop
· Component in accordance to RoHS 2011 65 EU
Application:
Used in power supply, lighting, auto, home appliance field
