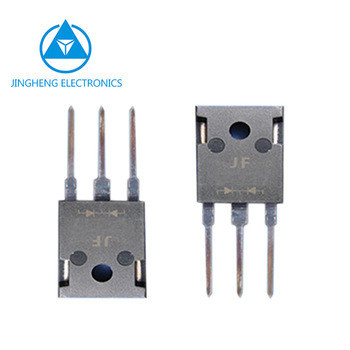

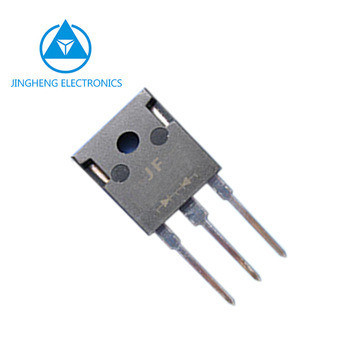

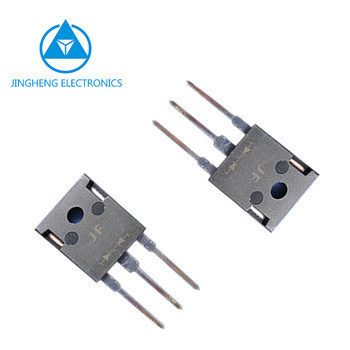

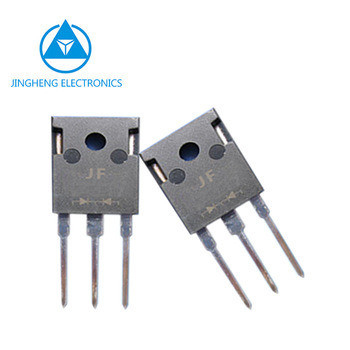

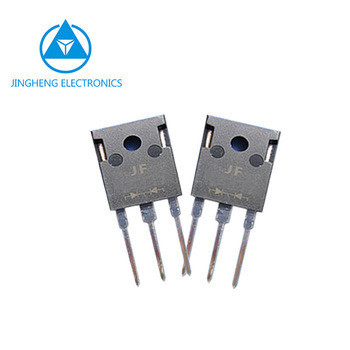

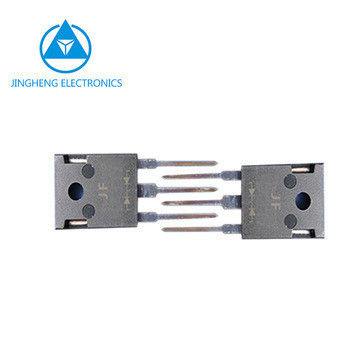

Carton Silicon Carbide Schottky Diode 20A/1200V SIC SC20120PT With TO-247AB Package
Product Details:
| Place of Origin: | China |
| Certification: | ISO9001:2015, ISO14001:2015, IATF16949 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3,000 Pieces |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, PayPal |
| Supply Ability: | 10000000000piece/Year |
|
Detail Information |
|||
| Model NO.: | SC20120PT | Material: | Silicon |
|---|---|---|---|
| Transport Package: | Carton | Specification: | Carton |
| Trademark: | JF | Origin: | China |
| HS Code: | 854110000 | Supply Ability: | 500000PCS/Month |
Product Description
SILICON CARBIDE SCHOTTKY DIODE
Electronics Component
Part Number: SC20120PT
Major Parameter:
| Type | VRRM | IF | IR(25ºC) | IR(175ºC) | VF(25ºC) | VF(175ºC) | Tj | Outline |
| V | A | μA | μA | V | V | ºC | ||
| SC20120PT | 1200 | 2×10 | 5 | 50 | 1.8 | 2.5 | 175 | TO-247AB |
| SC30120PT | 1200 | 2×15 | 5 | 50 | 1.8 | 2.5 | 175 | |
| SC40120PT | 1200 | 2×20 | 5 | 50 | 1.8 | 2.5 | 175 |
Brand: JF logo
Package: TO-247AB
Manufacturer: Jinan Jingheng Electronics Co., Ltd.
Description:
SIC Schottky Diode has no switching loss, provides improved system efficiency against Si diodes by utilizing new semiconductor material-Silicon Carbide, enables higher operating frequency, and helps increasing power density and reduction of system size/cost. Its high reliability ensures robust operation during surge or over voltage conditions.
Features:
· Max Junction Temperature 175°C
· High Surge Current Capacity
· Positive Temperature Coefficient
· Ease of Paralleling
· No Reverse Recovery
· No Forward Recovery
· High Surge Current Capacity
· Positive Temperature Coefficient
· Ease of Paralleling
· No Reverse Recovery
· No Forward Recovery
Application:
· General Purpose
· SMPS, Solar inverter, UPS
· Power Switching Circuits
