D3K608 BRIDGE RECTIFIER DIODE WITH D3K PACKAGE 100-1000V 20.00cm * 40.00cm * 15.00cm
Product Details:
| Place of Origin: | China |
| Certification: | ISO9001:2015, ISO14001:2015, IATF16949 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3,000 Pieces |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, PayPal |
| Supply Ability: | 10000000000piece/Year |
|
Detail Information |
|||
| Model NO.: | D3K608 | Structure: | Alloy |
|---|---|---|---|
| Material: | Silicon | VOLTAGE: | 100-1000V |
| Transport Package: | Carton | Specification: | BRIDGE RECTIFER DIODE |
| Trademark: | JF, JH | Origin: | China |
| HS Code: | 85411000 | Supply Ability: | 10000000000piece/Year |
| Package Size: | 20.00cm * 40.00cm * 15.00cm | Package Gross Weight: | 8.000kg |
Product Description

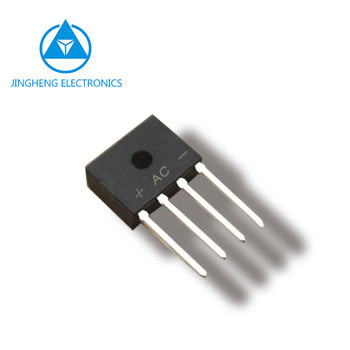

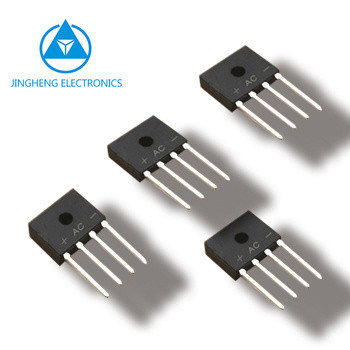

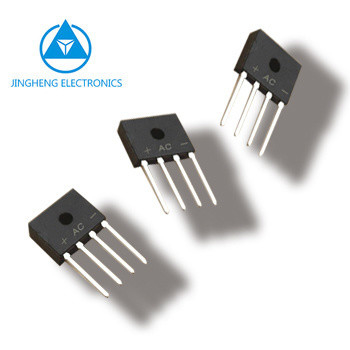

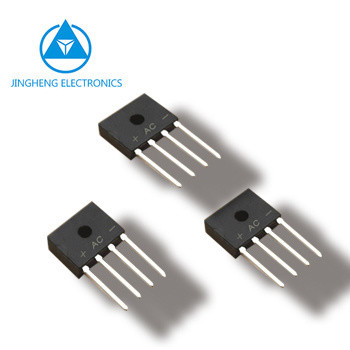

BRIDGE RECTIFIER
Electronics Component
Electronics Component
Part Number: D3K608
Major Parameter:
| Type | VRRM | IF | IR(25ºC) | IR(100ºC) | IR(125ºC) | VF | Trr | Outline |
| V | A | μA | μA | uA | V | nS | ||
| D3K606 | 600 | 6.0 | 10 | 500 | 1.1 | D3K | ||
| D3K608 | 800 | 6.0 | 10 | 500 | 1.1 | |||
| D3K610 | 1000 | 6.0 | 10 | 500 | 1.1 |
Brand: JF / JH
Package: D3K package
Manufacturer: Jinan Jingheng Electronics Co., Ltd.
Features:
Plastic package has Underwriters Laboratory Flammability
Classification 94V-0
Glass passivated chip junction
Rating to 1000V PRV
Ideal for printed circuit board
High temperature soldering guaranteed:260 C/10 seconds at terminals
°
Component in accordance to RoHS 2011 65 EU
Application:
Used in power supply, lighting, auto, home appliance field
