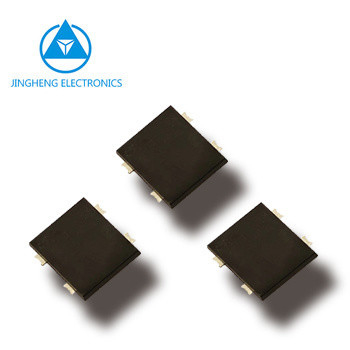

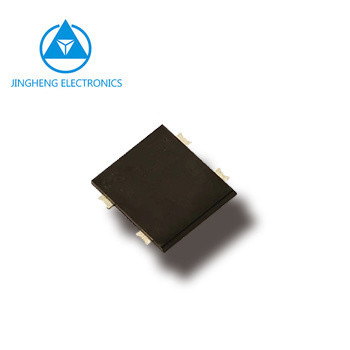

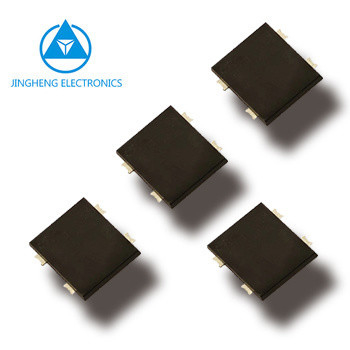

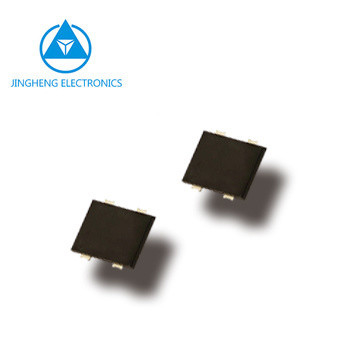

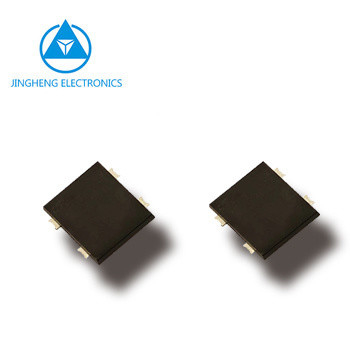

10A/1000V UBF1010 Surface Mount Glass Passivated Bridge Rectifier with 1
Product Details:
| Place of Origin: | China |
| Certification: | ISO9001:2015, ISO14001:2015, IATF16949 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3,000 Pieces |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, PayPal |
| Supply Ability: | 10000000000piece/Year |
|
Detail Information |
|||
| Model NO.: | UBF1010 | Structure: | Planar |
|---|---|---|---|
| Material: | Silicon | IF: | 1000V |
| IA: | 10A | Transport Package: | High Power |
| Specification: | BRIDGE RECTIFER DIODE | Trademark: | JF |
| Origin: | China | HS Code: | 85411000 |
| Supply Ability: | 10000000000piece/Year | Package Size: | 20.00cm * 40.00cm * 15.00cm |
| Package Gross Weight: | 8.000kg | ||
Product Description
SURFACE MOUNT RAPID RECOVERY GLASS PASSIVATED BRIDGE RECTIFIER
Electronics Component
Electronics Component
Part Number: UBF1010
Major Parameter:
| Type | VRRM | IF | IR(25ºC) | IR(100ºC) | IR(125ºC) | VF | Trr | Outline |
| V | A | μA | μA | uA | V | nS | ||
| RUBF410 | 1000 | 4.0 | 5 | 200 | 1.3 | 500 | UBF | |
| UBF510 | 1000 | 5.0 | 2 | 200 | 1.3 | UBF | ||
| RUBF510 | 1000 | 5.0 | 2 | 200 | 1.3 | 500 | ||
| UBF608 | 800 | 6.0 | 5 | 100 | 1.00 | UBF | ||
| UBF610 | 1000 | 6.0 | 5 | 100 | 1.00 | |||
| RUBF610 | 1000 | 6.0 | 5 | 200 | 1.10 | 500 | ||
| UBF806 | 600 | 8.0 | 10 | 500 | 1.1 | UBF | ||
| UBF810 | 1000 | 8.0 | 10 | 500 | 1.1 | |||
| RUBF810 | 1000 | 8.0 | 5 | 200 | 1.3 | 350 | ||
| UBF1010 | 1000 | 10.0 | 5 | 25 | 100 | 1.1 | UBF |
Brand: JF / JH
Package: UBF package
Manufacturer: Jinan Jingheng Electronics Co., Ltd.
Features:
• Glass Passivated Chip Junction
• Reverse Voltage - 1000 V
• Forward Current - 100 A
• Fast Recovery Time
• Designed for Surface Mount Application
Application:
Used in power supply, lighting, auto, home appliance field
