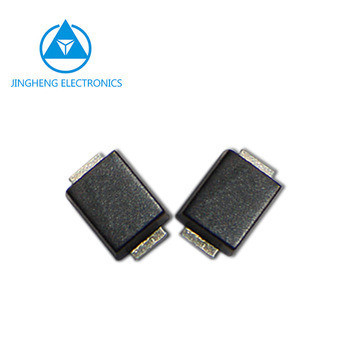

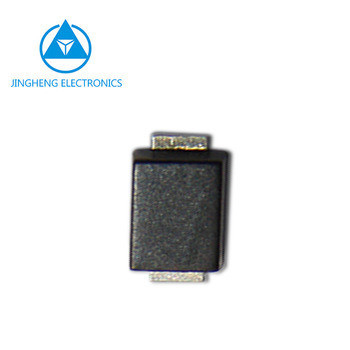

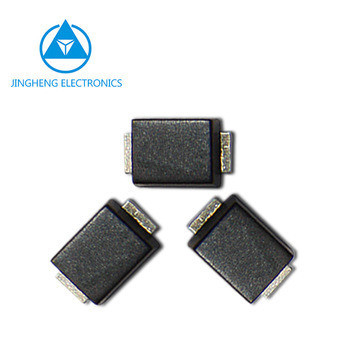

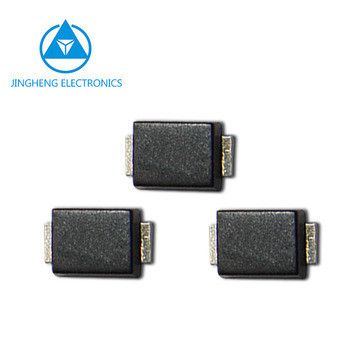

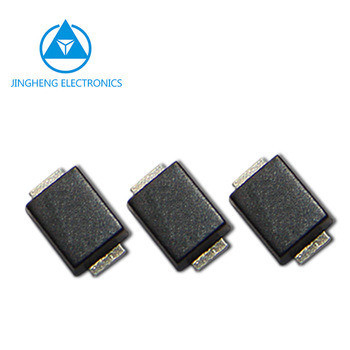

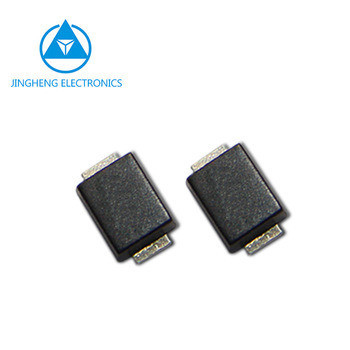

Surface Mount U1J Glass Passivated Junction Rectifier Diode with SOD-123FL Outline
Product Details:
| Place of Origin: | China |
| Certification: | ISO9001:2015, ISO14001:2015, IATF16949 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3,000 Pieces |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, PayPal |
| Supply Ability: | 10000000000piece/Year |
|
Detail Information |
|||
| Model NO.: | U1J | Material: | Silicon |
|---|---|---|---|
| Transport Package: | Carton | Specification: | Surface Mount |
| Trademark: | JF | Origin: | China |
| HS Code: | 85411000 | Supply Ability: | 10000000000piece/Year |
Product Description
GLASS PASSIVATED JUNCTION HIGH EFFICIENCY RECTIFIER
Part Number: U1A TRRU U1M
Major Parameter: 1A
Package: SOD-123FL SURFACE MOUNT Plastic
Manufacturer: Jinan Jingheng Electronics Co., Ltd.
Features:
Plastic package has Underwriters Laboratory Flammability Classification 94V-0
Glass passived junction
Low power loss, high efficiency
High surge current capability
High speed switching, Low leakage
Low forward voltage drop
High current capability, High reliability
High temperature soldering guaranteed:260 C/10 seconds at terminals
Component in accordance to RoHS 2011 65 EU
Application:
Used in power supply, lighting, auto, home appliance field
| Type | VRRM | IF | IR(25ºC) | IR(100ºC) | IR(125ºC) | VF | Trr | Outline |
| V | A | μA | uA | uA | V | nS | ||
| U1A | 50 | 1.0 | 5.0 | 50 | 1.0 | 50 | SOD-123FL | |
| U1D | 200 | 1.0 | 5.0 | 50 | 1.0 | 50 | ||
| U1G | 400 | 1.0 | 5.0 | 50 | 1.4 | 50 | ||
| U1J | 600 | 1.0 | 5.0 | 50 | 1.7 | 75 | ||
| U1K | 800 | 1.0 | 5.0 | 50 | 1.7 | 75 | ||
| U1M | 1000 | 1.0 | 5.0 | 50 | 1.7 | 75 |
