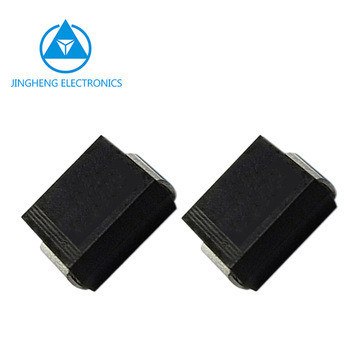

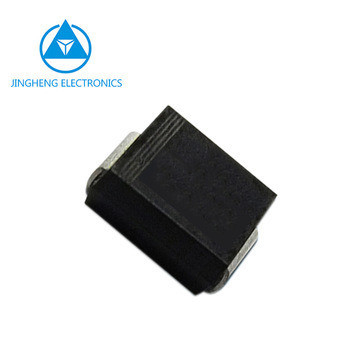

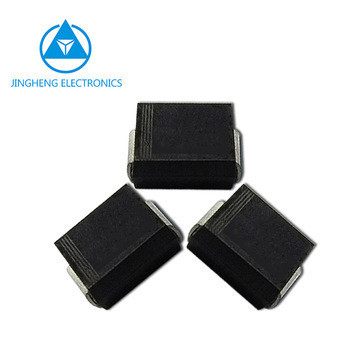

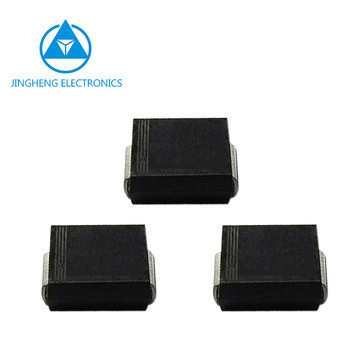

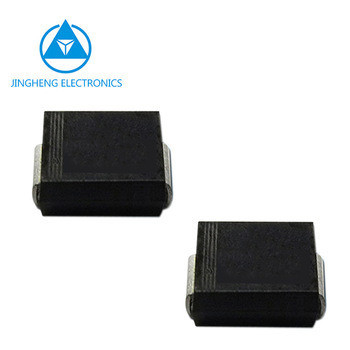

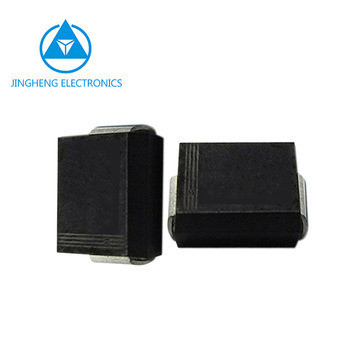

SS34LB THRU SS320LB Series 3A Current Low Vf Schottky Diode IF 3A with SMB Package
Product Details:
| Place of Origin: | China |
| Certification: | ISO9001:2015, ISO14001:2015, IATF16949 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3,000 Pieces |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, PayPal |
| Supply Ability: | 10000000000piece/Year |
|
Detail Information |
|||
| Model NO.: | SS34LB | Luminous Intensity: | None Luminance |
|---|---|---|---|
| Color: | None Luminance | Structure: | Alloy |
| Material: | Silicon | VRRM: | 40V |
| IF: | 3A | PACKAGE: | SMB |
| OUTLINE: | SMD | Transport Package: | Tape Reel |
| Specification: | Surface Mount Package | Trademark: | JF |
| Origin: | China | HS Code: | 85411000 |
| Supply Ability: | 10000000000piece/Year | Package Size: | 20.00cm * 40.00cm * 15.00cm |
| Package Gross Weight: | 8.000kg | ||
Product Description
LOW FORWARD VOLTAGE SCHOTTKY BARRIER RECTIFIER DIODES
Electronics Component
Part Number: SS34LB thru SS320LB
Major Parameter:
| TYPE | VRRM | IF | IR(25ºC) | VF | HBM | Tj | Outline |
| V | A | uA | V | KV | ºC | ||
| SS34LB | 40 | 3 | 200 | 0.47 | 8 | 150 | SMB (DO-214AA) |
| SS34SLS | 40 | 3 | 200 | 0.43 | 8 | 150 | |
| SS36LS | 60 | 3 | 150 | 0.52 | 8 | 150 | |
| SS36SLS | 60 | 3 | 100 | 0.48 | 8 | 150 | |
| SS38SLS | 80 | 3 | 100 | 0.55 | 8 | 150 | |
| SS310SLS | 100 | 3 | 50 | 0.65 | 8 | 150 | |
| SS315LS | 150 | 3 | 20 | 0.82 | 8 | 150 | |
| SS320LS | 200 | 3 | 20 | 0.85 | 8 | 150 |
Brand: JF
Package: SMB/DO-214AA
Manufacturer: Jinan Jingheng Electronics Co., Ltd.
Features:
· Metal silicon junction, majority carrier conduction
· Guard ring for overvoltage protection
· Low power loss, high effciency
· High surge capability, low forward voltage drop
· Surface mount outline
Application:
Used in power supply, lighting, auto, home appliance field
