SR6045LCT/SR6060LCT/SR6080LCT/SR60100LCT/SR60120LCT 60A Low VF Schottky Diode
Product Details:
| Place of Origin: | China |
| Certification: | ISO9001:2015, ISO14001:2015, IATF16949 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3,000 Pieces |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, PayPal |
| Supply Ability: | 10000000000piece/Year |
|
Detail Information |
|||
| Model NO.: | SR60120LCT | Luminous Intensity: | NO LIGHT |
|---|---|---|---|
| Color: | NO LIGHT | Structure: | Alloy |
| Material: | Silicon | Transport Package: | Tube |
| Specification: | High Power Package | Trademark: | JF, JH |
| Origin: | China | HS Code: | 85411000 |
| Supply Ability: | 10000000000piece/Year | Package Size: | 5.58cm * 1.48cm * 0.38cm |
| Package Gross Weight: | 0.002kg | ||
Product Description

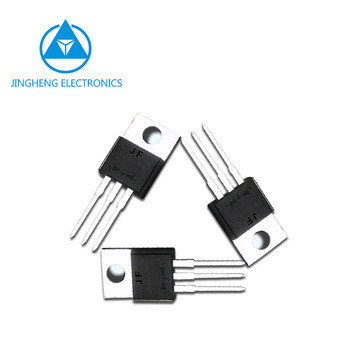

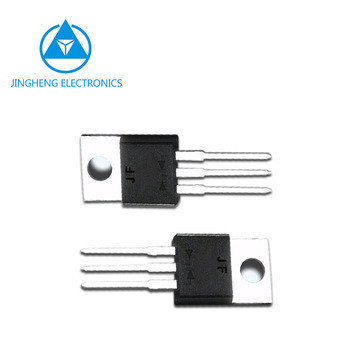

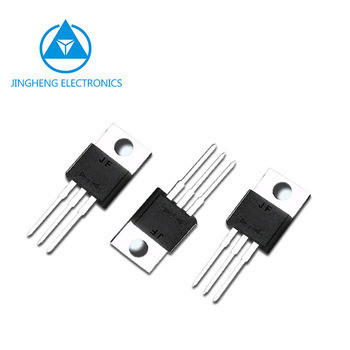

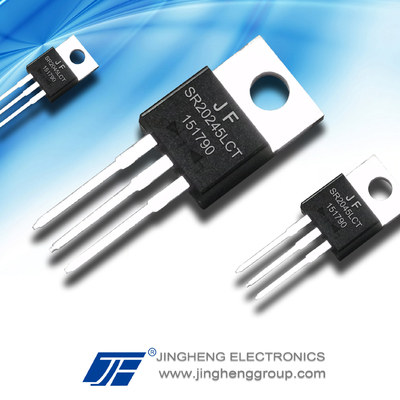

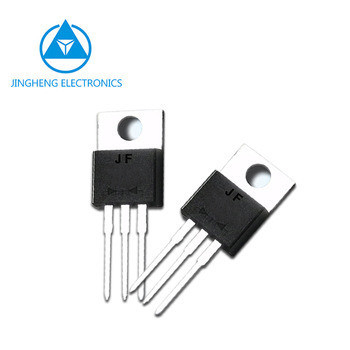

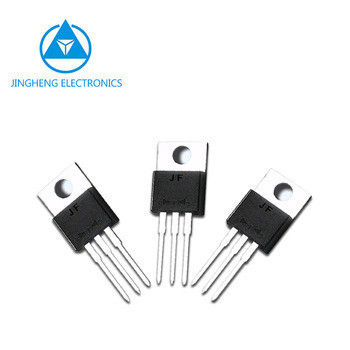

LOW VF SCHOTTKY BARRIER RECTIFIER DIODES
Electronics Component
Part Number: SR6045LCT THRU SR60120LCT
Major Parameter:
| Type | VRRM | IF | IR(25ºC) | IR(100ºC) | IR(125ºC) | VF | HBM | MM | Tj | Outline |
| V | A | uA | mA | mA | V | KV | KV | ºC | ||
| SR6045LCT | 45 | 2×30 | 200 | 15 | 0.60 | 8 | 4 | 150 | TO-220AB | |
| SR6060LCT | 60 | 2×30 | 150 | 10 | 0.70 | 8 | 4 | 150 | ||
| SR6080LCT | 80 | 2×30 | 100 | 15 | 0.75 | 8 | 4 | 150 | ||
| SR60100LCT | 100 | 2×30 | 100 | 10 | 0.76 | 8 | 4 | 150 |
Manufacturer: Jinan Jingheng Electronics Co., Ltd.
Features:
· Metal silicon junction, majority carrier conduction
· Guard ring for overvoltage protection
Application:
Used in power supply, lighting, auto, home appliance field
