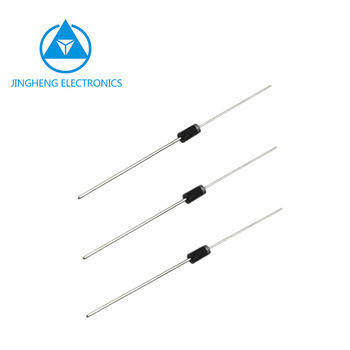

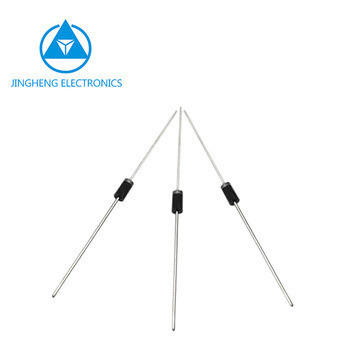

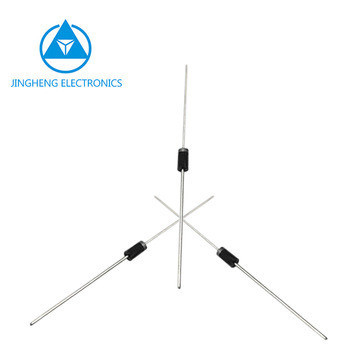

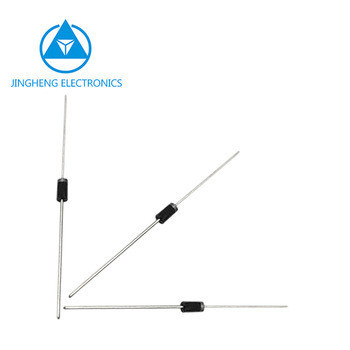

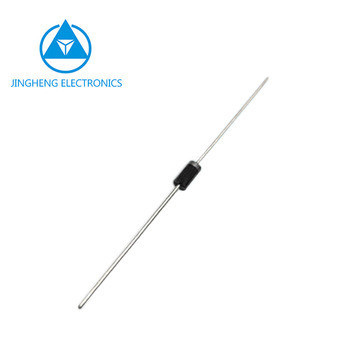

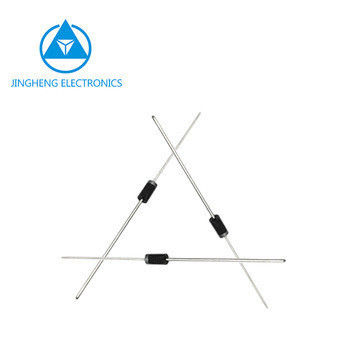

20.00cm * 40.00cm * 15.00cm Package Size BA157 BA158 BA159 Fast Recovery Diode with DO-41
Product Details:
| Place of Origin: | China |
| Certification: | ISO9001:2015, ISO14001:2015, IATF16949 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3,000 Pieces |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, PayPal |
| Supply Ability: | 10000000000piece/Year |
|
Detail Information |
|||
| Model NO.: | BA159 | Luminous Intensity: | None Luminance |
|---|---|---|---|
| Color: | None Luminance | Structure: | Planar |
| Material: | Silicon | PACKAGE: | DO-41 |
| Transport Package: | Carton | Specification: | AXIAL DIODE |
| Trademark: | JF | Origin: | China |
| HS Code: | 85411000 | Supply Ability: | 10000000000piece/Year |
| Package Size: | 20.00cm * 40.00cm * 15.00cm | Package Gross Weight: | 8.000kg |
Product Description
T
FAST RECTIFIER DIODES
MADE IN CHINA JF BRAND
Part Number: BA157 THROUGHT BA159
Major Parameter: 1A
Package: DO-41 Plastic
Manufacturer: Jinan Jingheng Electronics Co., Ltd.
Features:
· Metal silicon junction, majority carrier conduction
· Guard ring for overvoltage protection
Application:
Used in power supply, lighting, auto, home appliance field
| Type | VRRM | IF | IR(25ºC) | IR(100ºC) | IR(125ºC) | VF | Trr |
| V | A | μA | uA | uA | V | nS | |
| BA157 | 400 | 1.0 | 5.0 | 100 | 1.3 | 150 | |
| BA158 | 600 | 1.0 | 5.0 | 100 | 1.3 | 250 | |
| BA159 | 1000 | 1.0 | 5.0 | 100 | 1.3 | 250 |
