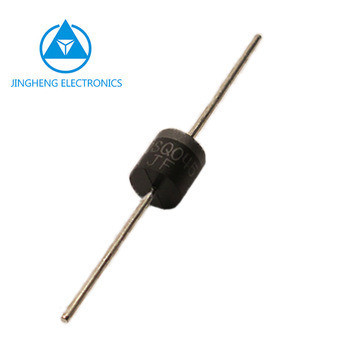

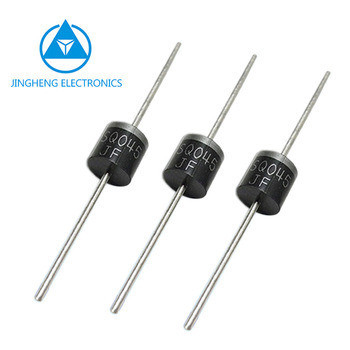

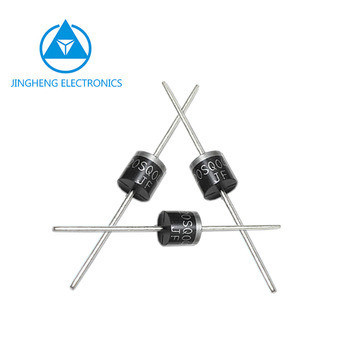

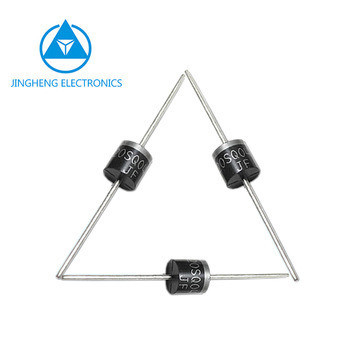

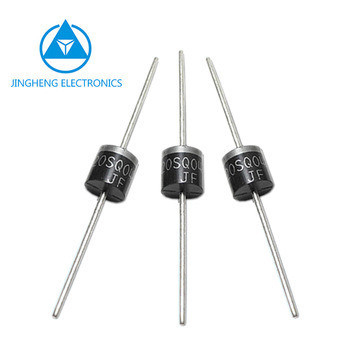

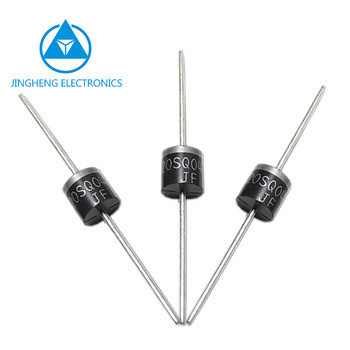

Fast Recovery Diode FR601 to FR607 with R-6 Package and None Luminous Intensity
Product Details:
| Place of Origin: | China |
| Certification: | ISO9001:2015, ISO14001:2015, IATF16949 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3,000 Pieces |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, PayPal |
| Supply Ability: | 10000000000piece/Year |
|
Detail Information |
|||
| Model NO.: | FR607 | Luminous Intensity: | None Luminance |
|---|---|---|---|
| Color: | None Luminance | Structure: | Planar |
| Material: | Silicon | IF: | 6A |
| VRRM: | 50V-1000V | Transport Package: | Carton |
| Specification: | AXIAL DIODE | Trademark: | JF |
| Origin: | China | HS Code: | 85411000 |
| Supply Ability: | 10000000000piece/Year | Package Size: | 20.00cm * 40.00cm * 15.00cm |
| Package Gross Weight: | 8.000kg | ||
Product Description
T
FAST RECTIFIER DIODES
MADE IN CHINA JF BRAND
Part Number:FR601 THROUGH FR607
Major Parameter: 6A
Package:R-6 Plastic
Manufacturer: Jinan Jingheng Electronics Co., Ltd.
Features:
· Metal silicon junction, majority carrier conduction
· Guard ring for overvoltage protection
Application:
Used in power supply, lighting, auto, home appliance field
| Type | VRRM | IF | IR(25ºC) | IR(100ºC) | IR(125ºC) | VF | Trr |
| V | A | μA | uA | uA | V | nS | |
| FR601 | 50 | 6.0 | 10.0 | 100 | 1.2 | 150 | |
| FR604 | 400 | 6.0 | 10.0 | 100 | 1.2 | 150 | |
| FR605 | 600 | 6.0 | 10.0 | 100 | 1.2 | 250 | |
| FR606 | 800 | 6.0 | 10.0 | 100 | 1.2 | 500 | |
| FR607 | 1000 | 6.0 | 10.0 | 100 | 1.2 | 500 |
