Silicon Diodes 1N4148/LL4148/1N4148W/1N4148WS/1N4148WT for and Stable Signal Switching
Product Details:
| Place of Origin: | China |
| Certification: | ISO9001:2015, ISO14001:2015, IATF16949 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3,000 Pieces |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, PayPal |
| Supply Ability: | 10000000000piece/Year |
|
Detail Information |
|||
| Model NO.: | 1N4148 | Structure: | Planar |
|---|---|---|---|
| Material: | Silicon | Transport Package: | Box/Carton |
| Trademark: | JF | Origin: | China |
| HS Code: | 85411000 | Supply Ability: | 10000000000piece/Year |
| Package Size: | 30.00cm * 40.00cm * 35.00cm | Package Gross Weight: | 8.000kg |
Product Description
SMALL SIGNAL SWITCHING DIODES
Electronics Component

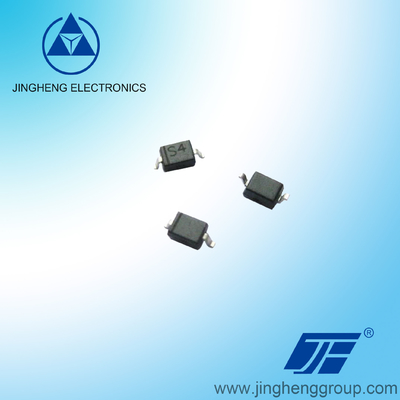

Part Number: 1N4148/LL4148/1N4148W/1N4148WS/1N4148WT
Major Parameter:
| Type | VR | IF | VF | @IF1 | Ptot | IR @VR | Trr | Outline |
| V | mA | V | mA | mW | μA | nS | ||

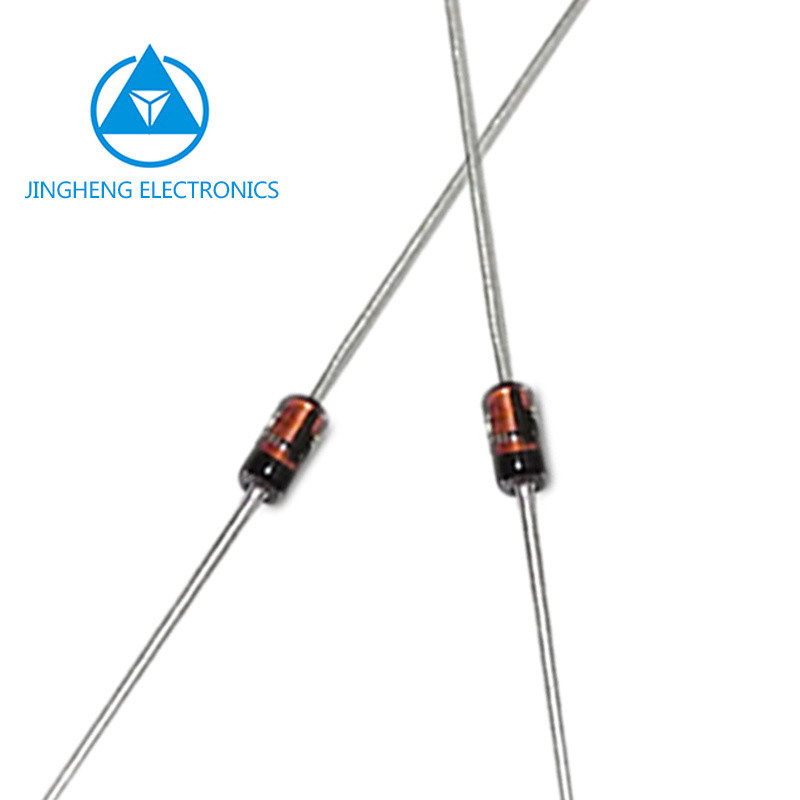

| 1N4148 | 75 | 150.0 | 1.0 | 10 | 500 | 5.00 | 4 | DO-35(G) |

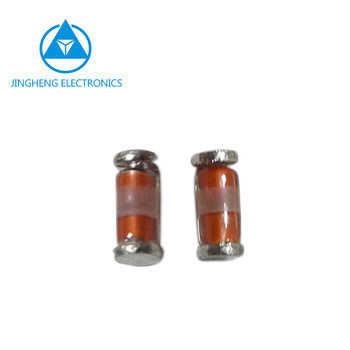

| LL4148 | 75 | 150.0 | 1.0 | 10 | 500 | 5.00 | 4 | Mini-MELF(G) |

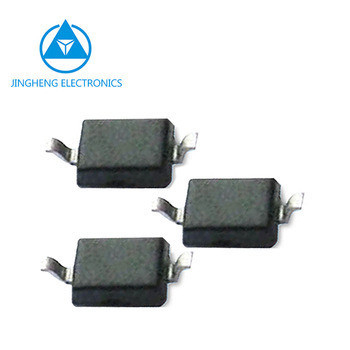

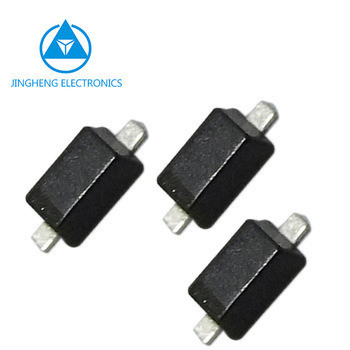

| 1N4148W | 75 | 150.0 | 1.0 | 10 | 400 | 5.00 | 4 | SOD-123 |

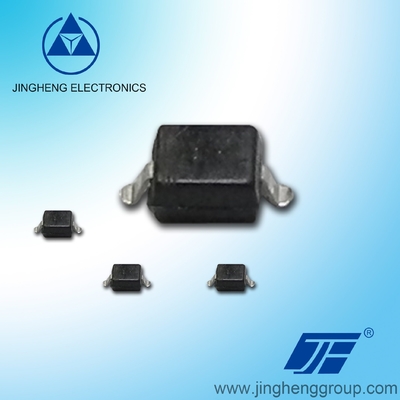

| 1N4148WS | 75 | 150.0 | 1.0 | 10 | 200 | 5.00 | 4 | SOD-323 |
| 1N4148WT | 75 | 150.0 | 1.0 | 10 | 200 | 5.00 | 4 | SOD-523 |
Brand: JF
Package: DO-35/MINIMELF/SOD123/SOD323/SOD523 Plastic
Manufacturer: Jinan Jingheng Electronics Co., Ltd.
Features:
· Silicon epitaxial planar diode
· Fast switching diode
· Fast switching diode
· This diode is also available in other case styles including: the DO-35 case with the type designation 1N4148, the MiniMelf case with the type designation LL4148, the MicroMelf case with the type designation MCL4148, the SOD-123 case with the type designation 1N4148W, the SOD-523FL case with the type designation 1N4148WT.
Application:
Used in power supply, lighting, auto, home appliance field
