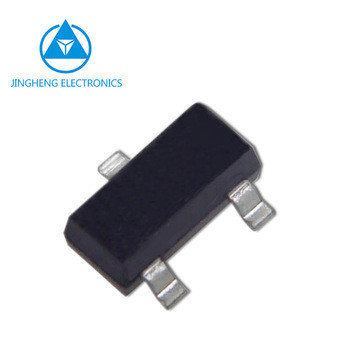

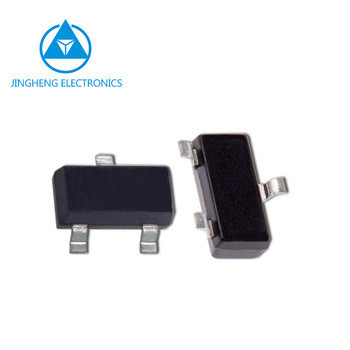

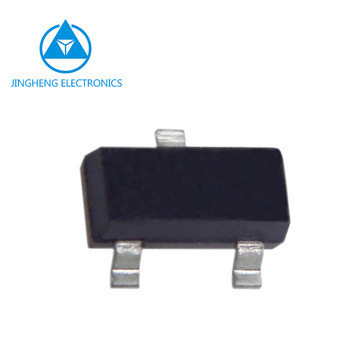

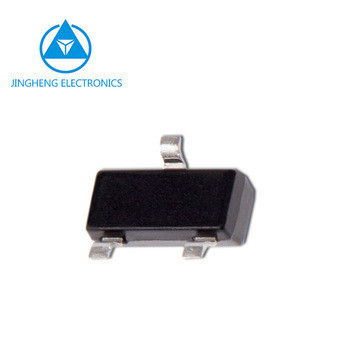

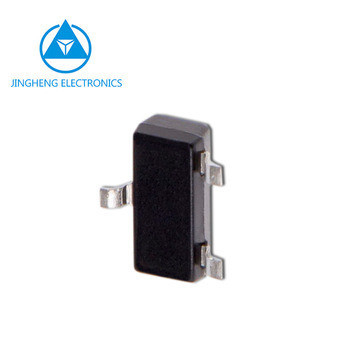

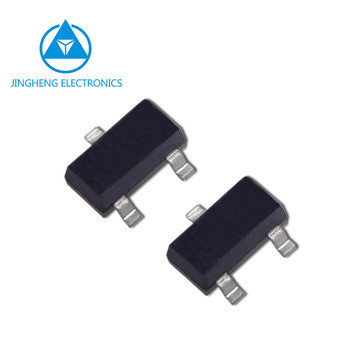

BAT54S SOT23 Package Small Signal Schottky Barrier Diode 200mA Planar Structure 8.000kg
Product Details:
| Place of Origin: | China |
| Certification: | ISO9001:2015, ISO14001:2015, IATF16949 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3,000 Pieces |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, PayPal |
| Supply Ability: | 10000000000piece/Year |
|
Detail Information |
|||
| Model NO.: | BAT54S | Luminous Intensity: | None Luminance |
|---|---|---|---|
| Color: | None Luminance | Structure: | Planar |
| Material: | Silicon | Transport Package: | Tape Reel |
| Specification: | Surface Mount | Trademark: | JF |
| Origin: | China | HS Code: | 85411000 |
| Supply Ability: | 10000000000piece/Year | Package Size: | 20.00cm * 40.00cm * 15.00cm |
| Package Gross Weight: | 8.000kg | ||
Product Description
Small Signal Schottky Barrier Diode
Electronics Component
Electronics Component
Part Number: BAT54S
Major Parameter:
| Type | VRRM | IF | IR | VF | Trr | Outline |
| V | mA | μA | V | ns | ||
| LL103A | 40 | 200 | 5.0 | 0.6 | 10 | Mini-MELF (GLASS) |
| LL103B | 30 | 200 | 5.0 | 0.6 | 10 | |
| LL103C | 20 | 200 | 5.0 | 0.6 | 10 | |
| BAT54 | 30 | 200 | 2.0 | 1.0 | 5 | SOT-23 |
| BAT54A | 30 | 200 | 2.0 | 1.0 | 5 | SOT-23 |
| BAT54C | 30 | 200 | 2.0 | 1.0 | 5 | SOT-23 |
| BAT54S | 30 | 200 | 2.0 | 1.0 | 5 | SOT-23 |
| BAS40 | 40 | 200 | 0.2 | 1.0 | 5 | SOT-23 |
| BAS40-04 | 40 | 200 | 0.2 | 1.0 | 5 | SOT-23 |
| BAS40-05 | 40 | 200 | 0.2 | 1.0 | 5 | SOT-23 |
| BAS40-06 | 40 | 200 | 0.2 | 1.0 | 5 | SOT-23 |
| BAT54ADW | 30 | 200 | 2.0 | 1.0 | 5 | SOT-363 |
| BAT54CDW | 30 | 200 | 2.0 | 1.0 | 5 | |
| BAT54SDW | 30 | 200 | 2.0 | 1.0 | 5 | |
| BAT54BRW | 30 | 200 | 2.0 | 1.0 | 5 | |
| BAT54TW | 30 | 200 | 2.0 | 1.0 | 5 |
Brand: JF
Package: SOT-23 Plastic
Manufacturer: Jinan Jingheng Electronics Co., Ltd.
Features:
· Epoxy meets UL-94 V-0 flammability rating
· High Current Capability
· Low Forward Voltage Drop
· Extremly Fast Switching Speed
· High Stability and High Reliability
