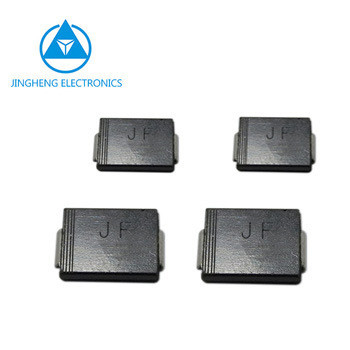

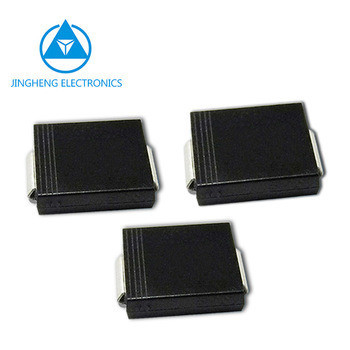

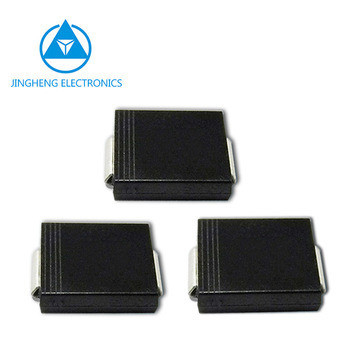

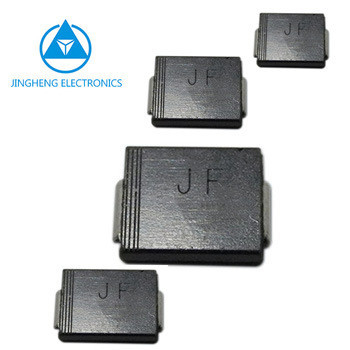

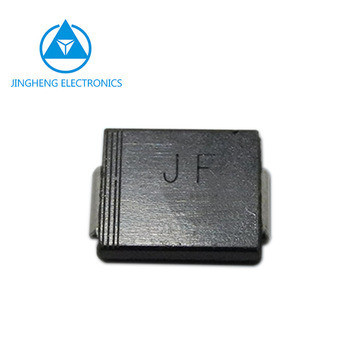

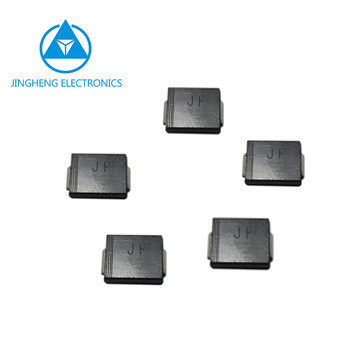

SMCJ5.0A-SMCJ440A 1500W TVS Diode Transient Voltage Suppressors for Surge Suppression
Product Details:
| Place of Origin: | China |
| Certification: | ISO9001:2015, ISO14001:2015, IATF16949 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3,000 Pieces |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, PayPal |
| Supply Ability: | 10000000000piece/Year |
|
Detail Information |
|||
| Model NO.: | SMCJ5.0A - SMCJ440A | Luminous Intensity: | None Luminance |
|---|---|---|---|
| Color: | None Luminance | Structure: | Planar |
| Material: | Silicon | Part Number: | SMCJ5.0A -- SMCJ440A |
| PACKAGE: | SMC | Manufacturer: | Jinan Jingheng Electronics Co., Ltd. |
| Transport Package: | Carton | Specification: | Carton |
| Trademark: | JF | Origin: | China |
| HS Code: | 854110000 | Supply Ability: | 500000PCS/Month |
| Package Size: | 20.00cm * 40.00cm * 15.00cm | Package Gross Weight: | 8.000kg |
Product Description
Transient Voltage Suppressors
Electronics Component
Major Parameter: SMCJ5.0A -- SMCJ440A
| Type | VBR | IT | VWM | ID | Ippm | VC | Outline | |
| Min.V | Max.V | mA | V | μA | A | V | ||
| SMF5.0~SMF220A | 6.40~246 | 7.07~275 | 10~1 | 5.0~220 | 100~5 | 20.8~0.5 | 9.6~356 | SOD-123FL |
| SMAFJ5.0A~SMAFJ350A | 6.4~391 | 7.0~432 | 10~1 | 5.0~350 | 800~1 | 43.5~0.7 | 9.2~567 | SMAF |
| SMAJ5.0A~SMAJ440A | 6.4~492 | 7.0~543 | 10~1 | 5.0~462 | 3σ~1 | 43.5~0.6 | 9.2~713 | SMA |
| SMBJ5.0~SMBJ440A | 6.40~189 | 7.30~209 | 10~1 | 5.0~170 | 800~5 | 65~2.2 | 9.6~275 | SMB |
| SMCJ5.0~SMCJ440A | 6.40~189 | 7.30~209 | 10~1 | 5.0~170 | 1000~5 | 164~5.7 | 9.6~275 | SMC |
Brand: JF logo
Manufacturer: Jinan Jingheng Electronics Co., Ltd.
Features:
· Excellent clamping capability
· Low incremental surge resistance
· Fast response time
· High temperature soldering guaranteed: 2 0 C/10 seconds t 6 a terminals
· Component inaccordance to RoHS 2011 65 EU
