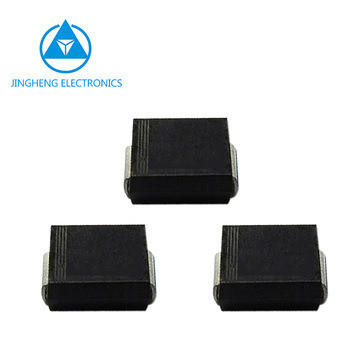

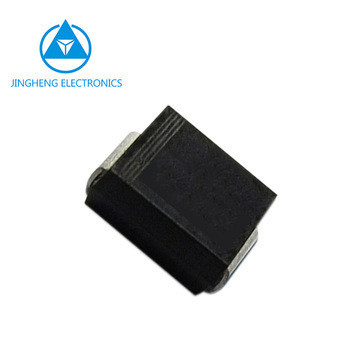

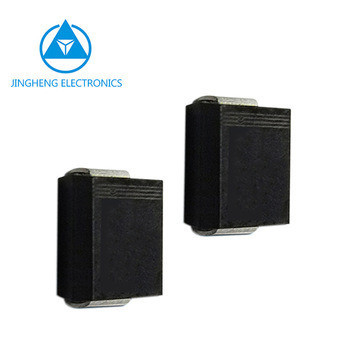

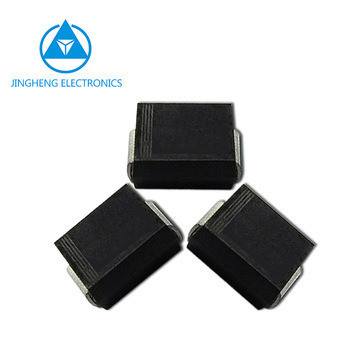

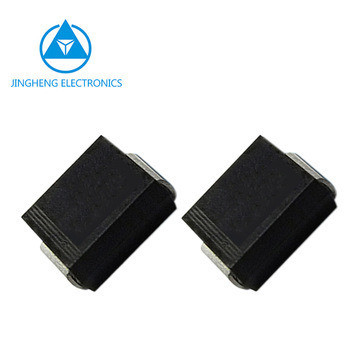

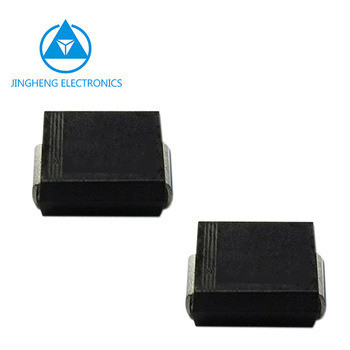

US3D Silicon Rectifier Diode with 3AMPS Glass Passivated Junction in DO-214AA Package
Product Details:
| Place of Origin: | China |
| Certification: | ISO9001:2015, ISO14001:2015, IATF16949 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3,000 Pieces |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, PayPal |
| Supply Ability: | 10000000000piece/Year |
|
Detail Information |
|||
| Model NO.: | US3D | Structure: | Alloy |
|---|---|---|---|
| Material: | Silicon | Transport Package: | Tape Reel |
| Specification: | LOW TRR | Trademark: | JF |
| Origin: | China | HS Code: | 85411000 |
| Supply Ability: | 10000000000piece/Year | ||
Product Description
GLASS PASSIVATED JUNCTION ULTRA FAST RECOVERY RECTIFIER
Electronics Component
Electronics Component
Part Number: US3A THRU US3M
Major Parameter:
| Type | VRRM | IF | IR(25ºC) | IR(100ºC) | IR(125ºC) | VF | Trr | Outline |
| V | A | μA | uA | uA | V | nS | ||
| US3A | 50 | 3.0 | 5.0 | 100 | 1.0 | 50 | SMB SMC | |
| US3D | 200 | 3.0 | 5.0 | 100 | 1.0 | 50 | ||
| US3G | 400 | 3.0 | 5.0 | 100 | 1.3 | 50 | ||
| US3J | 600 | 3.0 | 5.0 | 100 | 1.7 | 75 | ||
| US3K | 800 | 3.0 | 5.0 | 100 | 1.7 | 75 | ||
| US3M | 1000 | 3.0 | 5.0 | 100 | 1.7 | 75 |
Brand: JF
Package: SMB/ DO-214AA SMC/DO-214AB
Manufacturer: Jinan Jingheng Electronics Co., Ltd.
Features:
· Metal silicon junction, majority carrier conduction
· Guard ring for overvoltage protection
· Low power loss, high effciency
· High surge capability, low forward voltage drop
· Surface mount outline
Application:
Used in power supply, lighting, auto, home appliance field
