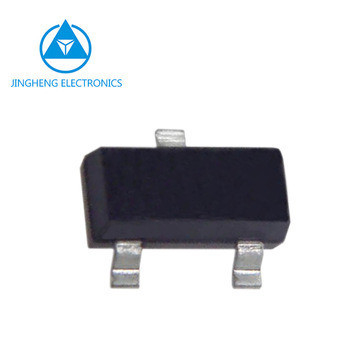

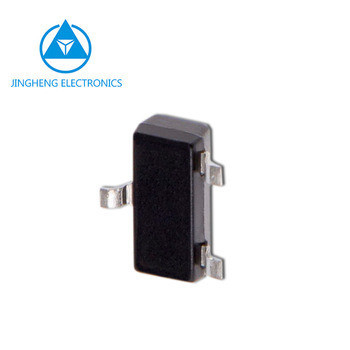

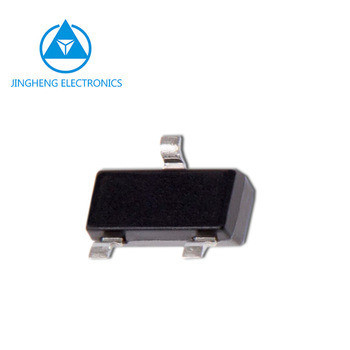

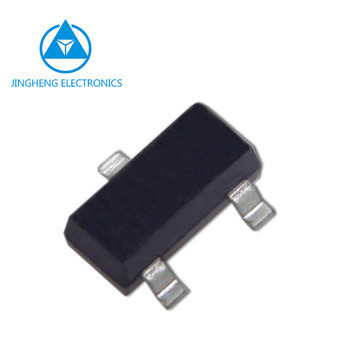

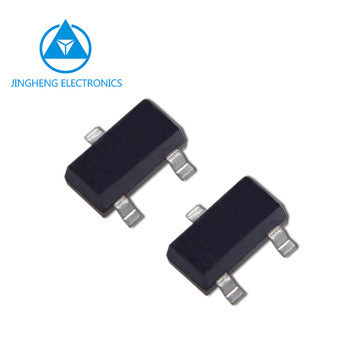

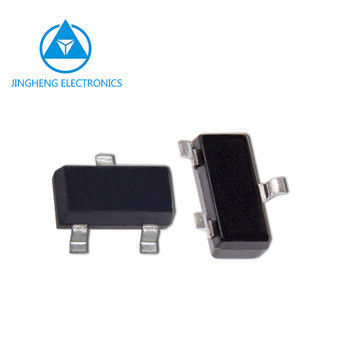

SOT-23 Package 60V 230mA N-CHANNEL MOSFET 2N7002K for Superior and Silicon Devices
Product Details:
| Place of Origin: | China |
| Certification: | ISO9001:2015, ISO14001:2015, IATF16949 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3,000 Pieces |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, PayPal |
| Supply Ability: | 10000000000piece/Year |
|
Detail Information |
|||
| Model NO.: | 2N7002K | Luminous Intensity: | None Luminance |
|---|---|---|---|
| Color: | None Luminance | Structure: | N Channel |
| Material: | Silicon | VDSS (MAX): | 60V |
| ID (MAX): | 0.34A | Transport Package: | Tape Reel |
| Specification: | SMD Type | Trademark: | JF |
| Origin: | China | HS Code: | 85411000 |
| Supply Ability: | 10000000000piece/Year | Package Size: | 20.00cm * 40.00cm * 15.00cm |
| Package Gross Weight: | 8.000kg | ||
Product Description
N-CHANNEL ENHANCEMENT MODE MOSFET 2N7002K
Electronics Component
Part Number: 2N7002K
Major Parameter:
| Type | Channel | VDSS(V) (MAX) | ID(A) (MAX) | PD(W) (MAX) | VGS(V) (MAX) | VTH(V) | Rds(on)(Ω)@10V (Typ) | Rds(on)(Ω)@4.5V (Typ) | Rds(on)(Ω)@2.5V (Typ) | ESD protection for G-S(Y/N) | Outline |
| 2N7002 | N | 60 | 0.34 | 0.35 | ±20 | 1.0~2.5 | 1.2 | 1.3 | SOT-23 | ||
| 2N7002A | N | 60 | 0.34 | 0.35 | ±30 | 1.0~2.5 | 1.2 | 1.3 | |||
| 2N7002K | N | 60 | 0.34 | 0.35 | ±20 | 1.0~2.5 | 1.3 | 1.4 | Y |
Brand: JF
Package: SOT-23
Manufacturer: Jinan Jingheng Electronics Co., Ltd.
Features:
· Trench Power MV MOSFET technology
· Voltage controlled small signal switch
· Low input Capacitance
· ESD Protected Up to 2.5KV(HBM)
· Low input Capacitance
· ESD Protected Up to 2.5KV(HBM)
Application:
· Battery operated systems
· Solid state relays
· Direct logic-level interface:TTL/CMOS
