None Luminance Silicon Carbide Schottky Diode SC0665 with 650V Voltage TO-220AC Package
Product Details:
| Place of Origin: | China |
| Certification: | ISO9001:2015, ISO14001:2015, IATF16949 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3,000 Pieces |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, PayPal |
| Supply Ability: | 10000000000piece/Year |
|
Detail Information |
|||
| Model NO.: | SC0665 | Luminous Intensity: | None Luminance |
|---|---|---|---|
| Color: | None Luminance | Structure: | Planar |
| Material: | Silicon | Transport Package: | Tube |
| Specification: | High Power | Trademark: | JF, JH |
| Origin: | China | HS Code: | 85411000 |
| Supply Ability: | 10000000000piece/Year | Package Size: | 20.00cm * 40.00cm * 15.00cm |
| Package Gross Weight: | 8.000kg | ||
Product Description
SILICON CARBIDE SCHOTTKY DIODE
Electronics Component
Part Number: SC0265/SC0465/SC0665/SC0865/SC1065/SC1265/SC1565/SC1665/SC2065
Major Parameter: SIC DIODE
| Type | VRRM | IF | IR(25ºC) | IR(175ºC) | VF(25ºC) | VF(175ºC) | Tj | Outline |
| V | A | μA | μA | V | V | ºC | ||
| SC0265 | 650 | 2 | 5 | 50 | 1.65 | 2.3 | 175 | TO-220AC |
| SC0465 | 650 | 4 | 5 | 50 | 1.65 | 2.3 | 175 | |
| SC0665 | 650 | 6 | 5 | 50 | 1.65 | 2.3 | 175 | |
| SC0865 | 650 | 8 | 5 | 50 | 1.65 | 2.3 | 175 | |
| SC1065 | 650 | 10 | 5 | 50 | 1.65 | 2.3 | 175 | |
| SC1265 | 650 | 12 | 5 | 50 | 1.65 | 2.3 | 175 | |
| SC1565 | 650 | 15 | 5 | 50 | 1.65 | 2.3 | 175 | |
| SC1665 | 650 | 16 | 5 | 50 | 1.65 | 2.3 | 175 | |
| SC2065 | 650 | 20 | 5 | 50 | 1.65 | 2.3 | 175 |
Brand: JF logo

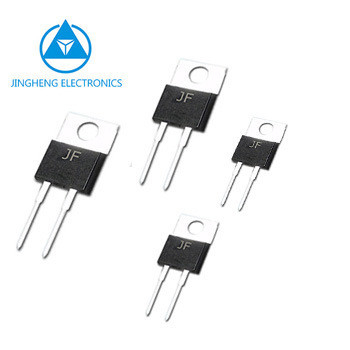

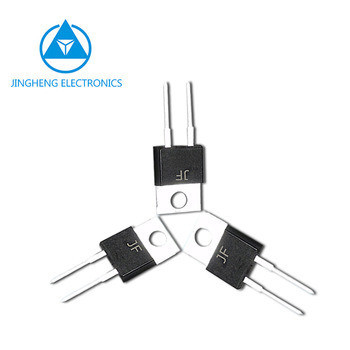

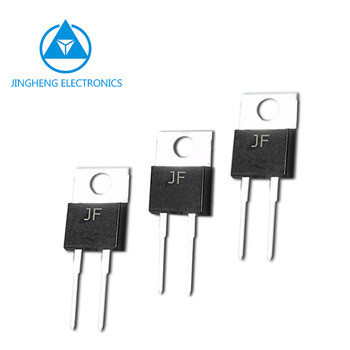

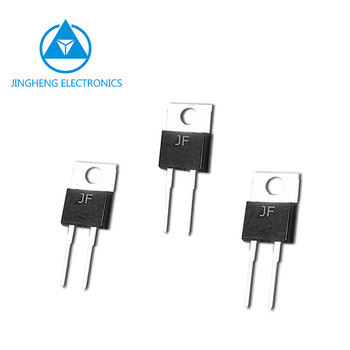

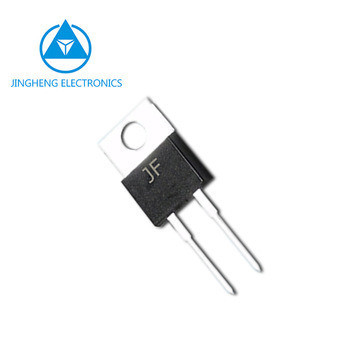

Package: TO-220AC
Manufacturer: Jinan Jingheng Electronics Co., Ltd.
Description:
SiC Schottky Diode has no switching loss, provides improved system efficiency against Si diodes by utilizing new semiconductor material-Silicon Carbide, enables higher operating frequency, and helps increasing power density and reduction of system size /cost. Its high reliability ensures robust operation during surge or over-voltage conditions.
Features:
Max Junction Temperature 175°C
High Surge Current Capacity
Positive Temperature Coefficient
Ease of Paralleling
No Reverse Recovery/No Forward Recovery
Typical applications:
General Purpose
SMPS, Solar inverter, UPS
Power Switching Circuits
