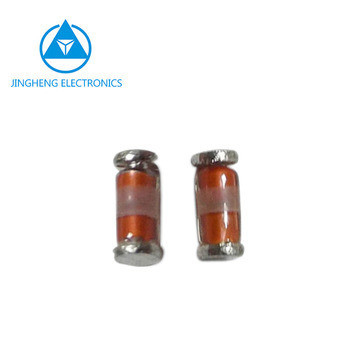

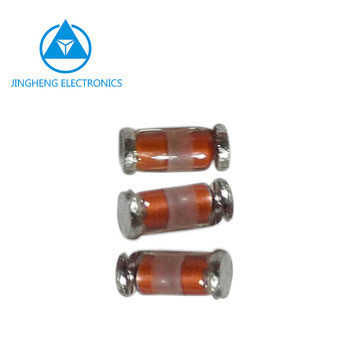

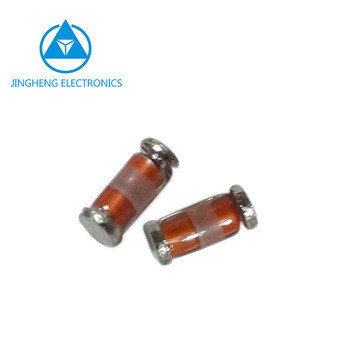

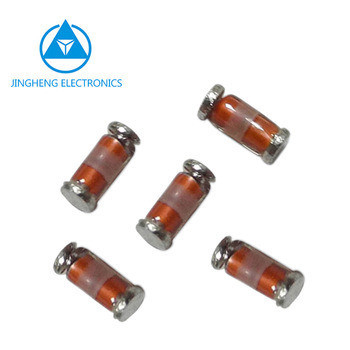

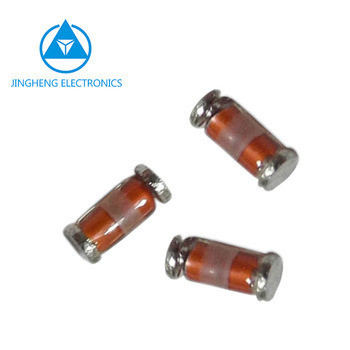

LLDB3/LLDB4/LLDB6 SILICON BIDIRECTIONAL DIAC DIODE WITH NO LIGHT Luminous Intensity
Product Details:
| Place of Origin: | China |
| Certification: | ISO9001:2015, ISO14001:2015, IATF16949 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3,000 Pieces |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, PayPal |
| Supply Ability: | 10000000000piece/Year |
|
Detail Information |
|||
| Model NO.: | LLDB3 | Luminous Intensity: | NO LIGHT |
|---|---|---|---|
| Color: | NO LIGHT | Structure: | Planar |
| Material: | Silicon | Transport Package: | Tape Reel |
| Specification: | SMD | Trademark: | JF |
| Origin: | China | HS Code: | 85411000 |
| Supply Ability: | 10000000000piece/Year | Package Size: | 5.58cm * 1.48cm * 0.38cm |
| Package Gross Weight: | 0.001kg | ||
Product Description
SURFACE MOUNT SILICON BIDIRECTIONAL DIAC
Electronics Component
Part Number: LLDB3/LLDB4/LLDB6
Major Parameter:
| Type | VBO | │+VBO│-│-VBO│ | │±△V│ | VO | IB | Outline | ||
| Min.V | Typ.V | Max.V | V | V | V | μA | ||
| DB3 | 28 | 32 | 36 | ±3 | 5 | 5 | 10 | DO-35 (GLASS) |
| DC34 | 30 | 34 | 38 | ±3 | 5 | 5 | 10 | |
| DB4 | 35 | 40 | 45 | ±3 | 5 | 5 | 10 | |
| DB6 | 56 | 60 | 70 | ±4 | 10 | 5 | 10 | |
| LLDB3 | 28 | 32 | 36 | ±3 | 5 | 5 | 10 | Mini-MELF (GLASS) |
| LLDC34 | 30 | 34 | 38 | ±3 | 5 | 5 | 10 | |
| LLDB4 | 35 | 40 | 45 | ±3 | 5 | 5 | 10 | |
| LLDB6 | 56 | 60 | 70 | ±4 | 10 | 5 | 10 | |
Brand: JF Logo/ JH Logo
Package: MINIMELF
Manufacturer: Jinan Jingheng Electronics Co., Ltd.
Features:
· The three-layer, two-terminal, axial-lead, hermetically sealed diacs are designed specifically for triggering thyristors. They demonstrate low breakover current at breakover voltage as they withstand peak pulse current. The breakover symmetry is within three volts(DB3,DC34,DB4) or four volts(DB6). These diacs are intended for use in thyrisitors phase control , circuits for lamp dimming, universal motor speed control and heat control.
· JF's DB3/DC34/DB4/DB6 are bi-directional triggered diode designed to operate in conjunction with Triacs and SCR's
Application:
Used in lighting field
