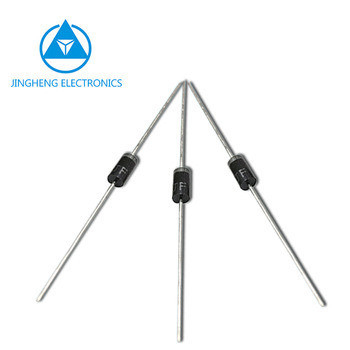

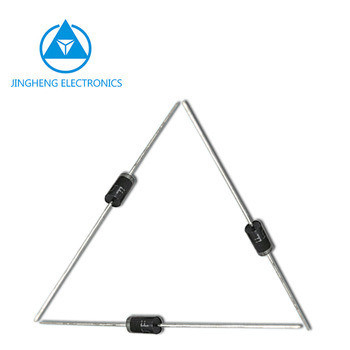

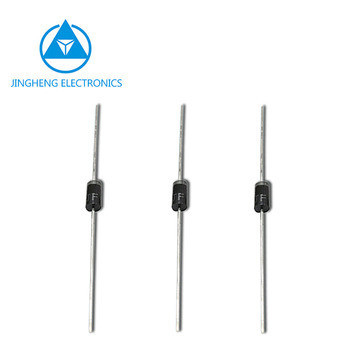

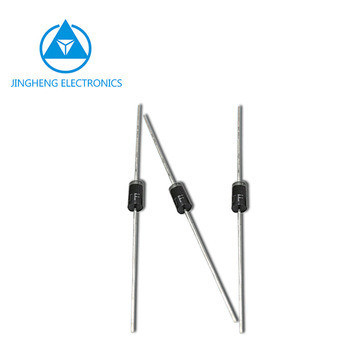

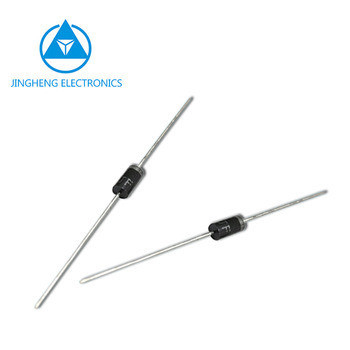

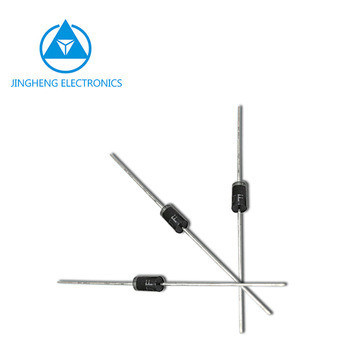

DB150/K150B Bilateral Voltage Triggered Switch SIDAC Diode with Silicon Material
Product Details:
| Place of Origin: | China |
| Certification: | ISO9001:2015, ISO14001:2015, IATF16949 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3,000 Pieces |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, PayPal |
| Supply Ability: | 10000000000piece/Year |
|
Detail Information |
|||
| Model NO.: | DB150 | Structure: | Planar |
|---|---|---|---|
| Material: | Silicon | Transport Package: | Carton |
| Specification: | Through Hole | Trademark: | JF |
| Origin: | China | HS Code: | 85411000 |
| Supply Ability: | 10000000000piece/Year | ||
Product Description
SIDAC Bilateral Voltage triggered Switch
Electronics Component
Part Number: DB150R/ DB150B/ DB150S/ DB150K
Major Parameter:
| Type | IT | VDRM | VBO | IDRM | IBO | IH | VTM | ITSM | Rs | dv/dt | di/dt | Outline | ||
| Max | Min | Min | Max | Max | Typ | Max | Min | Min | Typ | |||||
| A | Typ | V | V | μA | μA | mA | mA | V | A | KΩ | V/μs | A/μs | ||
| DB150R | 1 | 130 | 140 | 170 | 5 | 10 | 40 | 100 | 1.5 | 20 | 0.1 | 1500 | 150 | R-1 |
| DB150B | 1 | 130 | 140 | 170 | 5 | 10 | 40 | 100 | 1.5 | 20 | 0.1 | 1500 | 150 | DO-15 |
| DB150S | 1 | 130 | 140 | 170 | 5 | 10 | 40 | 100 | 1.5 | 20 | 0.1 | 1500 | 150 | SMA |
| DB150K | 1 | 130 | 140 | 170 | 5 | 10 | 40 | 100 | 1.5 | 20 | 0.1 | 1500 | 150 | SOD-123FL |
Brand: JF logo
Manufacturer: Jinan Jingheng Electronics Co., Ltd.
General Description:
SIDAC (Silicon Diode for Alternating Current)represents an unique set of thyristor qualities. The SIDAC is a bidirectional voltage triggered switch. Upon application of a voltage exceeding the sidac breakover voltage point, the sidac switches on through a negative resistance region to a low on-state voltage. conduction will continue until the current is interrupted or drops below the minimum holding current of the device. At present, JINGHENG can offer three kinds of package in DO-41/ R-1/ DO-15/ Minimelf/ SMA/ SOD-123FL. JINGHENG's sidacs feature glass passivated junctions to ensure a rugged and dependable device capable of withstanding harsh environments.
Features:
Bilateral Voltage triggered
AC circuit oriented
Glass-passivated junctions
High surge current capabilities
Applications:
High voltage lamp ignitors
Xenon ignitors
Natural gas ignitors
Over voltage protector
Gas oil ignitors
High voltage power supply
Pulse generators
Fluorescent lighting ignitors
HID (high intensity discharge) lighting ignitors
