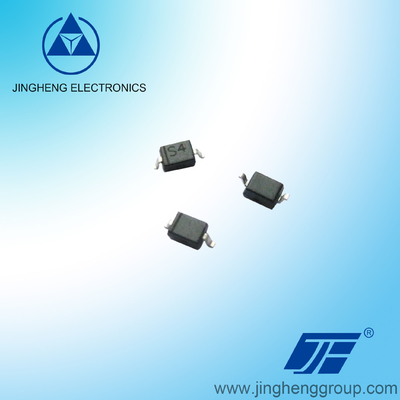

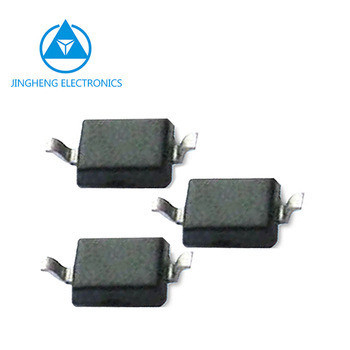

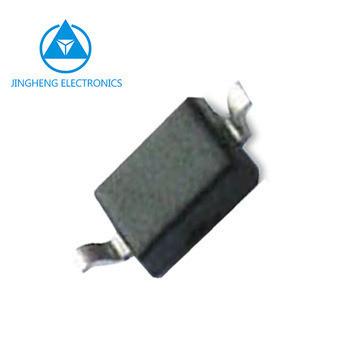

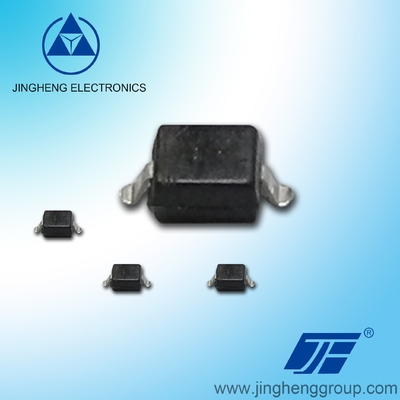

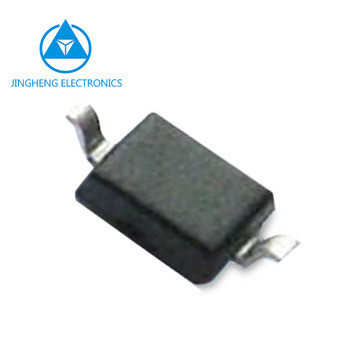

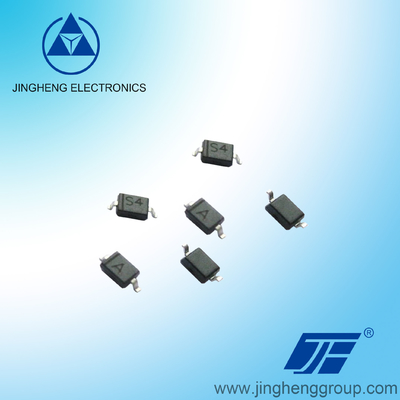

MM3Z2V0 to MM3Z120 0.3W Silicon Planar Zener Diodes with SOD-323 Package and NO LIGHT
Product Details:
| Place of Origin: | China |
| Certification: | ISO9001:2015, ISO14001:2015, IATF16949 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3,000 Pieces |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, PayPal |
| Supply Ability: | 10000000000piece/Year |
|
Detail Information |
|||
| Model NO.: | MM3Z120 | Luminous Intensity: | NO LIGHT |
|---|---|---|---|
| Color: | NO LIGHT | Structure: | Planar |
| Material: | Silicon | Transport Package: | Tape Reel |
| Specification: | SMD | Trademark: | JF |
| Origin: | China | HS Code: | 85411000 |
| Supply Ability: | 10000000000piece/Year | Package Size: | 5.58cm * 1.48cm * 0.38cm |
| Package Gross Weight: | 0.001kg | ||
Product Description
0.3W SILICON PLANAR ZENER DIODES
Electronics Component
Part Number: MM3Z2V0 THRU MM3Z120
Major Parameter:
| Type | VZNOM | IZT for VZT | Rzjt and Rzjk at Izk | IR at VR | TKVZ | IZM | Outline | ||||
| V | mA | V | Ω | Ω | mA | μA | V | %/K | mA | ||
| MM3Z2V4B ~ MM3Z75B | 2.4 ~ 75 | 5 ~ 5 | 2.45~2.61 ~ 73.13~76.87 | 100 ~ 265 | 1000 ~ 1700 | 0.5 ~ 0.25 | 120 ~ 0.1 | 1.0 ~ 56 | -0.09~-0.06 ~ 0.04~0.12 | SOD-323 | |
| MM3Z2V4 ~ MM3Z75 | 2.4 ~ 75 | 5 ~ 2 | 2.28~2.52 ~ 71.25~78.75 | 100 ~ 265 | 600 ~ 1700 | 1 ~ 0.25 | 50 ~ 0.1 | 1.0 ~ 56 | -0.09~-0.06 ~ 0.05~0.12 | SOD-323 | |
| MM3Z2V0B ~ MM3Z39B | 2.0 ~ 39 | 5 ~ 5 | 1.8~2.15 ~ 37~41 | 100 ~ 100 | 5 ~ 2 | 120 ~ 2 | 0.5 ~ 30 | -0.09~-0.06 ~ 0.04~0.12 | SOD-323 | ||
| MM3Z2V0 ~ MM3Z120 | 2.0 ~ 120 | 5 ~ 1 | 1.8~2.15 ~ 114~127 | 100 ~ 900 | 5 ~ 1 | 120 ~ 0.2 | 0.5 ~ 91 | -0.09~-0.06 ~ 0.05~0.12 | SOD-323 | ||
Brand: JF
Package: SOD-323 Plastic
Manufacturer: Jinan Jingheng Electronics Co., Ltd.
Features:
· Total power dissipation:max.300 mW
· Small plastic package suitable for surface mounted design
· Tolerance approximately ±5%
· High temperature soldering guaranteed:260ºC/10 seconds at terminals
· Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC
Application:
Used in power supply, lighting, auto, home appliance field
