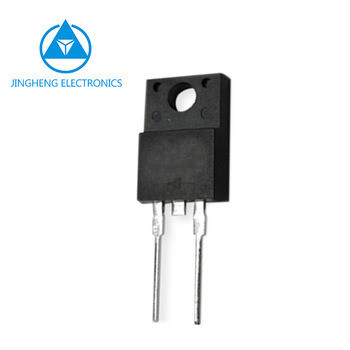

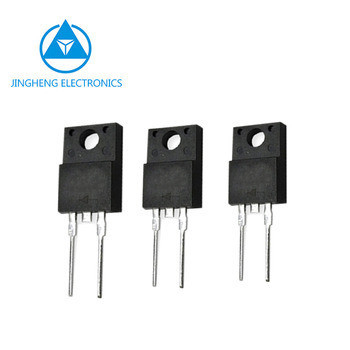

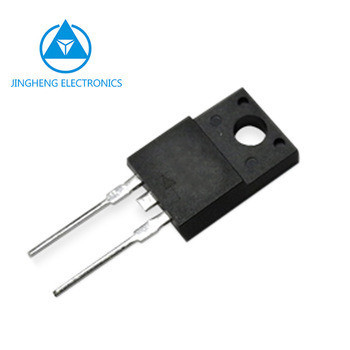

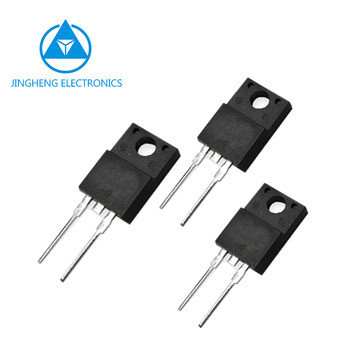

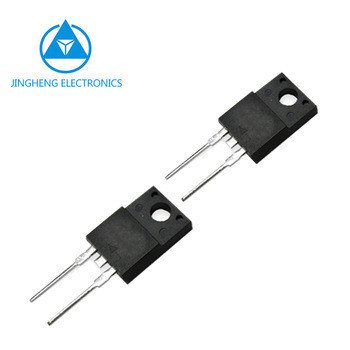

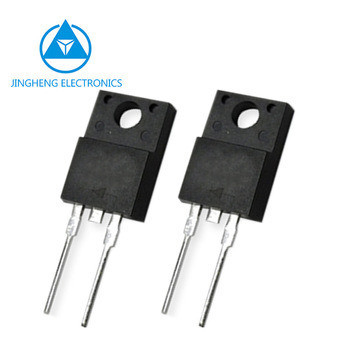

ITO-220AC Package MURF1060 Super Fast Rectifier Diode for High Power Performance
Product Details:
| Place of Origin: | China |
| Certification: | ISO9001:2015, ISO14001:2015, IATF16949 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3,000 Pieces |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, PayPal |
| Supply Ability: | 10000000000piece/Year |
|
Detail Information |
|||
| Model NO.: | MURF1060 | Structure: | GPP Chip |
|---|---|---|---|
| Material: | Silicon | Transport Package: | Tube |
| Specification: | High Power Package | Trademark: | JF |
| Origin: | China | HS Code: | 85411000 |
| Supply Ability: | 10000000000piece/Year | ||
Product Description
SCHOTTKY BARRIER RECTIFIER DIODES
Electronics Component
Part Number: MURF1020 THRU MURF1060 (MURF1020/MURF1040/MURF1060)
Major Parameters:
| Type | VRRM | IF | IR(25ºC) | IR(100ºC) | IR(125ºC) | VF | Trr | Outline |
| V | A | μA | uA | uA | V | nS | ||
| MURF1020 | 200 | 10.0 | 5.0 | 50 | 0.975 | 35 | ITO-220AC | |
| MURF1040 | 400 | 10.0 | 5.0 | 50 | 1.3 | 35 | ||
| MURF1060 | 600 | 10.0 | 5.0 | 50 | 1.7 | 35 | ||
| MURFS1060 | 600 | 10.0 | 5.0 | 50 | 2.4 | 25 |
Package: ITO-220AC
Manufacturer: Jinan Jingheng Electronics Co., Ltd.
Features:
· Plastic package has Underwriters Laboratory Flammability Classification 94V-0
· Single rectifier construction
· High surge capability
· For use in low voltage ,high frequency inverters, free wheeling ,and polarity protection applications
· High temperature soldering guaranteed:2 0 C/10 seconds, 0.25"(6.35mm)from case
· Fast switching for high efficiency
· Low forward voltage drop
· Component in accordance to RoHS 2002 95 EC and WEEE 2002 96 EC
Application:
Used in power supply, lighting, auto, home appliance field
