8A Super Fast Rectifier Diode MUR820M2/MUR840M2/MUR860M2/MUR880M2/MUR8120M2 for Needs
Product Details:
| Place of Origin: | China |
| Certification: | ISO9001:2015, ISO14001:2015, IATF16949 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3,000 Pieces |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, PayPal |
| Supply Ability: | 10000000000piece/Year |
|
Detail Information |
|||
| Model NO.: | MUR860M2 | Luminous Intensity: | NO LIGHT |
|---|---|---|---|
| Color: | NO LIGHT | Structure: | Alloy |
| Material: | Silicon | TYPE: | FAST REVOERY |
| CURRENT: | 8A | VOLTAGE: | 200-1200V |
| LOGO: | JF OR JH | Transport Package: | Tube |
| Specification: | High Power Package | Trademark: | JF, JH |
| Origin: | China | HS Code: | 85411000 |
| Supply Ability: | 10000000000piece/Year | Package Size: | 5.58cm * 1.48cm * 0.38cm |
| Package Gross Weight: | 0.002kg | ||
Product Description
LOW VF SCHOTTKY BARRIER RECTIFIER DIODES
Electronics Component
Part Number: MUR820M2/MUR840M2/MUR860M2/MUR880M2/MUR8120M2
Major Parameter:
| Type | VRRM | IF | IR(25ºC) | IR(100ºC) | IR(125ºC) | VF | Trr | Outline |
| V | A | μA | uA | uA | V | nS | ||
| MUR820M2 | 200 | 8.0 | 5.0 | 50 | 0.975 | 35 | TO-252 | |
| MUR840M2 | 400 | 8.0 | 5.0 | 50 | 1.3 | 35 | ||
| MUR860M2 | 600 | 8.0 | 5.0 | 50 | 1.7 | 35 | ||
| MUR880M2 | 800 | 8.0 | 5.0 | 50 | 2.4 | 45 | ||
| MUR8120M2 | 1200 | 8.0 | 5.0 | 50 | 3.30 | 50 |

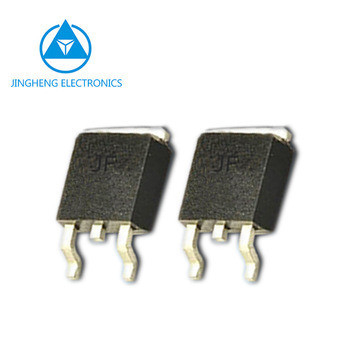

Package: TO-252
Manufacturer: Jinan Jingheng Electronics Co., Ltd.
Features:
Features:
· Plastic package has Underwriters Laboratory Flammability Classification 94V-0
· Low Reverse Leakage Current
· High surge capability
· High temperature soldering guaranteed:2 0 C/10 seconds, 0.25"(6.35mm)from case
· Fast switching for high efficiency
· Low forward voltage drop
· Component in accordance to RoHS 2011 65 EU
Application:
Used in power supply, lighting, auto, home appliance field
