Super Fast Rectifier Diode MURF820/MURF840/MURF860/MURF880/MURF8120 in High Power Package
Product Details:
| Place of Origin: | China |
| Certification: | ISO9001:2015, ISO14001:2015, IATF16949 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3,000 Pieces |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, PayPal |
| Supply Ability: | 10000000000piece/Year |
|
Detail Information |
|||
| Model NO.: | MURF860 | Structure: | GPP Chip |
|---|---|---|---|
| Material: | Silicon | Transport Package: | Tube |
| Specification: | High Power Package | Trademark: | JF, JH |
| Origin: | China | HS Code: | 85411000 |
| Supply Ability: | 10000000000piece/Year | ||
Product Description
SUPER FAST RECTIFIER DIODES
Electronics Component
Part Number: MURF820 THRU MURF8120
Major Parameter:
| Type | VRRM | IF | IR(25ºC) | IR(100ºC) | IR(125ºC) | VF | Trr | Outline |
| V | A | μA | uA | uA | V | nS | ||
| MURF820 | 200 | 8.0 | 5.0 | 50 | 0.975 | 35 | ITO-220AC | |
| MURF840 | 400 | 8.0 | 5.0 | 50 | 1.3 | 35 | ||
| MURF860 | 600 | 8.0 | 5.0 | 50 | 1.7 | 35 | ||
| MURFS860 | 600 | 8.0 | 5.0 | 50 | 2.3 | 25 | ||
| MURF880 | 800 | 8.0 | 5.0 | 50 | 2.4 | 45 | ||
| MURF8120 | 1200 | 8.0 | 5.0 | 50 | 3.30 | 50 | ||
| MURFS8120 | 1200 | 8.0 | 5.0 | 50 | 3.30 | 50 |
Brand: JF logo/ JH logo

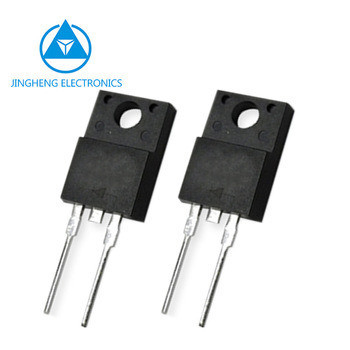

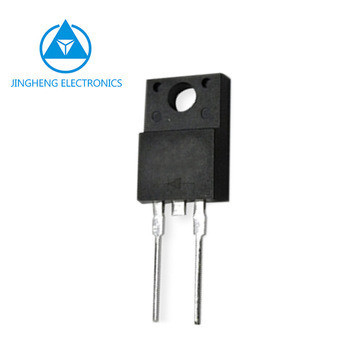

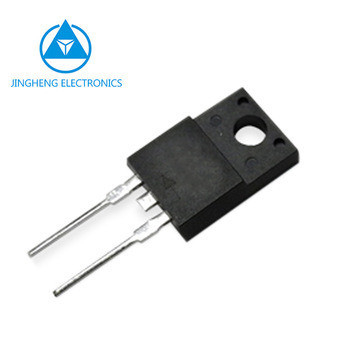

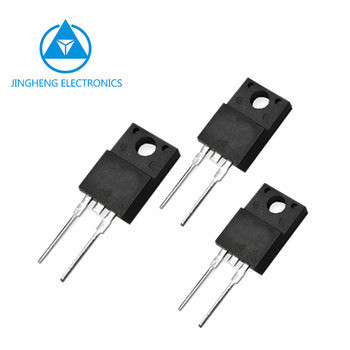

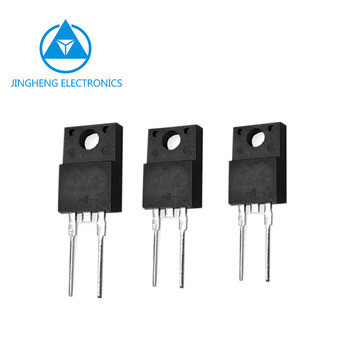

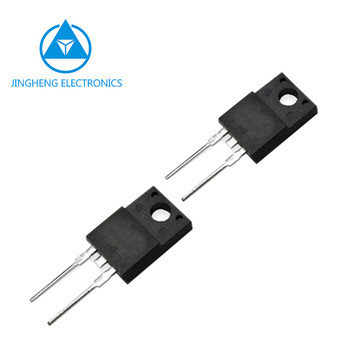

Package: ITO-220AC package, 2PINS
Manufacturer: Jinan Jingheng Electronics Co., Ltd.
Features:
Plastic package has Underwriters Laboratory Flammability Classification 94V-0
Single rectifier construction
High surge capability
For use in low voltage ,high frequency inverters, free wheeling ,and polarity protection applications
High temperature soldering guaranteed:2 0 C/10 seconds, 0.25"(6.35mm)from case
Fast switching for high efficiency
Low forward voltage drop
Component in accordance to RoHS 2011 65 EU
Application:
Used in power supply, lighting, auto, home appliance field
