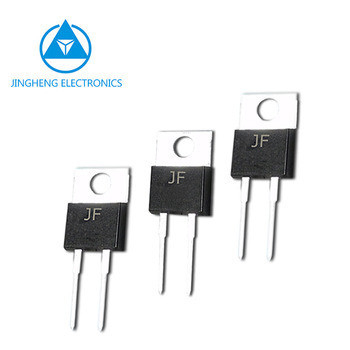

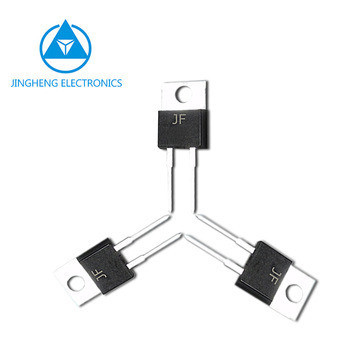

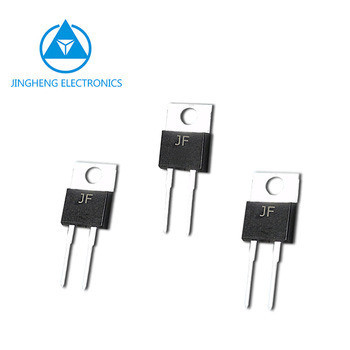

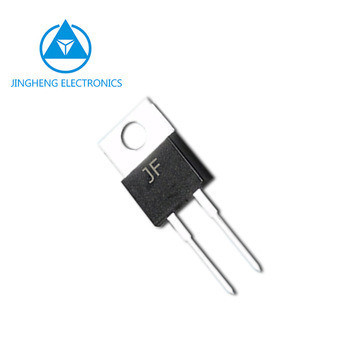

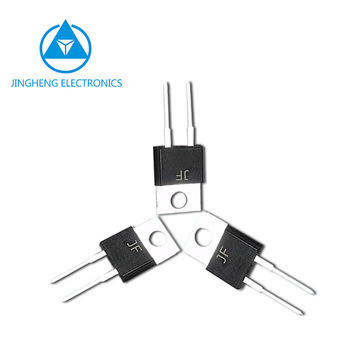

Automotive Applications MUR560 Super Fast Rectifier Diode with Metal Sealed Structure
Product Details:
| Place of Origin: | China |
| Certification: | ISO9001:2015, ISO14001:2015, IATF16949 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3,000 Pieces |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, PayPal |
| Supply Ability: | 10000000000piece/Year |
|
Detail Information |
|||
| Model NO.: | MUR560 | Structure: | Metal Sealed |
|---|---|---|---|
| Material: | Silicon | Transport Package: | Tube |
| Specification: | High Power Package | Trademark: | JF, JH |
| Origin: | China | HS Code: | 85411000 |
| Supply Ability: | 10000000000piece/Year | Package Size: | 30.00cm * 40.00cm * 40.00cm |
| Package Gross Weight: | 8.000kg | ||
Product Description
SUPER FAST RECTIFIER DIODES
Electronics Component
Part Number: MUR520 THRU MUR560
Major Parameter:
Reverse Voltage - 200 -600 Volts
Forward Current - 5.0Amperes
| Type | VRRM | IF | IR(25ºC) | IR(100ºC) | IR(125ºC) | VF | Trr | Outline |
| V | A | μA | uA | uA | V | nS | ||
| MUR520 | 200 | 5.0 | 5.0 | 50 | 0.975 | 35 | TO-220AC | |
| MUR530 | 300 | 5.0 | 5.0 | 50 | 1.3 | 35 | ||
| MUR540 | 400 | 5.0 | 5.0 | 50 | 1.3 | 35 | ||
| MUR560 | 600 | 5.0 | 5.0 | 50 | 1.7 | 35 | ||
| MURF520 | 200 | 5.0 | 5.0 | 50 | 0.975 | 35 | ITO-220AC | |
| MURF540 | 400 | 5.0 | 5.0 | 50 | 1.3 | 35 | ||
| MURF560 | 600 | 5.0 | 5.0 | 50 | 1.7 | 35 |

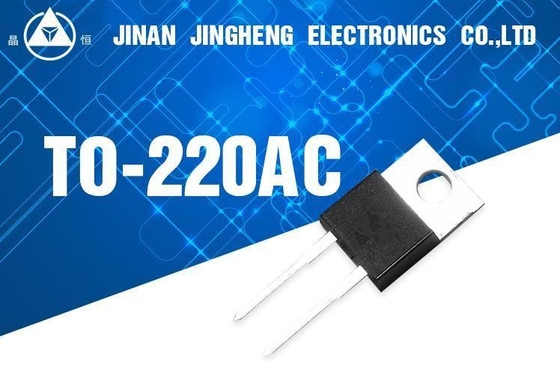

Package: TO-220AC
Manufacturer: Jinan Jingheng Electronics Co., Ltd.
Features:
* Pastic package has Underwriters Laboratory Flammability Classification 94V-0
* Single rectifier construction
* High surge capability
* For use in low voltage ,high frequency inverters, free wheeling ,and polarity protection applications
* High temperature soldering guaranteed:2 0 C/10 seconds, 0.25"(6.35mm)from case
* Fast switching for high efficiency
* Low forward voltage drop
* Component in accordance to RoHS 2011 65 EU
Application:
Used in power supply, lighting, auto, home appliance field
