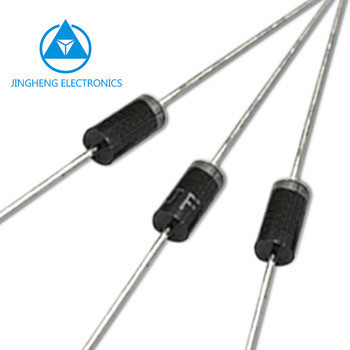

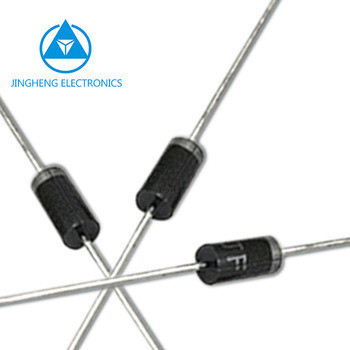

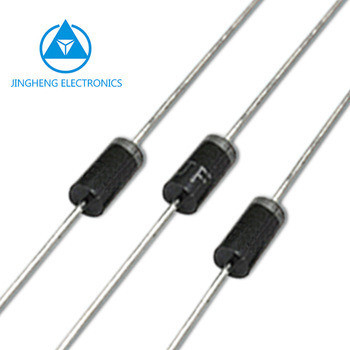

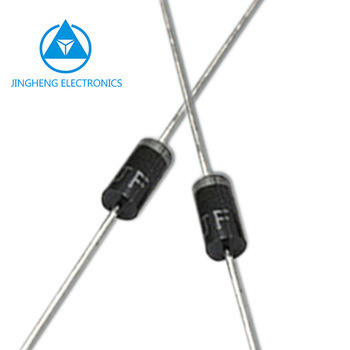

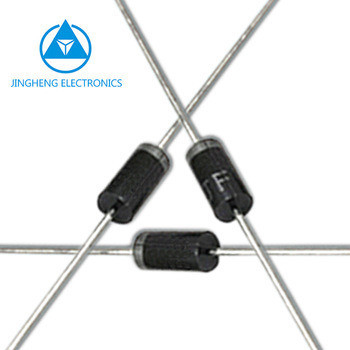

DO-201AD Package Silicon GPP Junction Fast Recovery Diode SF51G/SF54G/SF56G/SF57G/SF58G
Product Details:
| Place of Origin: | China |
| Certification: | ISO9001:2015, ISO14001:2015, IATF16949 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3,000 Pieces |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, PayPal |
| Supply Ability: | 10000000000piece/Year |
|
Detail Information |
|||
| Model NO.: | SF58G | Structure: | GPP JUNCTION |
|---|---|---|---|
| Material: | Silicon | Transport Package: | Ammo Box |
| Specification: | Through Hole | Trademark: | JF |
| Origin: | China | HS Code: | 85411000 |
| Supply Ability: | 10000000000piece/Year | ||
Product Description
SUPER FAST RECTIFIER DIODES
Electronics Component
Part Number: SF51G THRU SF58G (GPP JUNCTION)
Major Parameter:
Reverse Voltage: 50 to 00 Volts6
Forward Current: 5.0Amperes
| Type | VRRM | IF | IR(25ºC) | IR(100ºC) | IR(125ºC) | VF | Trr | Outline |
| V | A | μA | uA | uA | V | nS | ||
| SF51/SF51G | 50 | 5.0 | 5.0 | 50 | 0.95 | 35 | DO-201AD | |
| SF54/SF54G | 200 | 5.0 | 5.0 | 50 | 0.95 | 35 | ||
| SF56/SF56G | 400 | 5.0 | 5.0 | 50 | 1.3 | 35 | ||
| SF57/SF57G | 500 | 5.0 | 5.0 | 50 | 1.7 | 35 | ||
| SF58/SF58G | 600 | 5.0 | 5.0 | 50 | 1.7 | 35 |
Brand: JF
Package: DO-201AD Plastic
Manufacturer: Jinan Jingheng Electronics Co., Ltd.
Features:
>Low forward voltage drop
>High current capability
>High reliability
>High surge current capability
>Lead (Pb)-free component
>Component in accordance to RoHS 2011 65 EU
>High temperature soldering guaranteed:260 C/10 seconds at terminals
Application:
Used in power supply, lighting, auto, home appliance field
