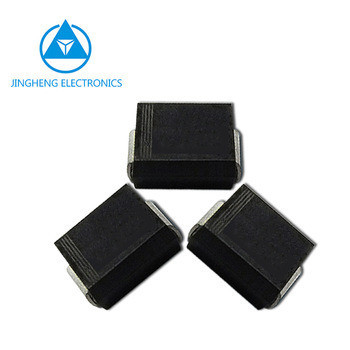

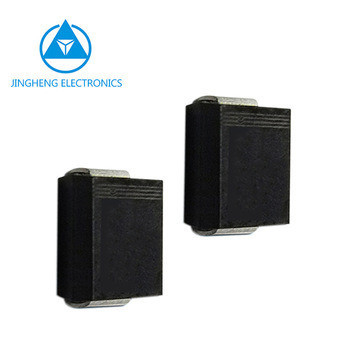

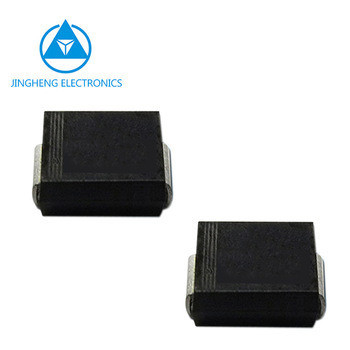

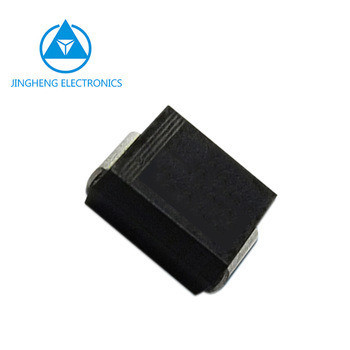

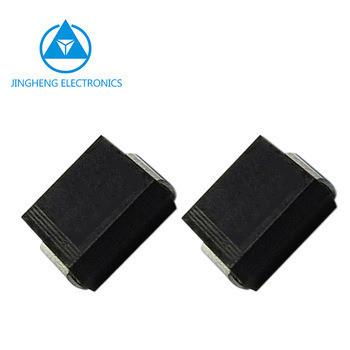

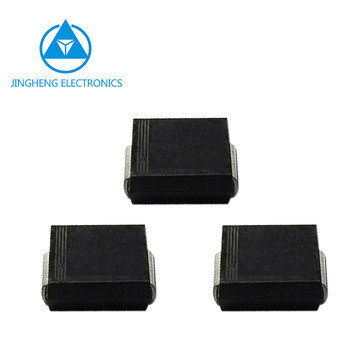

Exceptional Performance ES3J Silicon Super Fast Rectifier Diode with SMB Package
Product Details:
| Place of Origin: | China |
| Certification: | ISO9001:2015, ISO14001:2015, IATF16949 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3,000 Pieces |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, PayPal |
| Supply Ability: | 10000000000piece/Year |
|
Detail Information |
|||
| Model NO.: | ES3J | Structure: | GPP Junction |
|---|---|---|---|
| Material: | Silicon | Transport Package: | Tape Reel |
| Specification: | Surface Mount Package | Trademark: | JF |
| Origin: | China | HS Code: | 85411000 |
| Supply Ability: | 10000000000piece/Year | ||
Product Description
GLASS PASSIVATED JUNCTION SUPER FAST RECTIFIER DIODE
Electronics Component
Part Number: ES3A THRU ES3K
Major Parameter:
| Type | VRRM | IF | IR(25ºC) | IR(100ºC) | IR(125ºC) | VF | Trr | Outline |
| V | A | μA | uA | uA | V | nS | ||
| ES3A | 50 | 3.0 | 5.0 | 100 | 0.95 | 35 | SMB ( DO-214AA ) | |
| ES3G | 400 | 3.0 | 5.0 | 100 | 1.25 | 35 | ||
| ES3J | 600 | 3.0 | 5.0 | 100 | 1.7 | 35 | ||
| ES3K | 800 | 3.0 | 5.0 | 100 | 2.2 | 35 |
Brand: JF
Package: SMB /DO-214AA Plastic
Manufacturer: Jinan Jingheng Electronics Co., Ltd.
Features:
Plastic package has Underwriters Laboratory Flammability Classification 94V-0
Glass passived junction
Low power loss, high efficiency
High surge current capability
High speed switching, Low leakage
Low forward voltage drop
High current capability, High reliability
High temperature soldering guaranteed:260 C/10 seconds at terminals
Component in accordance to RoHS 2011 65 EU
Application:
Used in power supply, lighting, auto, home appliance field
