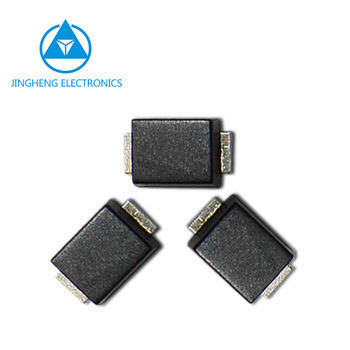

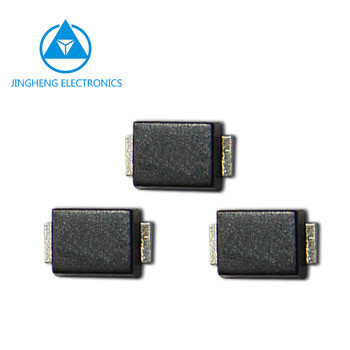

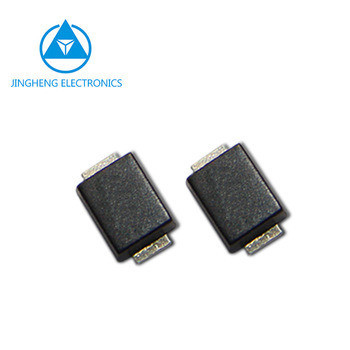

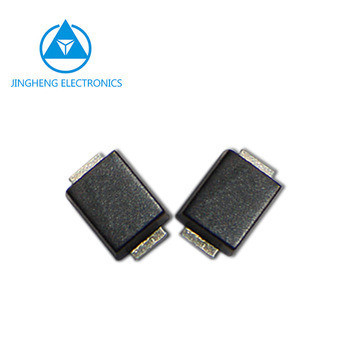

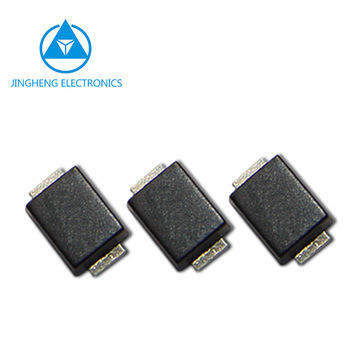

ES1AS/ES1DS/ES1GS/ES1JS SUPER FAST RECOVERY DIODE WITH SMAF PACKAGE FOR SILICON CIRCUITS
Product Details:
| Place of Origin: | China |
| Certification: | ISO9001:2015, ISO14001:2015, IATF16949 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3,000 Pieces |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, PayPal |
| Supply Ability: | 10000000000piece/Year |
|
Detail Information |
|||
| Model NO.: | ES1JS | Structure: | GPP Chip |
|---|---|---|---|
| Material: | Silicon | Transport Package: | Carton |
| Specification: | SURFACE MOUNT DIODE | Trademark: | JF |
| Origin: | China | HS Code: | 85411000 |
| Supply Ability: | 10000000000piece/Year | ||
Product Description
SURFACE MOUNT GLASS PASSIVATED JUNCTION
SUPER FAST RECOVERY RECTIFIER
MADE IN CHINA JF BRAND
MADE IN CHINA JF BRAND
Part Number: ES1AS THRU ES1JS
Major Parameter: 1A
| Type | VRRM | IF | IR(25ºC) | IR(100ºC) | IR(125ºC) | VF | Trr | Outline |
| V | A | μA | uA | uA | V | nS | ||
| ES1A | 50 | 1.0 | 5.0 | 100 | 0.95 | 35 | SMA | |
| ES1D | 200 | 1.0 | 5.0 | 100 | 0.95 | 35 | ||
| ES1G | 400 | 1.0 | 5.0 | 100 | 1.25 | 35 | ||
| ES1J | 600 | 1.0 | 5.0 | 100 | 1.7 | 35 | ||
| ES1K | 800 | 1.0 | 5.0 | 100 | 1.7 | 100 | ||
| ES1M | 1000 | 1.0 | 5.0 | 100 | 1.7 | 100 | ||
| ES1AS | 50 | 1.0 | 5.0 | 100 | 0.95 | 35 | SMAF | |
| ES1DS | 200 | 1.0 | 5.0 | 100 | 0.95 | 35 | ||
| ES1GS | 400 | 1.0 | 5.0 | 100 | 1.25 | 35 | ||
| ES1JS | 600 | 1.0 | 5.0 | 100 | 1.7 | 35 |
Package: SMAF Plastic
Manufacturer: Jinan Jingheng Electronics Co., Ltd.
Features:
*Glass passivated cavity-free junction
*Ideal for surface mount automotive applications
*Ultrafast recovery time for high efficiency
*Built-in strain relief
*Easy pick and place
*Plastic package has Underwriters Laboratory Flammability
*Classification 94V-0
*Lead (Pb)-free component
*Component in accordance to RoHS 2011/65/EU
*High temperature soldering guaranteed:260 C/10 seconds at terminals
Application:
Used in power supply, lighting, auto, home appliance field
