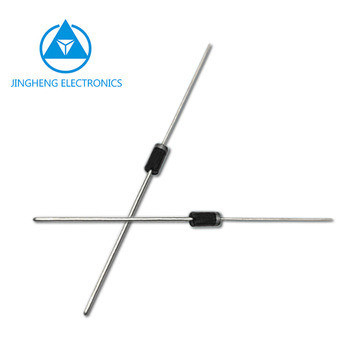

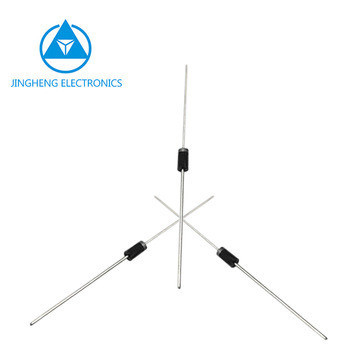

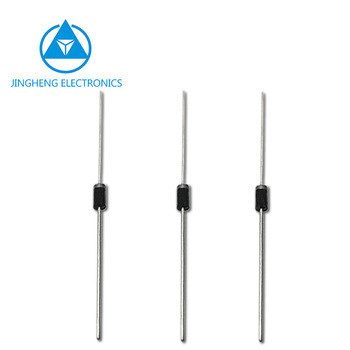

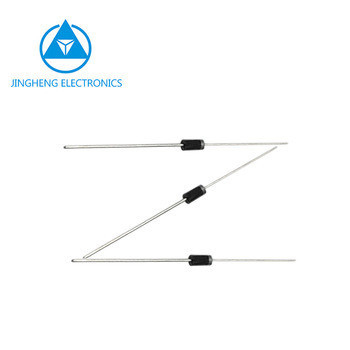

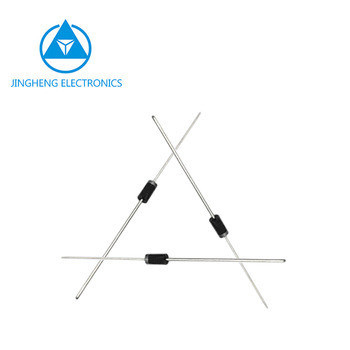

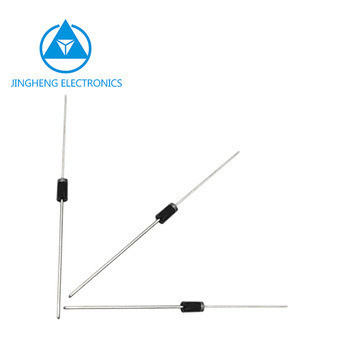

GPP Chip Silicon SF11G/SF14G/SF16G/SF17G/SF18G Super Fast Rectifier Diodes DO-41 Package
Product Details:
| Place of Origin: | China |
| Certification: | ISO9001:2015, ISO14001:2015, IATF16949 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3,000 Pieces |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, PayPal |
| Supply Ability: | 10000000000piece/Year |
|
Detail Information |
|||
| Model NO.: | SF18G | Structure: | GPP Chip |
|---|---|---|---|
| Material: | Silicon | Transport Package: | Ammo Box |
| Specification: | Through Hole | Trademark: | JF |
| Origin: | China | HS Code: | 85411000 |
| Supply Ability: | 10000000000piece/Year | ||
Product Description
SUPER FAST RECTIFIER DIODES
Electronics Component
Part Number: SF11G THRU SF18G (GLASS PASSIVATED TECHNOLOGY)
Major Parameter: Reverse Voltage: 50 to 1000 Volts
| Type | VRRM | IF | IR(25ºC) | IR(100ºC) | IR(125ºC) | VF | Trr | Outline |
| V | A | μA | uA | uA | V | nS | ||
| SF11/SF11G | 50 | 1.0 | 5.0 | 100 | 0.95 | 35 | DO-41 | |
| SF14/SF14G | 200 | 1.0 | 5.0 | 100 | 0.95 | 35 | ||
| SF16/SF16G | 400 | 1.0 | 5.0 | 100 | 1.3 | 35 | ||
| SF17/SF17G | 500 | 1.0 | 5.0 | 100 | 1.7 | 35 | ||
| SF18/SF18G | 600 | 1.0 | 5.0 | 100 | 1.7 | 35 | ||
| MUR120 | 200 | 1.0 | 5.0 | 50 | 0.875 | 25 | DO-15 | |
| MUR140 | 400 | 1.0 | 5.0 | 50 | 1.25 | 50 | ||
| MUR160 | 600 | 1.0 | 5.0 | 50 | 1.25 | 50 | ||
| ES1A | 50 | 1.0 | 5.0 | 100 | 0.95 | 35 | SMA | |
| ES1D | 200 | 1.0 | 5.0 | 100 | 0.95 | 35 | ||
| ES1G | 400 | 1.0 | 5.0 | 100 | 1.25 | 35 | ||
| ES1J | 600 | 1.0 | 5.0 | 100 | 1.7 | 35 | ||
| ES1K | 800 | 1.0 | 5.0 | 100 | 1.7 | 100 | ||
| ES1M | 1000 | 1.0 | 5.0 | 100 | 1.7 | 100 | ||
| ES1AS | 50 | 1.0 | 5.0 | 100 | 0.95 | 35 | SMAF | |
| ES1DS | 200 | 1.0 | 5.0 | 100 | 0.95 | 35 | ||
| ES1GS | 400 | 1.0 | 5.0 | 100 | 1.25 | 35 | ||
| ES1JS | 600 | 1.0 | 5.0 | 100 | 1.7 | 35 | ||
| E1A | 50 | 1.0 | 5.0 | 100 | 0.95 | 35 | SOD-123FL | |
| E1D | 200 | 1.0 | 5.0 | 100 | 0.95 | 35 | ||
| E1G | 400 | 1.0 | 5.0 | 100 | 1.25 | 35 | ||
| E1J | 600 | 1.0 | 5.0 | 100 | 1.7 | 35 |
Brand: JF
Package: DO-41 Plastic
Manufacturer: Jinan Jingheng Electronics Co., Ltd.
Features:
>Low forward voltage drop
>High current capability
>High reliability
>High surge current capability
>Lead (Pb)-free component
>Component in accordance to RoHS 2011 65 EU
>High temperature soldering guaranteed:260 C/10 seconds at terminals
Application:
Used in power supply, lighting, auto, home appliance field
