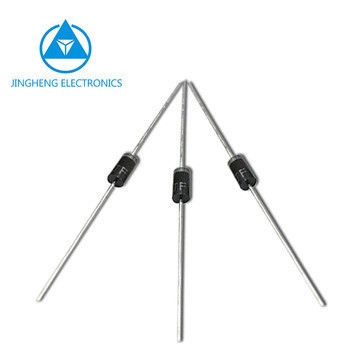

HER207 2A CURRENT RECTIFIER DIODE WITH DO-15 PACAKGE FOR HIGH TEMPERATURE APPLICATIONS
Product Details:
| Place of Origin: | China |
| Certification: | ISO9001:2015, ISO14001:2015, IATF16949 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3,000 Pieces |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, PayPal |
| Supply Ability: | 10000000000piece/Year |
|
Detail Information |
|||
| Model NO.: | HER207 | Structure: | Alloy |
|---|---|---|---|
| Material: | Silicon | Transport Package: | Ammo Box |
| Specification: | Through Hole | Trademark: | JF |
| Origin: | China | HS Code: | 85411000 |
| Supply Ability: | 10000000000piece/Year | ||
Product Description
HIGH EFFICIENCY RECTIFIER
Electronics Component
Part Number: HER201 THRU HER208
Major Parameter:
| Type | VRRM | IF | IR(25ºC) | IR(100ºC) | IR(125ºC) | VF | Trr | Outline |
| V | A | μA | uA | uA | V | nS | ||
| HER201 | 50 | 2.0 | 5.0 | 100 | 1.0 | 50 | DO-15 | |
| HER205 | 400 | 2.0 | 5.0 | 100 | 1.3 | 50 | ||
| HER206 | 600 | 2.0 | 5.0 | 100 | 1.7 | 75 | ||
| HER207 | 800 | 2.0 | 5.0 | 100 | 1.7 | 75 | ||
| HER208 | 1000 | 2.0 | 5.0 | 100 | 1.7 | 75 |
Brand: JF
Package: DO-15 Plastic
Manufacturer: Jinan Jingheng Electronics Co., Ltd.
Features:
Plastic package has Underwriters Laboratory Flammability
Classification 94V-0
Low power loss, high efficiency
High surge current capability
High speed switching, Low leakage
Low forward voltage drop
High current capability, High reliability
High temperature soldering guaranteed:260 C/10 seconds at terminals
Component in accordance to RoHS 2011 65 EU
Application:
Used in power supply, lighting, auto, home appliance field
