HER301/HER305/HER306/HER307/HER308 3Amps Silicon Rectifier Diode in DO-201AD Package
Product Details:
| Place of Origin: | China |
| Certification: | ISO9001:2015, ISO14001:2015, IATF16949 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3,000 Pieces |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, PayPal |
| Supply Ability: | 10000000000piece/Year |
|
Detail Information |
|||
| Model NO.: | HER307 | Material: | Silicon |
|---|---|---|---|
| Transport Package: | Ammo Box | Specification: | Through Hole |
| Trademark: | JF | Origin: | China |
| HS Code: | 85411000 | Supply Ability: | 10000000000piece/Year |
Product Description
HIGH EFFICIENCY RECTIFIER DIODE
Part Number: HER301 THRU HER308
Major Parameter:
| Type | VRRM | IF | IR(25ºC) | IR(100ºC) | IR(125ºC) | VF | Trr | Outline |
| V | A | μA | uA | uA | V | nS | ||
| HER301 | 50 | 3.0 | 5.0 | 100 | 1.0 | 50 | DO-201AD | |
| HER305 | 400 | 3.0 | 5.0 | 100 | 1.3 | 50 | ||
| HER306 | 600 | 3.0 | 5.0 | 100 | 1.7 | 75 | ||
| HER307 | 800 | 3.0 | 5.0 | 100 | 1.7 | 75 | ||
| HER308 | 1000 | 3.0 | 5.0 | 100 | 1.7 | 75 |

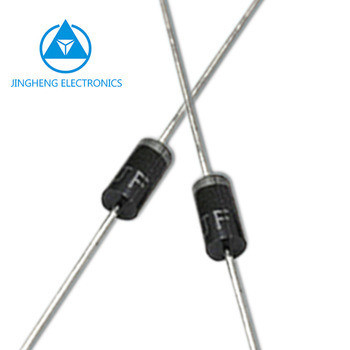

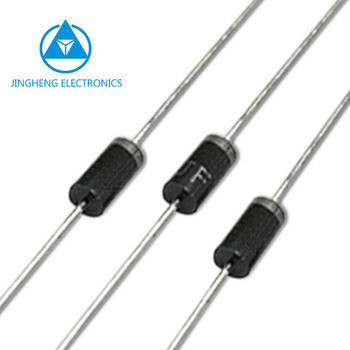

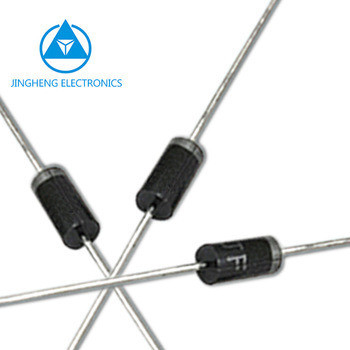

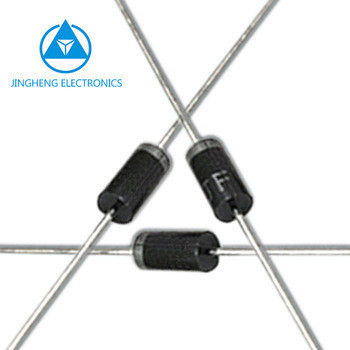

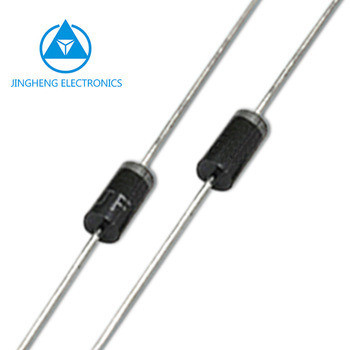

Package: DO-201AD Through Hole Plastic
Manufacturer: Jinan Jingheng Electronics Co., Ltd.
Features:
Plastic package has Underwriters Laboratory Flammability
Classification 94V-0
Low power loss, high efficiency
Low leakage
Diffused junction
High current capability
Low forward voltage drop
/ /
°
High temperature soldering guaranteed:260 C/10 seconds at terminals
Component in accordance to RoHS 2011 65 EU
Application:
Used in power supply, lighting, auto, home appliance field
