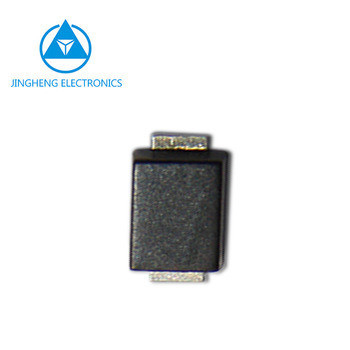

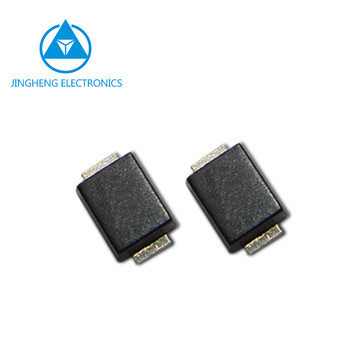

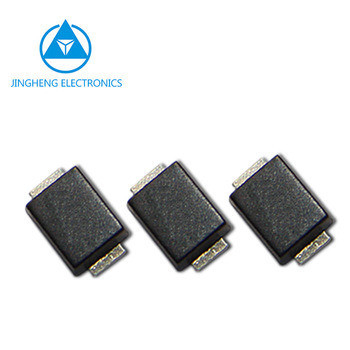

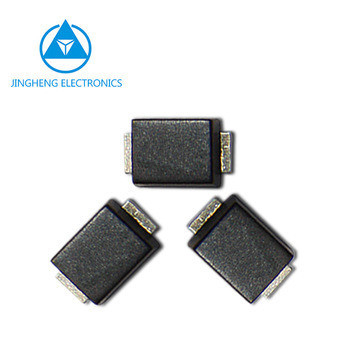

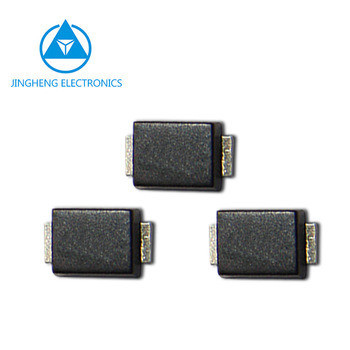

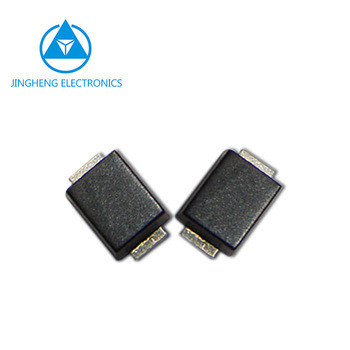

1A SMAF Package Glass Passivated Junction Rectifier Diode US1AS/US1DS/US1GS/US1JS/US1KS/US1MS
Product Details:
| Place of Origin: | China |
| Certification: | ISO9001:2015, ISO14001:2015, IATF16949 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3,000 Pieces |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, PayPal |
| Supply Ability: | 10000000000piece/Year |
|
Detail Information |
|||
| Model NO.: | US1JS | Structure: | Alloy |
|---|---|---|---|
| Material: | Silicon | CURRENT: | 1A |
| VOLTAGE: | 200-1000V | PACKAGE: | SMAF |
| LOGO: | JF AND JH | Transport Package: | Tape Reel |
| Specification: | LOW TRR | Trademark: | JF |
| Origin: | China | HS Code: | 85411000 |
| Supply Ability: | 10000000000piece/Year | Package Size: | 5.58cm * 1.48cm * 0.38cm |
| Package Gross Weight: | 0.001kg | ||
Product Description
GLASS PASSIVATED JUNCTION HIGH EFFICIENCY RECTIFIER
Electronics Component
Part Number:US1AS THRU US1MS
Major Parameter:
| Type | VRRM | IF | IR(25ºC) | IR(100ºC) | IR(125ºC) | VF | Trr | Outline |
| V | A | μA | uA | uA | V | nS | ||
| US1AS | 50 | 1.0 | 5.0 | 50 | 1.0 | 50 | SMAF | |
| US1DS | 200 | 1.0 | 5.0 | 50 | 1.0 | 50 | ||
| US1GS | 400 | 1.0 | 5.0 | 50 | 1.4 | 50 | ||
| US1JS | 600 | 1.0 | 5.0 | 50 | 1.7 | 75 | ||
| US1KS | 800 | 1.0 | 5.0 | 50 | 1.7 | 75 | ||
| US1MS | 1000 | 1.0 | 5.0 | 50 | 1.7 | 75 |
Brand: JF
Package: SMAF
Manufacturer: Jinan Jingheng Electronics Co., Ltd.
Features:
Plastic package has Underwriters Laboratory Flammability Classification 94V-0
Glass passived junction
Low power loss, high efficiency
High surge current capability
High speed switching, Low leakage
Low forward voltage drop
High current capability, High reliability
High temperature soldering guaranteed:260 C/10 seconds at terminals
Component in accordance to RoHS 2011 65 EU
Application:
Used in power supply, lighting, auto, home appliance field
