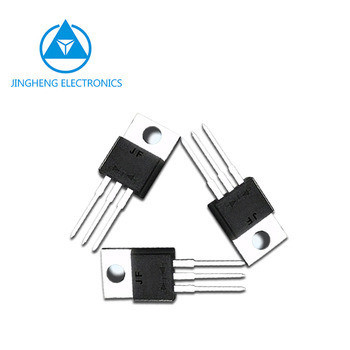

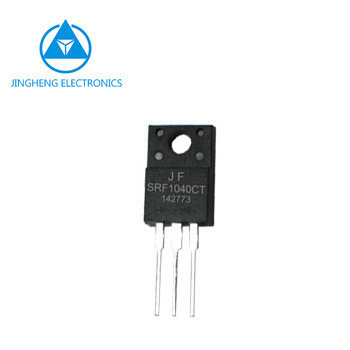

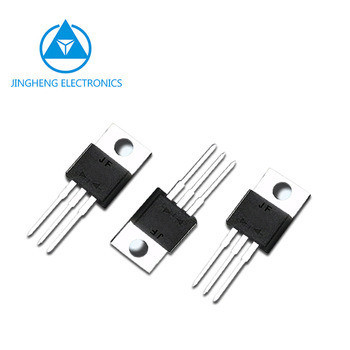

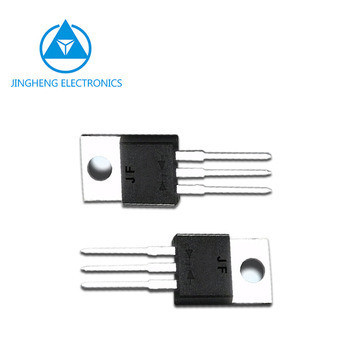

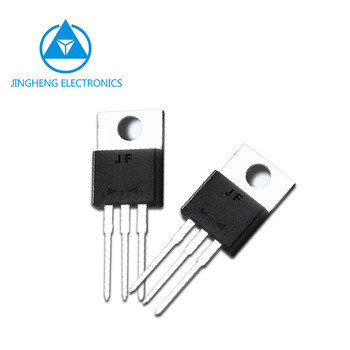

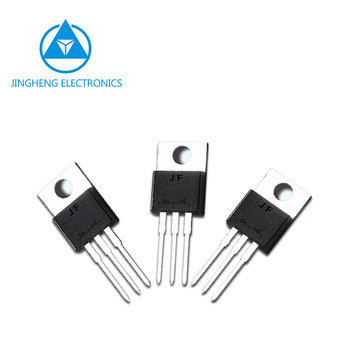

TO-220F Package Silicon MOSFET for Industrial Applications 2N70/4N70/6N70/10N70/20N70
Product Details:
| Place of Origin: | China |
| Certification: | ISO9001:2015, ISO14001:2015, IATF16949 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3,000 Pieces |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, PayPal |
| Supply Ability: | 10000000000piece/Year |
|
Detail Information |
|||
| Model NO.: | 6N70 | Luminous Intensity: | NO LIGHT |
|---|---|---|---|
| Color: | NO LIGHT | Structure: | Planar |
| Material: | Silicon | Voltage: | 700v |
| Current: | 2A-20A | Package: | ITO-220 |
| LOGO: | JF OR JH | Transport Package: | Tube |
| Specification: | High Power | Trademark: | JF, JH |
| Origin: | China | HS Code: | 85411000 |
| Supply Ability: | 10000000000piece/Year | Package Size: | 5.58cm * 1.48cm * 0.38cm |
| Package Gross Weight: | 0.001kg | ||
Product Description
N-Channel Power MOSFET
Electronics Component
Part Number: 2N70/4N70/6N70/10N70/20N70
Major Parameter:
| Type | Channel | VDSS(V) (MAX) | ID(A) (MAX) | PD(W) (MAX) | VGS(V) (MAX) | VTH(V) | Rds(on)(Ω) @10V (Typ) | Rds(on)(Ω) @10V (max) | Rds(on)(Ω) @4.5V(Typ) | ESD protection for G-S(Y/N) | Outline code |
| 2N70 | N | 700 | 2.0 | ±30 | 2~4 | 6.5 | TO-220AB ITO-220AB:F TO-263:D TO-252:M TO-262:E TO-251:N TO-247:P SOP-8:S | ||||
| 4N70 | N | 700 | 4.0 | ±30 | 2~4 | 2.8 | |||||
| 6N70 | N | 700 | 6.0 | ±30 | 2~4 | 1.6 | |||||
| 20N70 | N | 700 | 20.0 | ±30 | 2~4 | 0.37 | 0.5 | ||||
| 10N70 | N | 800 | 10.0 | ±30 | 2~4 | 1.1 |
Brand: JF / JH
Package: ITO-220AB/ TO-220AB/ TO-263/ TO-252/ TO-262/ TO-251/ TO-247
Manufacturer: Jinan Jingheng Electronics Co., Ltd.
Features:
· Fast switching capability
· Lead free in compliance with EU RoHS directive.
· Improved dv dt capability high ruggedness
Application:
Used in power supply, lighting, auto, home appliance field
