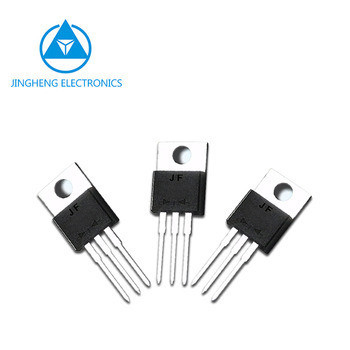

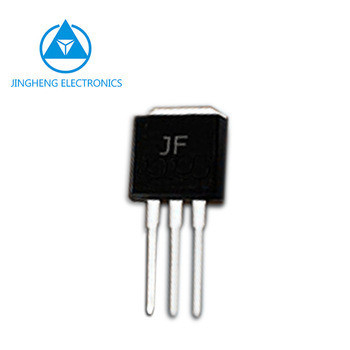

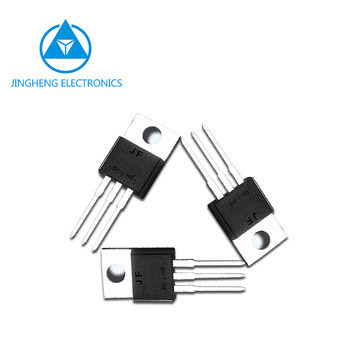

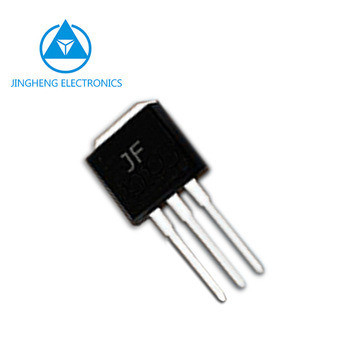

Planar N-Channel MOSFET 2N65/4N65/4NE65/6N65/7N65/7NE65/8N65/12N65/20N65 for Industrial
Product Details:
| Place of Origin: | China |
| Certification: | ISO9001:2015, ISO14001:2015, IATF16949 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3,000 Pieces |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, PayPal |
| Supply Ability: | 10000000000piece/Year |
|
Detail Information |
|||
| Model NO.: | 7N65 | Luminous Intensity: | NO LIGHT |
|---|---|---|---|
| Color: | NO LIGHT | Structure: | Planar |
| Material: | Silicon | CURRENT: | 7-20A |
| VOLTAGE: | 650V | POLARITY: | N CHANNEL |
| LOGO: | JF JH | Transport Package: | Tube |
| Specification: | High Power | Trademark: | JF, JH |
| Origin: | China | HS Code: | 85411000 |
| Supply Ability: | 10000000000piece/Year | Package Size: | 5.58cm * 1.48cm * 0.38cm |
| Package Gross Weight: | 0.001kg | ||
Product Description
N-Channel Power MOSFET
Electronics Component
Part Number: 2N60/4N60/4NE60/6N60/7N60/8N60/10N60/12N60
Major Parameter:
| Type | Channel | VDSS(V) | ID(A) (MAX) | PD(W) (MAX) | VGS(V) (MAX) | VTH(V) | @10V (Typ) Rds(on)(Ω) | @10V (max) Rds(on)(Ω) | @4.5V(Typ) Rds(on)(Ω) | ESD protection for G-S(Y/N) | Outline code |
| 2N65 | N | 650 | 2.0 | ±30 | 2~4 | 4.4 | TO-220AB:None ITO-220AB:F TO-263:D TO-252:M TO-262:E TO-251:N TO-247:P SOP-8:S | ||||
| 4N65 | N | 650 | 4.0 | ±30 | 2~4 | 2.4 | |||||
| 4NE65 | N | 650 | 4.0 | ±30 | 2~4 | 2.8 | Y | ||||
| 5N65 | N | 650 | 4.5 | ±30 | 2~4 | 2.4 | 2.8 | ||||
| 5NE65 | N | 650 | 4.5 | ±30 | 2~4 | 2.3 | 2.8 | Y | |||
| 6N65 | N | 650 | 6.0 | ±30 | 2~4 | 1.7 | |||||
| 7N65 | N | 650 | 7.0 | ±30 | 2~4 | 1.5 | |||||
| 7NE65 | N | 650 | 7.0 | ±30 | 2~4 | 1.4 | Y | ||||
| 8NE65 | N | 650 | 7.5 | ±30 | 2~4 | 1.2 | 1.4 | Y | |||
| 8N65 | N | 650 | 8.0 | ±30 | 2~4 | 1.4 | |||||
| 10N65 | N | 650 | 10.0 | ±30 | 2~4 | 0.85 | 1.0 | ||||
| 12N65 | N | 650 | 12.0 | ±30 | 2~4 | 0.85 | |||||
| 20N65 | N | 650 | 20.0 | ±30 | 2~4 | 0.5 |
Brand: JF / JH
Package: ITO-220AB/ TO-220AB/ TO-263/ TO-252/ TO-262/ TO-251/ TO-247
Manufacturer: Jinan Jingheng Electronics Co., Ltd.
Features:
· Fast switching capability
· Lead free in compliance with EU RoHS directive.
· Improved dv dt capability high ruggedness
Application:
Used in power supply, lighting, auto, home appliance field
