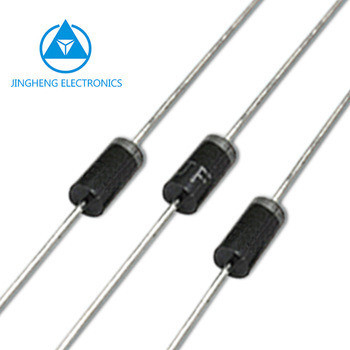

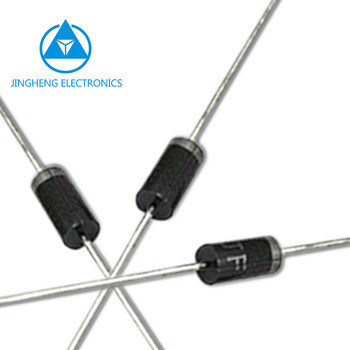

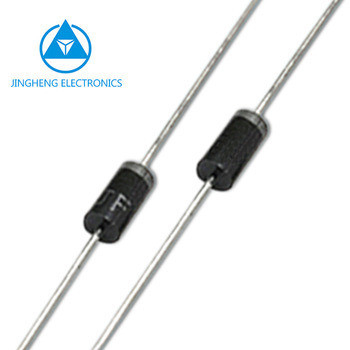

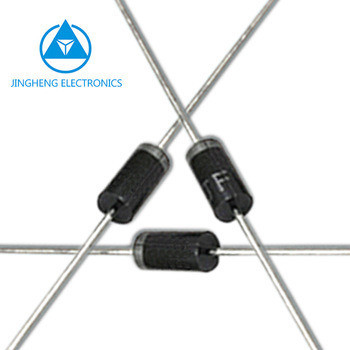

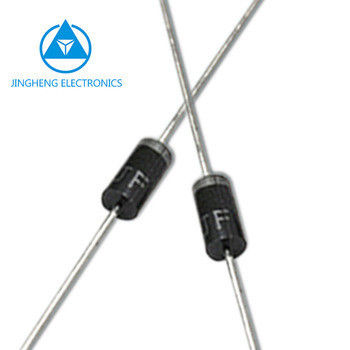

SR15100L LOW VF SCHOTTKY DIODE SR1045L/SR1060L/SR1080L DO-201AD PACKAGE FOR PRODUCTS
Product Details:
| Place of Origin: | China |
| Certification: | ISO9001:2015, ISO14001:2015, IATF16949 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3,000 Pieces |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, PayPal |
| Supply Ability: | 10000000000piece/Year |
|
Detail Information |
|||
| Model NO.: | SR15100L | Structure: | Alloy |
|---|---|---|---|
| Material: | Silicon | Transport Package: | Through Hole |
| Specification: | LOW VF FORWARD | Trademark: | JF |
| Origin: | China | HS Code: | 85411000 |
| Supply Ability: | 10000000000piece/Year | ||
Product Description
LOW FORWARD VOLTAGE SCHOTTKY BARRIER RECTIFIER DIODES
Electronics Component
Part Number: SR1045L THRU SR15100L
Major Parameter:
| Type | VRRM | IF | IR(25ºC) | IR(100ºC) | IR(125ºC) | VF | HBM | MM | Tj | Outline |
| V | A | uA | mA | mA | V | KV | KV | ºC | ||
| SR1545L | 45 | 15 | 200 | 15 | 0.52 | 8 | 4 | 150 | DO-201AD | |
| SR1560L | 60 | 15 | 150 | 10 | 0.58 | 8 | 4 | 150 | ||
| SR1580L | 80 | 15 | 100 | 5 | 0.65 | 8 | 4 | 150 | ||
| SR15100L | 100 | 15 | 100 | 10 | 0.72 | 8 | 4 | 150 |
Brand: JF
Package: DO-201AD
Manufacturer: Jinan Jingheng Electronics Co., Ltd.
Features:
· Metal silicon junction, majority carrier conduction
· Guard ring for overvoltage protection
· Low power loss, high effciency
· High surge capability, low forward voltage drop
· Surface mount outline
Application:
Used in power supply, lighting, auto, home appliance field
