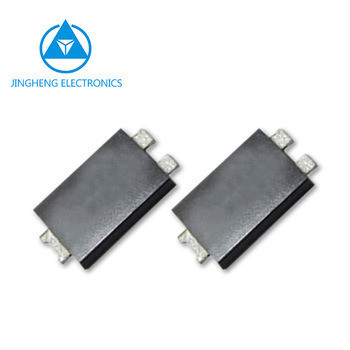

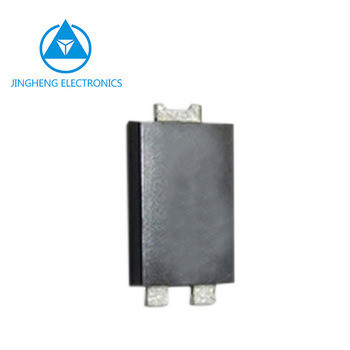

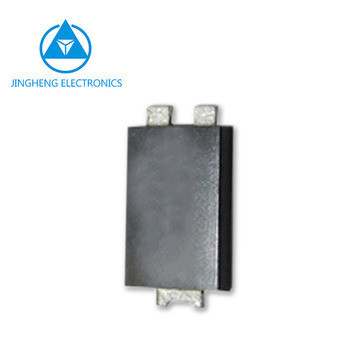

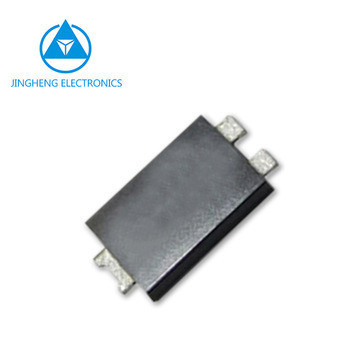

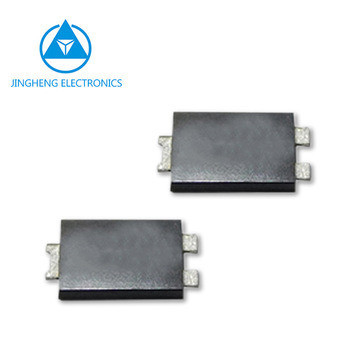

SP8U100L LOW VF SCHOTTKY DIODE WITH TO277 PACKAGE VRRM 100V FOR OPTIMIZED PERFORMANCE
Product Details:
| Place of Origin: | China |
| Certification: | ISO9001:2015, ISO14001:2015, IATF16949 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3,000 Pieces |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, PayPal |
| Supply Ability: | 10000000000piece/Year |
|
Detail Information |
|||
| Model NO.: | SP8U100L | Luminous Intensity: | None Luminance |
|---|---|---|---|
| Color: | None Luminance | Structure: | Alloy |
| Material: | Silicon | IF: | 8A |
| VRRM: | 100V | Transport Package: | Through Hole |
| Specification: | LOW VF FORWARD | Trademark: | JF |
| Origin: | China | HS Code: | 85411000 |
| Supply Ability: | 10000000000piece/Year | Package Size: | 20.00cm * 40.00cm * 15.00cm |
| Package Gross Weight: | 8.000kg | ||
Product Description
LOW FORWARD VOLTAGE SCHOTTKY BARRIER RECTIFIER DIODES
Electronics Component
Part Number: SP8U100L
Major Parameter:
| Type | VRRM | IF | IR(25ºC) | IR(100ºC) | IR(125ºC) | VF | HBM | MM | Tj | Outline |
| V | A | uA | mA | mA | V | KV | KV | ºC | ||
| SR840L | 40 | 8 | 200 | 10 | 0.47 | 8 | 4 | 150 | DO-201AD | |
| SR860L | 60 | 8 | 150 | 10 | 0.55 | 8 | 4 | 150 | ||
| SR8100L | 100 | 8 | 50 | 5 | 0.70 | 8 | 4 | 150 | ||
| SR8150L | 150 | 8 | 10 | 3 | 0.82 | 8 | 2 | 150 | ||
| SR8200L | 200 | 8 | 10 | 3 | 0.85 | 8 | 2 | 150 | ||
| SS810LC | 100 | 8 | 50 | 5 | 0.65 | 8 | 4 | 150 | SMC | |
| SP8U100L | 100 | 8 | 50 | 5 | 0.65 | 8 | 4 | 150 | TO-277 |
Brand: JF
Package: SMC
Manufacturer: Jinan Jingheng Electronics Co., Ltd.
Features:
· Metal silicon junction, majority carrier conduction
· Guard ring for overvoltage protection
· Low power loss, high effciency
· High surge capability, low forward voltage drop
· Surface mount outline
Application:
Used in power supply, lighting, auto, home appliance field
