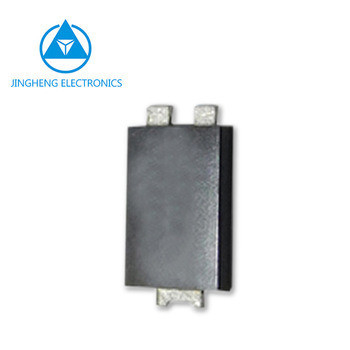

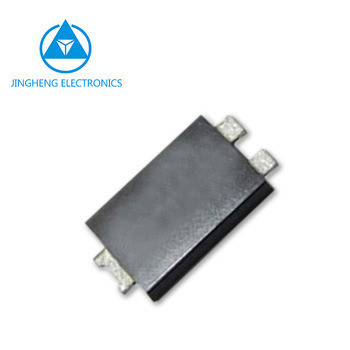

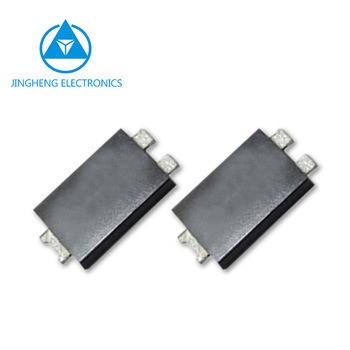

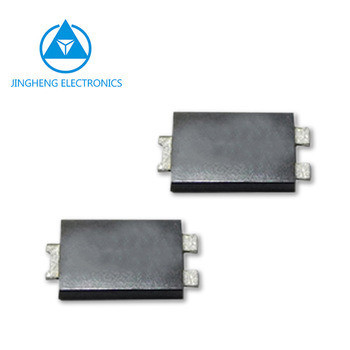

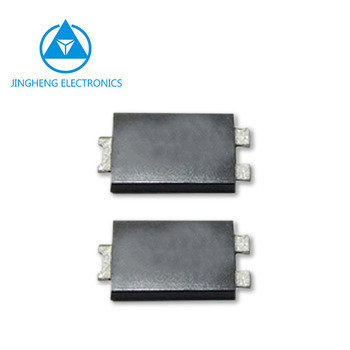

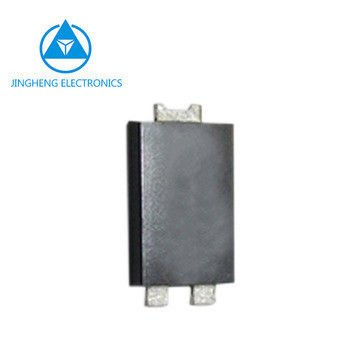

SP15U45SL/SP15U50SL/SP15U60SL/SP15U100SL/SP15U120L Silicon Schottky Diode with Low Vf
Product Details:
| Place of Origin: | China |
| Certification: | ISO9001:2015, ISO14001:2015, IATF16949 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3,000 Pieces |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, PayPal |
| Supply Ability: | 10000000000piece/Year |
|
Detail Information |
|||
| Model NO.: | SP15U45SL | Structure: | Alloy |
|---|---|---|---|
| Material: | Silicon | Transport Package: | Tape Reel |
| Specification: | Surface Mount Package | Trademark: | JF |
| Origin: | China | HS Code: | 85411000 |
| Supply Ability: | 10000000000piece/Year | ||
Product Description
LOW FORWARD VOLTAGE SCHOTTKY BARRIER RECTIFIER DIODES
Electronics Component
Part Number: SP15U45L THRU SP15U120L
Major Parameter:
| TYPE | VRRM | IF | IR(25ºC) | VF | HBM | Tj | Outline |
| V | A | uA | V | KV | ºC | ||
| SP15U45SL | 45 | 15 | 200 | 0.47 | 8 | 150 | TO-277 |
| SP15U50L | 50 | 15 | 200 | 0.50 | 8 | 150 | |
| SP15U50SL | 50 | 15 | 200 | 0.48 | 8 | 150 | |
| SP15U60L | 60 | 15 | 150 | 0.58 | 8 | 150 | |
| SP15U100L | 100 | 15 | 100 | 0.72 | 8 | 150 | |
| SP15U120L | 120 | 15 | 50 | 0.85 | 8 | 150 |
Brand: JF / JH
Package: TO-277
Manufacturer: Jinan Jingheng Electronics Co., Ltd.
Features:
· Metal silicon junction, majority carrier conduction
· Guard ring for overvoltage protection
· Low power loss, high effciency
· High surge capability, low forward voltage drop
· Surface mount outline
Application:
Used in power supply, lighting, auto, home appliance field
