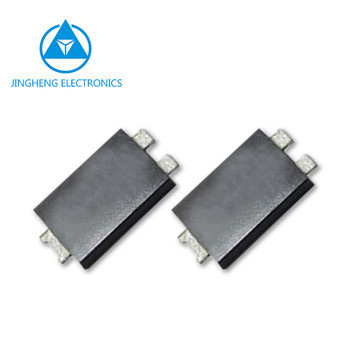

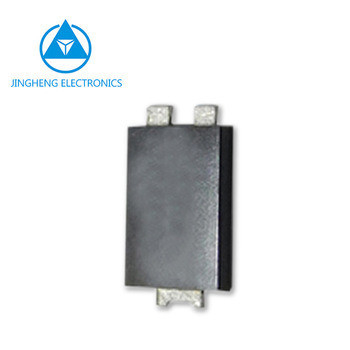

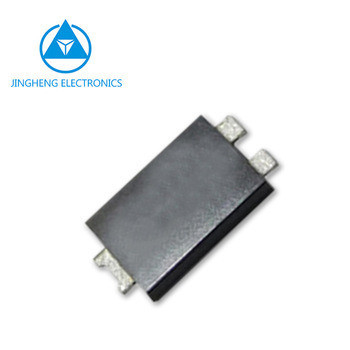

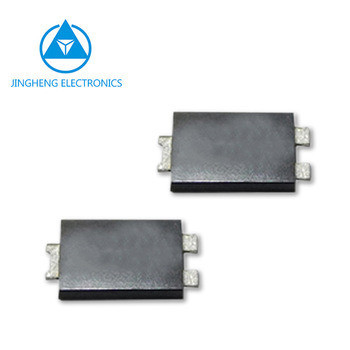

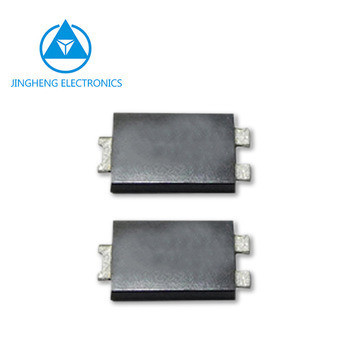

TO-277 Package SP10U45L 10A Low Vf Schottky Diode for High Frequency Applications
Product Details:
| Place of Origin: | China |
| Certification: | ISO9001:2015, ISO14001:2015, IATF16949 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3,000 Pieces |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, PayPal |
| Supply Ability: | 10000000000piece/Year |
|
Detail Information |
|||
| Model NO.: | SP10U45L | Luminous Intensity: | NO LIGHT |
|---|---|---|---|
| Color: | NO LIGHT | Structure: | Alloy |
| Material: | Silicon | CURRENT: | 10A |
| VOLTAGE: | 45-100V | PACKAGE: | TO-277 |
| LOGO: | JF OR JH | Transport Package: | Tape Reel |
| Specification: | Surface Mount Package | Trademark: | JF |
| Origin: | China | HS Code: | 85411000 |
| Supply Ability: | 10000000000piece/Year | Package Size: | 3.50cm * 3.50cm * 1.30cm |
| Package Gross Weight: | 0.001kg | ||
Product Description
LOW FORWARD VOLTAGE SCHOTTKY BARRIER RECTIFIER DIODES
Electronics Component
Part Number: SP10U45L THRU SP10U200L
Major Parameter:
| TYPE | VRRM | IF | IR(25ºC) | VF | HBM | Tj | Outline |
| V | A | uA | V | KV | ºC | ||
| SP10U45L | 45 | 10 | 100 | 0.51 | 8 | 150 | TO-277 |
| SP10U45L-T | 45 | 10 | 200 | 0.45 | 8 | 150 | |
| SP10U60L | 60 | 10 | 150 | 0.55 | 8 | 150 | |
| SP10U80L | 80 | 10 | 100 | 0.65 | 8 | 150 | |
| SP10U100L | 100 | 10 | 50 | 0.70 | 8 | 150 | |
| SP10U150L | 150 | 10 | 10 | 0.88 | 8 | 150 | |
| SP10U150SL | 150 | 10 | 50 | 0.83 | 8 | 150 | |
| SP10U200L | 200 | 10 | 20 | 0.93 | 8 | 150 |
Brand: JF / JH
Package: TO-277
Manufacturer: Jinan Jingheng Electronics Co., Ltd.
Features:
· Metal silicon junction, majority carrier conduction
· Guard ring for overvoltage protection
· Low power loss, high effciency
· High surge capability, low forward voltage drop
· Surface mount outline
Application:
Used in power supply, lighting, auto, home appliance field
