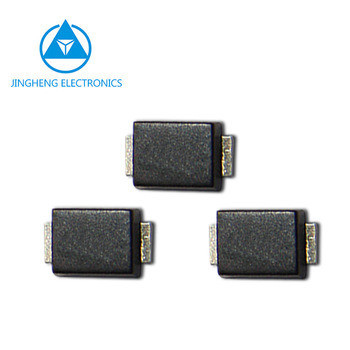

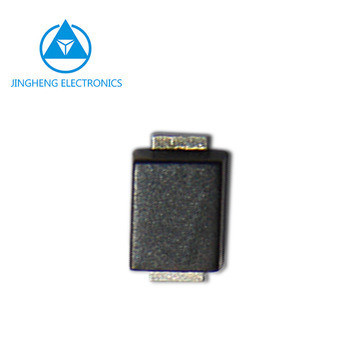

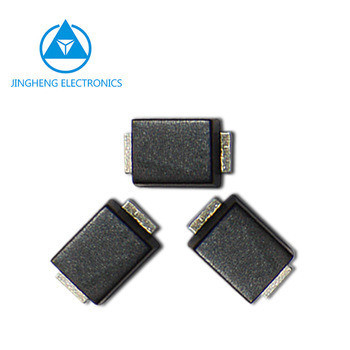

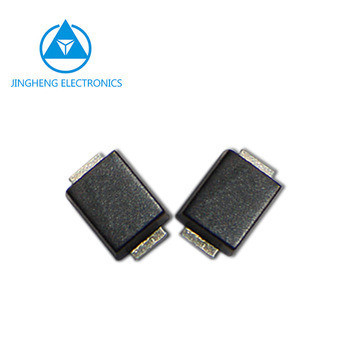

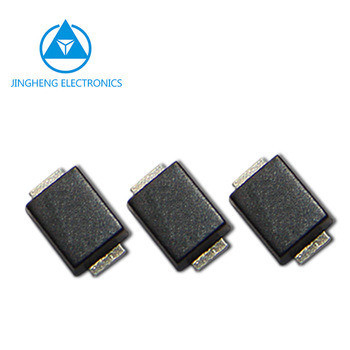

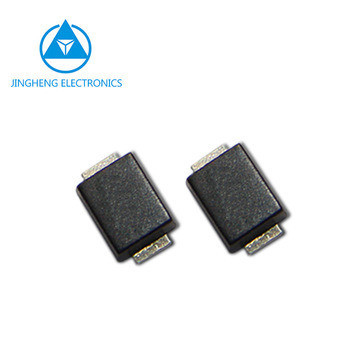

Alloy Structure SS54LS Series 5A Low VF Schottky Barrier Rectifier Diode with SMAF Package
Product Details:
| Place of Origin: | China |
| Certification: | ISO9001:2015, ISO14001:2015, IATF16949 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3,000 Pieces |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, PayPal |
| Supply Ability: | 10000000000piece/Year |
|
Detail Information |
|||
| Model NO.: | SS54LS | Structure: | Alloy |
|---|---|---|---|
| Material: | Silicon | Transport Package: | Tape Reel |
| Specification: | LOW VF FORWARD | Trademark: | JF |
| Origin: | China | HS Code: | 85411000 |
| Supply Ability: | 10000000000piece/Year | ||
Product Description
LOW FORWARD VOLTAGE SCHOTTKY BARRIER RECTIFIER DIODES
Electronics Component
Part Number: SS54LS THRU SS520LS
Major Parameter:
| TYPE | VRRM | IF | IR(25ºC) | VF | HBM | Tj | Outline |
| V | A | uA | V | KV | ºC | ||
| SS54LS | 40 | 5 | 200 | 0.47 | 8 | 150 | SMAF |
| SS54SLS | 40 | 5 | 200 | 0.47 | 8 | 150 | |
| SS56LS | 60 | 5 | 100 | 0.52 | 8 | 150 | |
| SS56SLS | 60 | 5 | 150 | 0.52 | 8 | 150 | |
| SS58LS | 80 | 5 | 100 | 0.65 | 8 | 150 | |
| SS58SLS | 80 | 5 | 100 | 0.58 | 8 | 150 | |
| SS510LS | 100 | 5 | 50 | 0.71 | 8 | 150 | |
| SS515LS | 150 | 5 | 20 | 0.82 | 8 | 150 | |
| SS520LS | 200 | 5 | 20 | 0.85 | 8 | 150 |
Brand: JF
Package: SMAF
Manufacturer: Jinan Jingheng Electronics Co., Ltd.
Features:
· Metal silicon junction, majority carrier conduction
· Guard ring for overvoltage protection
· Low power loss, high effciency
· High surge capability, low forward voltage drop
· Surface mount outline
Application:
Used in power supply, lighting, auto, home appliance field
