NO LIGHT 20A Low Vf Schottky Diode SR2045LCT/SR2060LCT/SR2080LCT/SR20100LCT/SR20120LCT/SR20150LCT/SR20200LCT
Product Details:
| Place of Origin: | China |
| Certification: | ISO9001:2015, ISO14001:2015, IATF16949 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3,000 Pieces |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, PayPal |
| Supply Ability: | 10000000000piece/Year |
|
Detail Information |
|||
| Model NO.: | SR2045LCT | Luminous Intensity: | NO LIGHT |
|---|---|---|---|
| Color: | NO LIGHT | Structure: | Alloy |
| Material: | Silicon | CURRENT: | 20A |
| VOLTAGE: | 45-200V | TYPE: | LOW VF |
| LOGO: | JF AND JH | Transport Package: | Tube |
| Specification: | High Power | Trademark: | JF |
| Origin: | China | HS Code: | 85411000 |
| Supply Ability: | 10000000000piece/Year | Package Size: | 4.00cm * 3.50cm * 1.30cm |
| Package Gross Weight: | 0.001kg | ||
Product Description
LOW FORWARD VOLTAGE SCHOTTKY BARRIER RECTIFIER DIODES
Electronics Component
Part Number: SR2045LCT THRU SR20200LCT
Major Parameter:
| TYPE | VRRM | IF | IR(25ºC) | VF | HBM | Tj | Outline |
| V | A | uA | V | KV | ºC | ||
| SR2045LCT | 45 | 20 | 200 | 0.52 | 8 | 150 | TO-220AB |
| SR2060LCT | 60 | 20 | 150 | 0.55 | 8 | 150 | |
| SR2080LCT | 80 | 20 | 200 | 0.62 | 8 | 150 | |
| SR2080SLCT | 80 | 20 | 100 | 0.60 | 8 | 150 | |
| SR20100LCT | 100 | 20 | 50 | 0.70 | 8 | 150 | |
| SR20100SLCT | 100 | 20 | 50 | 0.65 | 8 | 150 | |
| SR20120LCT | 120 | 20 | 50 | 0.85 | 8 | 150 | |
| SR20150LCT | 150 | 20 | 20 | 0.80 | 8 | 150 | |
| SR20200LCT | 200 | 20 | 20 | 0.87 | 8 | 150 |
Brand: JF / JH

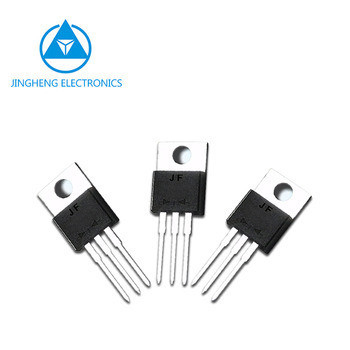

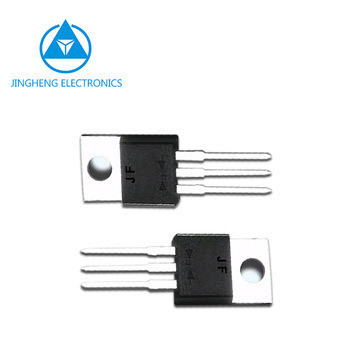

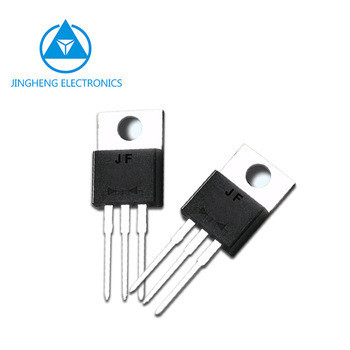

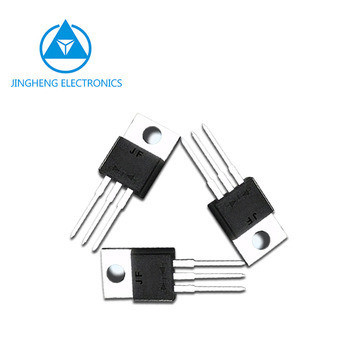

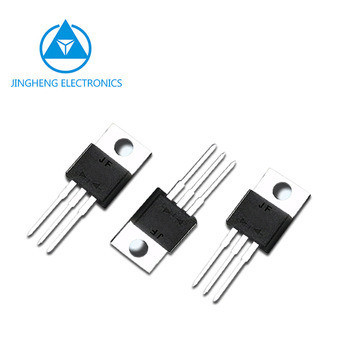

Package: TO-220AB
Manufacturer: Jinan Jingheng Electronics Co., Ltd.
Features:
· Metal silicon junction, majority carrier conduction
· Guard ring for overvoltage protection
· Low power loss, high effciency
· High surge capability, low forward voltage drop
· Surface mount outline
Application:
Used in power supply, lighting, auto, home appliance field
