SR1045LM1/SR1060LM1/SR10100LM1/SR10150LM1/SR10200LM1 Series Low Vf Schottky Diode
Product Details:
| Place of Origin: | China |
| Certification: | ISO9001:2015, ISO14001:2015, IATF16949 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3,000 Pieces |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, PayPal |
| Supply Ability: | 10000000000piece/Year |
|
Detail Information |
|||
| Model NO.: | SR10200LM1 | Structure: | Alloy |
|---|---|---|---|
| Material: | Silicon | Transport Package: | Tube |
| Specification: | High Power | Trademark: | JF |
| Origin: | China | HS Code: | 85411000 |
| Supply Ability: | 10000000000piece/Year | Package Size: | 30.00cm * 40.00cm * 30.00cm |
| Package Gross Weight: | 8.000kg | ||
Product Description
LOW FORWARD VOLTAGE SCHOTTKY BARRIER RECTIFIER DIODES
Electronics Component
Part Number: SR1045LM1 THRU SR10200LM1
Major Parameter:
| TYPE | VRRM | IF | IR(25ºC) | VF | HBM | Tj | Outline |
| V | A | uA | V | KV | ºC | ||
| SR1045LM1 | 45 | 10 | 200 | 0.45 | 8 | 150 | TO-252 |
| SR1060LM1 | 60 | 10 | 150 | 0.55 | 8 | 150 | |
| SR10100LM1 | 100 | 10 | 50 | 0.71 | 8 | 150 | |
| SR10100SLM1 | 100 | 10 | 50 | 0.65 | 8 | 150 | |
| SR10150LM1 | 150 | 10 | 10 | 0.80 | 8 | 150 | |
| SR10200LM1 | 200 | 10 | 10 | 0.85 | 8 | 150 |
Brand: JF / JH

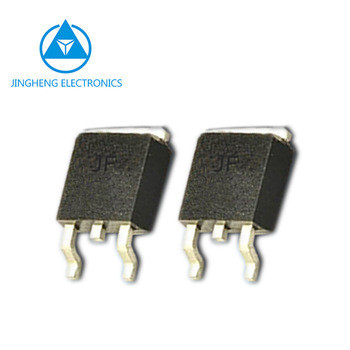

Package: TO-252
Manufacturer: Jinan Jingheng Electronics Co., Ltd.
Features:
· Metal silicon junction, majority carrier conduction
· Guard ring for overvoltage protection
· Low power loss, high effciency
· High surge capability, low forward voltage drop
· Surface mount outline
Application:
Used in power supply, lighting, auto, home appliance field
