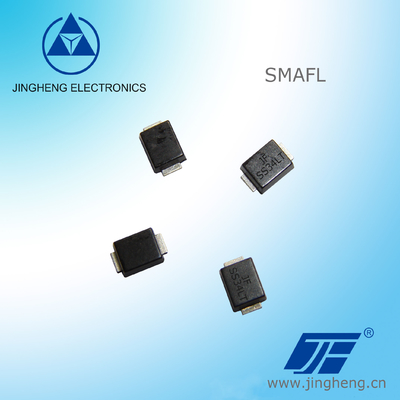

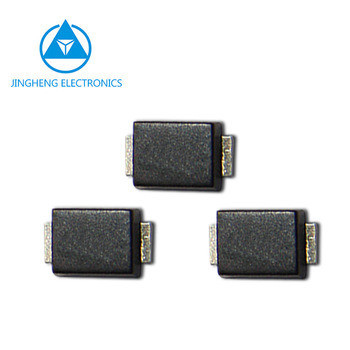

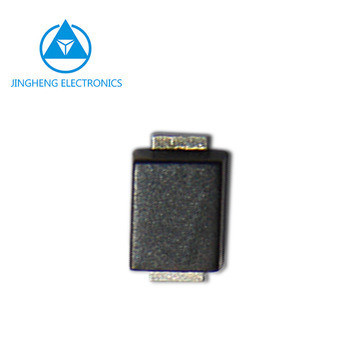

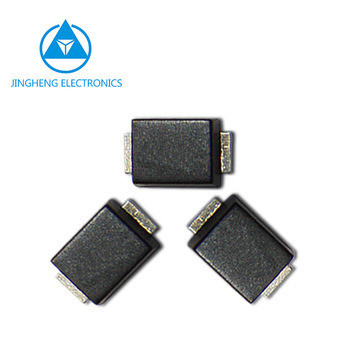

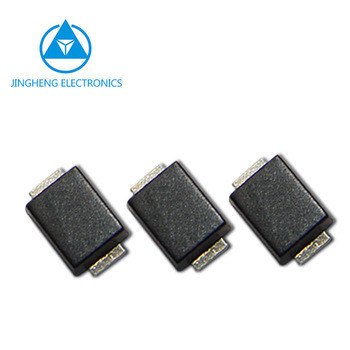

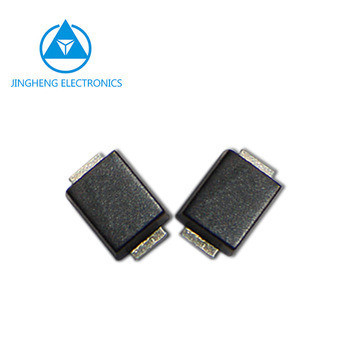

NO LIGHT 20-200V Low Vf Schottky Barrier Rectifier Diode With Ultrathin SMAF Package
Product Details:
| Place of Origin: | China |
| Certification: | ISO9001:2015, ISO14001:2015, IATF16949 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3,000 Pieces |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, PayPal |
| Supply Ability: | 10000000000piece/Year |
|
Detail Information |
|||
| Model NO.: | SS24LS | Luminous Intensity: | NO LIGHT |
|---|---|---|---|
| Color: | NO LIGHT | Structure: | Alloy |
| Material: | Silicon | CURRENT: | 2A |
| VOLTAGE: | 20-200V | PACAKGE: | SMAF |
| LOGO: | JF OR JH | Transport Package: | Tape Reel |
| Specification: | SMD | Trademark: | JF |
| Origin: | China | HS Code: | 85411000 |
| Supply Ability: | 10000000000piece/Year | Package Size: | 4.00cm * 3.50cm * 0.38cm |
| Package Gross Weight: | 0.001kg | ||
Product Description
LOW FORWARD VOLTAGE SCHOTTKY BARRIER RECTIFIER DIODES
Electronics Component
Part Number: SS24LS THRU SS220LS
Major Parameter:
| TYPE | VRRM | IF | IR(25ºC) | VF | HBM | Tj | Outline |
| V | A | uA | V | KV | ºC | ||
| SS24LS | 40 | 2 | 200 | 0.47 | 8 | 150 | SMAF |
| SS26LS | 60 | 2 | 150 | 0.52 | 8 | 150 | |
| SS210LS | 100 | 2 | 50 | 0.65 | 8 | 150 | |
| SS215LS | 150 | 2 | 20 | 0.82 | 8 | 150 | |
| SS220LS | 200 | 2 | 20 | 0.82 | 8 | 150 |
Brand: JF
Package: SMAF Plastic
Manufacturer: Jinan Jingheng Electronics Co., Ltd.
Features:
· Metal silicon junction, majority carrier conduction
· Guard ring for overvoltage protection
· Low power loss, high effciency
· High surge capability, low forward voltage drop
· Surface mount outline
Application:
Used in power supply, lighting, auto, home appliance field
