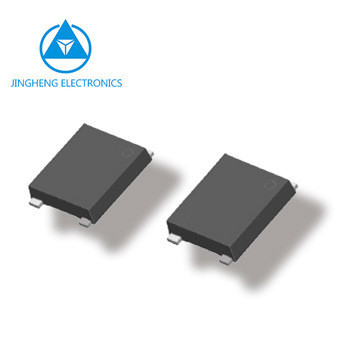

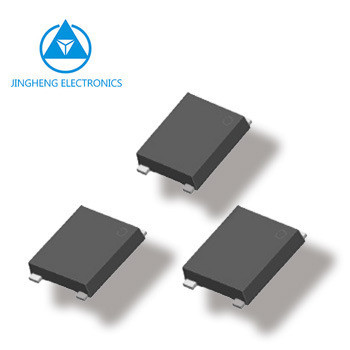

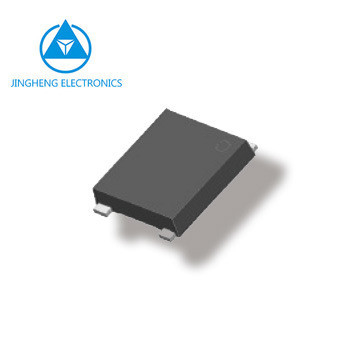

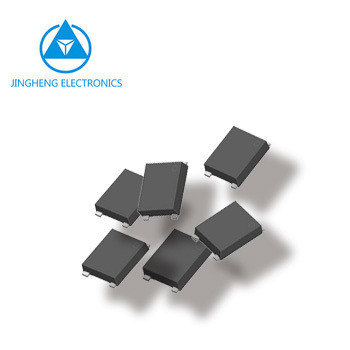

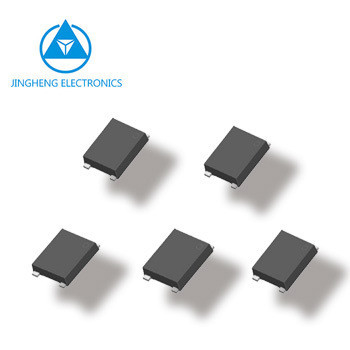

RJBF310 Fast Recovery Bridge Rectifier Diode with JBF Package None Luminance
Product Details:
| Place of Origin: | China |
| Certification: | ISO9001:2015, ISO14001:2015, IATF16949 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3,000 Pieces |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, PayPal |
| Supply Ability: | 10000000000piece/Year |
|
Detail Information |
|||
| Model NO.: | RJBF310 | Luminous Intensity: | None Luminance |
|---|---|---|---|
| Color: | None Luminance | Structure: | Alloy |
| Material: | Silicon | IF: | 3A |
| VRRM: | 1000V | Transport Package: | Carton |
| Specification: | BRIDGE RECTIFER DIODE | Trademark: | JF |
| Origin: | China | HS Code: | 85411000 |
| Supply Ability: | 10000000000piece/Year | ||
Product Description
BRIDGE RECTIFIER
Electronics Component
Electronics Component
Part Number: RJBF310
Major Parameter:
| Type | VRRM | IF | IR(25ºC) | IR(100ºC) | IR(125ºC) | VF | Trr | Outline |
| V | A | μA | μA | uA | V | nS | ||
| JBF306 | 600 | 3.0 | 10 | 500 | 1.1 | JBF | ||
| JBF308 | 800 | 3.0 | 10 | 500 | 1.1 | |||
| JBF310 | 1000 | 3.0 | 10 | 500 | 1.1 | |||
| RJBF301 | 100 | 3.0 | 5 | 70 | 250 | 1.25 | 150 | |
| RJBF302 | 200 | 3.0 | 5 | 70 | 250 | 1.25 | 150 | |
| RJBF304 | 400 | 3.0 | 5 | 70 | 250 | 1.25 | 150 | |
| RJBF306 | 600 | 3.0 | 5 | 70 | 250 | 1.25 | 250 |
Brand: JF
Package: JBF package
Manufacturer: Jinan Jingheng Electronics Co., Ltd.
Features:
· Plastic package has Underwriters Laboratory Flammability Classification 94V-0
· Glass passivated chip junction
· High surge forward current capabulity
· High temperature soldering guaranteed:260 C/10 seconds at terminals
· Component in accordance to RoHS 2011 65 EU
Application:
Used in power supply, lighting, auto, home appliance field
