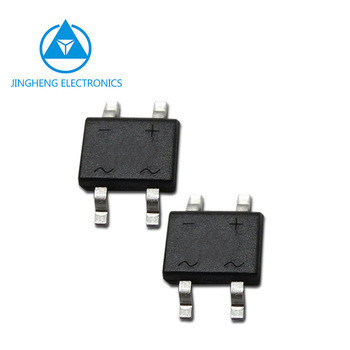

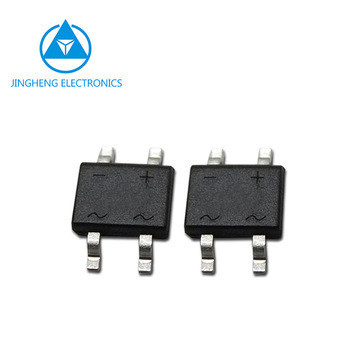

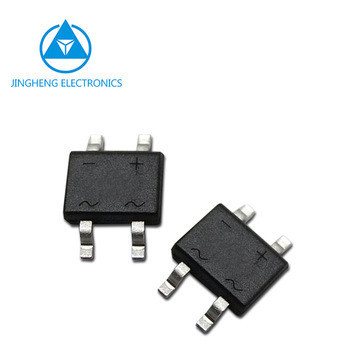

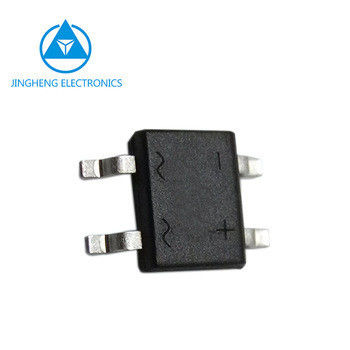

BRIDGE RECTIFER DIODE DB201S/DB202S/DB203S/DB204S/DB206S/DB207S with DBS Package
Product Details:
| Place of Origin: | China |
| Certification: | ISO9001:2015, ISO14001:2015, IATF16949 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3,000 Pieces |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, PayPal |
| Supply Ability: | 10000000000piece/Year |
|
Detail Information |
|||
| Model NO.: | DB207S | Luminous Intensity: | None Luminance |
|---|---|---|---|
| Color: | None Luminance | Structure: | Alloy |
| Material: | Silicon | Transport Package: | DBS |
| Specification: | BRIDGE RECTIFER DIODE | Trademark: | JF, JH |
| Origin: | China | HS Code: | 85411000 |
| Supply Ability: | 10000000000piece/Year | Package Size: | 20.00cm * 40.00cm * 15.00cm |
| Package Gross Weight: | 8.000kg | ||
Product Description
SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER
Electronics Component
Electronics Component
Part Number: DB201S /DB202S/DB203S/DB204S/DB206S/ DB207S
Major Parameter:
| Type | VRRM | IF | IR(25ºC) | IR(100ºC) | IR(125ºC) | VF | Trr | Outline |
| V | A | μA | μA | uA | V | nS | ||
| DB202S | 50 | 2.0 | 10 | 500 | 1.1 | DBS | ||
| DB202S | 100 | 2.0 | 10 | 500 | 1.1 | |||
| DB203S | 200 | 2.0 | 10 | 500 | 1.1 | |||
| DB204S | 400 | 2.0 | 10 | 500 | 1.1 | |||
| DB205S | 600 | 2.0 | 10 | 500 | 1.1 | |||
| DB206S | 800 | 2.0 | 10 | 500 | 1.1 | |||
| DB207S | 1000 | 2.0 | 10 | 500 | 1.1 |
Brand: JF / JH
Package: DBS package
Manufacturer: Jinan Jingheng Electronics Co., Ltd.
Features:
Plastic package has Underwriters Laboratory Flammability
Classification 94V-0
Glass passivated chip junction
Rating to 1000V PRV
Ideal for printed circuit board
High temperature soldering guaranteed:260 C/10 seconds at terminals
°
Component in accordance to RoHS 2011 65 EU
Application:
Used in power supply, lighting, auto, home appliance field
Want to Know more details about this product
