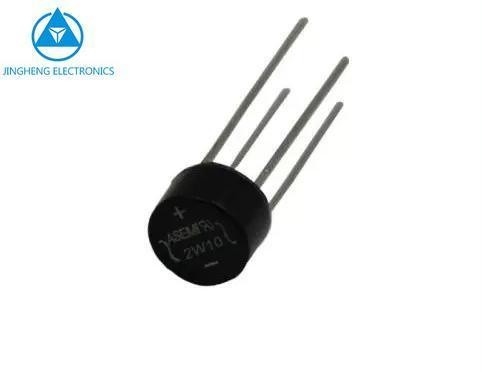

Silicon Bridge Rectifier Diode with WOB Package High Power W005/W02/W04/W06/W08/W10
Product Details:
| Place of Origin: | China |
| Certification: | ISO9001:2015, ISO14001:2015, IATF16949 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3,000 Pieces |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, PayPal |
| Supply Ability: | 10000000000piece/Year |
|
Detail Information |
|||
| Model NO.: | W08 | Structure: | GPP Chip |
|---|---|---|---|
| Material: | Silicon | Transport Package: | Wob |
| Specification: | High Power Package | Trademark: | JF, JH |
| Origin: | China | HS Code: | 85411000 |
| Supply Ability: | 10000000000piece/Year | ||
Product Description
SUPER FAST RECTIFIER DIODES
Electronics Component
Part Number: W005 /W02/W04/W06/W08/ W10
Major Parameter:
| Type | VRRM | IF | IR(25ºC) | IR(100ºC) | IR(125ºC) | VF | Trr | Outline |
| V | A | μA | μA | uA | V | nS | ||
| W01 | 100 | 1.5 | 10 | 500 | 1.0 | WOB | ||
| W02 | 200 | 1.5 | 10 | 500 | 1.0 | |||
| W04 | 400 | 1.5 | 10 | 500 | 1.0 | |||
| W06 | 600 | 1.5 | 10 | 500 | 1.0 | |||
| W08 | 800 | 1.5 | 10 | 500 | 1.0 | |||
| W10 | 1000 | 1.5 | 10 | 500 | 1.0 |
Brand: JF / JH
Package: WOB package
Manufacturer: Jinan Jingheng Electronics Co., Ltd.
Features:
Surge overload rating - 50 amperes peak
Ideal for printed circuit board
Reliable low cost construction utilizong molded plastic technique
results inexpensive product
High temperature soldering guaranteed:260 C/10 seconds at terminals
Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC
Mounting Position: Any
Application:
Used in power supply, lighting, auto, home appliance field
Want to Know more details about this product
