DB101 DF005 THRU DB107 DF10 GLASS PASSIVATED BRIDGE RECTIFIER DIODE FOR OEM CUSTOMERS
Product Details:
| Place of Origin: | China |
| Certification: | ISO9001:2015, ISO14001:2015, IATF16949 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3,000 Pieces |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, PayPal |
| Supply Ability: | 10000000000piece/Year |
|
Detail Information |
|||
| Model NO.: | DB106S | Structure: | Alloy |
|---|---|---|---|
| Material: | Silicon | Transport Package: | DB |
| Specification: | BRIDGE RECTIFER DIODE | Trademark: | JF, JH |
| Origin: | China | HS Code: | 85411000 |
| Supply Ability: | 10000000000piece/Year | Package Size: | 30.00cm * 40.00cm * 50.00cm |
| Package Gross Weight: | 8.000kg | ||
Product Description

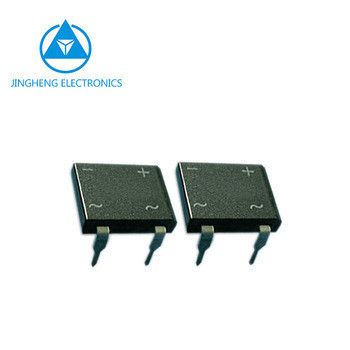

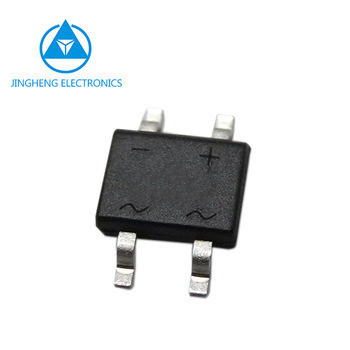

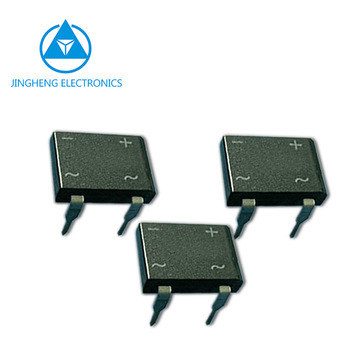

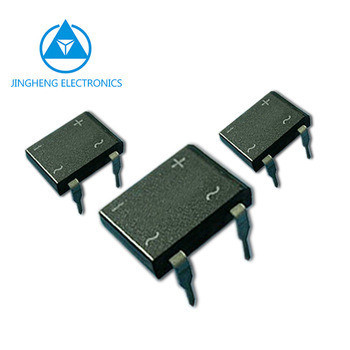

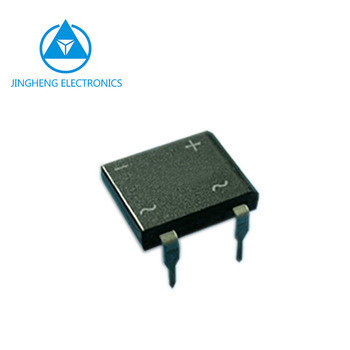

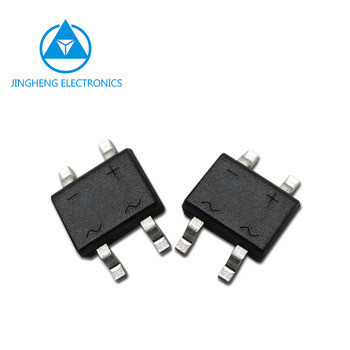

SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER
Electronics Component
Electronics Component
Part Number: DB101 THRU DB107
Major Parameter:
| Type | VRRM | IF | IR(25ºC) | IR(100ºC) | IR(125ºC) | VF | Trr | Outline |
| V | A | μA | μA | uA | V | nS | ||
| DB103(DF04) | 200 | 1.0 | 5 | 100 | 1.1 | DB | ||
| DB104(DF04) | 400 | 1.0 | 5 | 100 | 1.1 | |||
| DB105(DF06) | 600 | 1.0 | 5 | 100 | 1.1 | |||
| DB106(DF08) | 800 | 1.0 | 5 | 100 | 1.1 | |||
| DB107(DF10) | 1000 | 1.0 | 5 | 100 | 1.1 |
Brand: JF / JH
Package: DB package
Manufacturer: Jinan Jingheng Electronics Co., Ltd.
Features:
Plastic package has Underwriters Laboratory Flammability
Classification 94V-0
Glass passivated chip junction
Rating to 1000V PRV
Ideal for printed circuit board
High temperature soldering guaranteed:260 C/10 seconds at terminals
°
Component in accordance to RoHS 2011 65 EU
Application:
Used in power supply, lighting, auto, home appliance field
