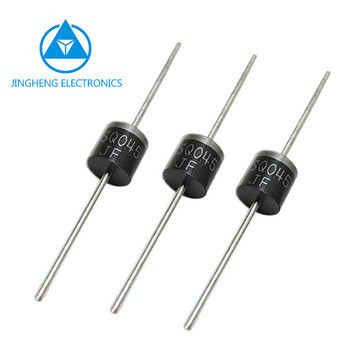

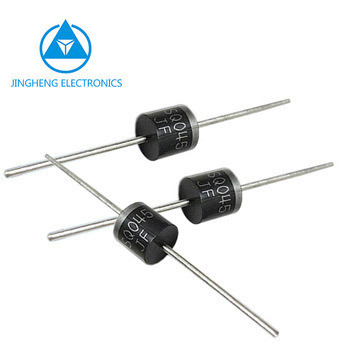

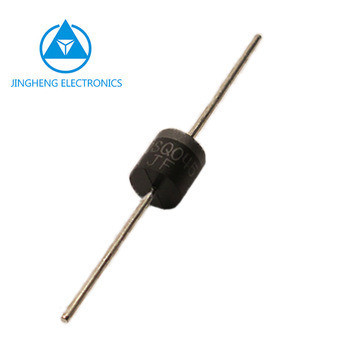

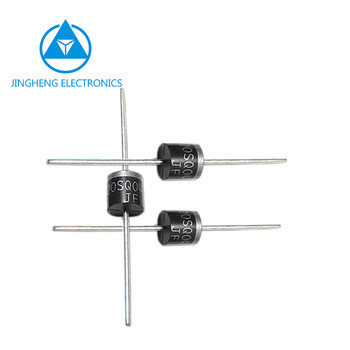

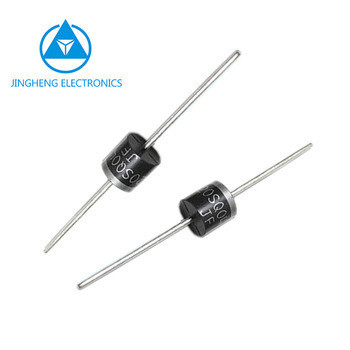

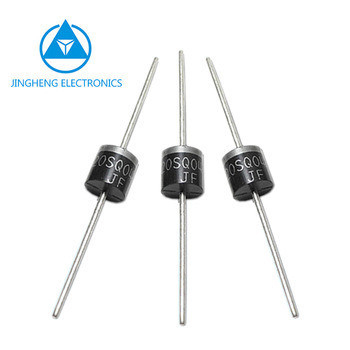

10A05/10A2/10A4/10A6/10A8/10A10 General Purpose Rectifier AXIAL DIODE with R-6 Package
Product Details:
| Place of Origin: | China |
| Certification: | ISO9001:2015, ISO14001:2015, IATF16949 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3,000 Pieces |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, PayPal |
| Supply Ability: | 10000000000piece/Year |
|
Detail Information |
|||
| Model NO.: | 10A10 | Structure: | GPP Chip |
|---|---|---|---|
| Material: | Silicon | Transport Package: | Carton |
| Specification: | AXIAL DIODE | Trademark: | JF |
| Origin: | China | HS Code: | 85411000 |
| Supply Ability: | 10000000000piece/Year | ||
Product Description
GENERAL PURPOSE RECTIFIER DIODES
MADE IN CHINA JF BRAND
Part Number: 10A05/10A2/10A4/10A6/10A8/10A10
Major Parameter: 10A
| Type | VRRM | IF | IR(25ºC) | IR(100ºC) | IR(125ºC) | VF | Outline |
| V | A | μA | uA | uA | V | ||
| 10A05/10A05G | 50 | 10 | 5.0 | 100 | 1.1 | R-6 | |
| 10A2/10A2G | 200 | 10 | 5.0 | 100 | 1.1 | ||
| 10A4/10A4G | 400 | 10 | 5.0 | 100 | 1.1 | ||
| 10A6/10A6G | 600 | 10 | 5.0 | 100 | 1.1 | ||
| 10A8/10A8G | 800 | 10 | 5.0 | 100 | 1.1 | ||
| 10A10/10A10G | 1000 | 10 | 5.0 | 100 | 1.1 |
Package:R-6 Plastic
Manufacturer: Jinan Jingheng Electronics Co., Ltd.
Features:
Construction utilizes void-free molded plastic technique
High temperature soldering
High forward current capability
High surge current capability
Application:
Used in Photovoltaic solar, power supply, lighting, auto, home appliance field
