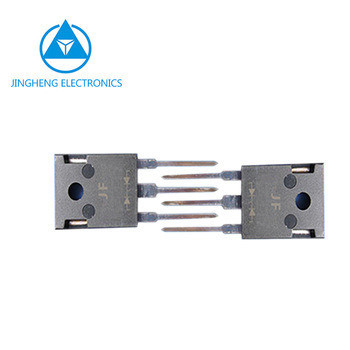

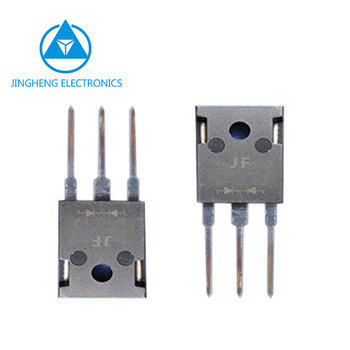

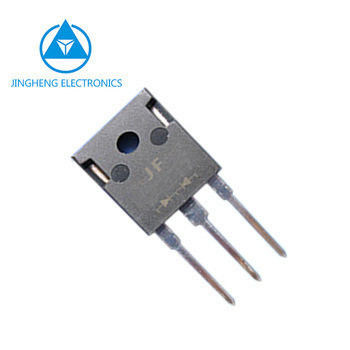

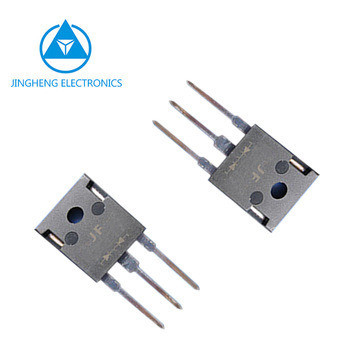

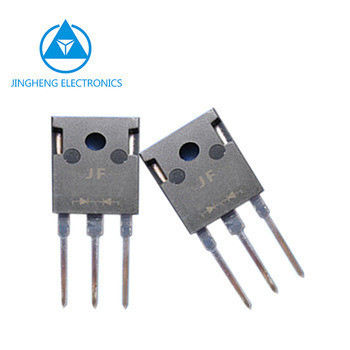

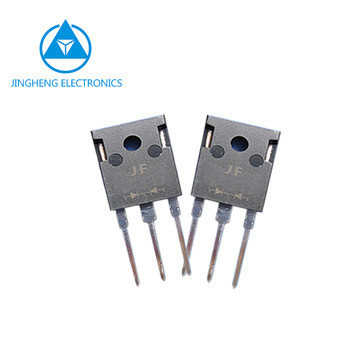

MUR30120PT 30A Super Fast Rectifier Diode with High Power Package TO-247AB/TO-3P Case
Product Details:
| Place of Origin: | China |
| Certification: | ISO9001:2015, ISO14001:2015, IATF16949 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3,000 Pieces |
|---|---|
| Price: | Negotiable |
| Delivery Time: | Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, PayPal |
| Supply Ability: | 10000000000piece/Year |
|
Detail Information |
|||
| Model NO.: | MUR30120PT | Color: | Black |
|---|---|---|---|
| Structure: | Alloy | Material: | SIC |
| Transport Package: | Tube | Specification: | High Power Package |
| Trademark: | JF | Origin: | China |
| HS Code: | 85411000 | Supply Ability: | 10000000000piece/Year |
Product Description
SUPER FAST RECTIFIER DIODES
Electronics Component
Part Number: MUR3020PT/MUR3040PT/MUR30120PT
Major Parameter:
| Type | VRRM | IF | IR(25ºC) | IR(100ºC) | IR(125ºC) | VF | Trr | Outline |
| V | A | μA | uA | uA | V | nS | ||
| MUR3020PT | 200 | 2×15 | 5.0 | 50 | 1.0 | 35 | TO-247AB | |
| MUR3040PT | 400 | 2×15 | 5.0 | 50 | 1.3 | 50 | ||
| MUR3060PT | 600 | 2×15 | 5.0 | 50 | 1.7 | 50 | ||
| MUR30120PT | 1200 | 2×15 | 5.0 | 50 | 2.4 | 60 |
Brand: JF / JH
Package: TO-247AB
Manufacturer: Jinan Jingheng Electronics Co., Ltd.
Features:
· Plastic package has Underwriters Laboratory Flammability Classification 94V-0
· Low Reverse Leakage Current
· High surge capability
· High temperature soldering guaranteed:2 0 C/10 seconds, 0.25"(6.35mm)from case
· Fast switching for high efficiency
· Low forward voltage drop
· Component in accordance to RoHS 2011 65 EU
Application:
Used in power supply, lighting, auto, home appliance field
